L R M - 10 – U s e r M a n u a l
17
Resistor sample
Resistor samples are available to facilitate the use of the LRM-10 micro-
ohmmeter in relative mode. The sample is used to take the initial measurement
and to set the reference value. Then, the instrument can be used to measure
the unit(s) under test in the relative mode. Refer to the mode section of this
manual for more details.

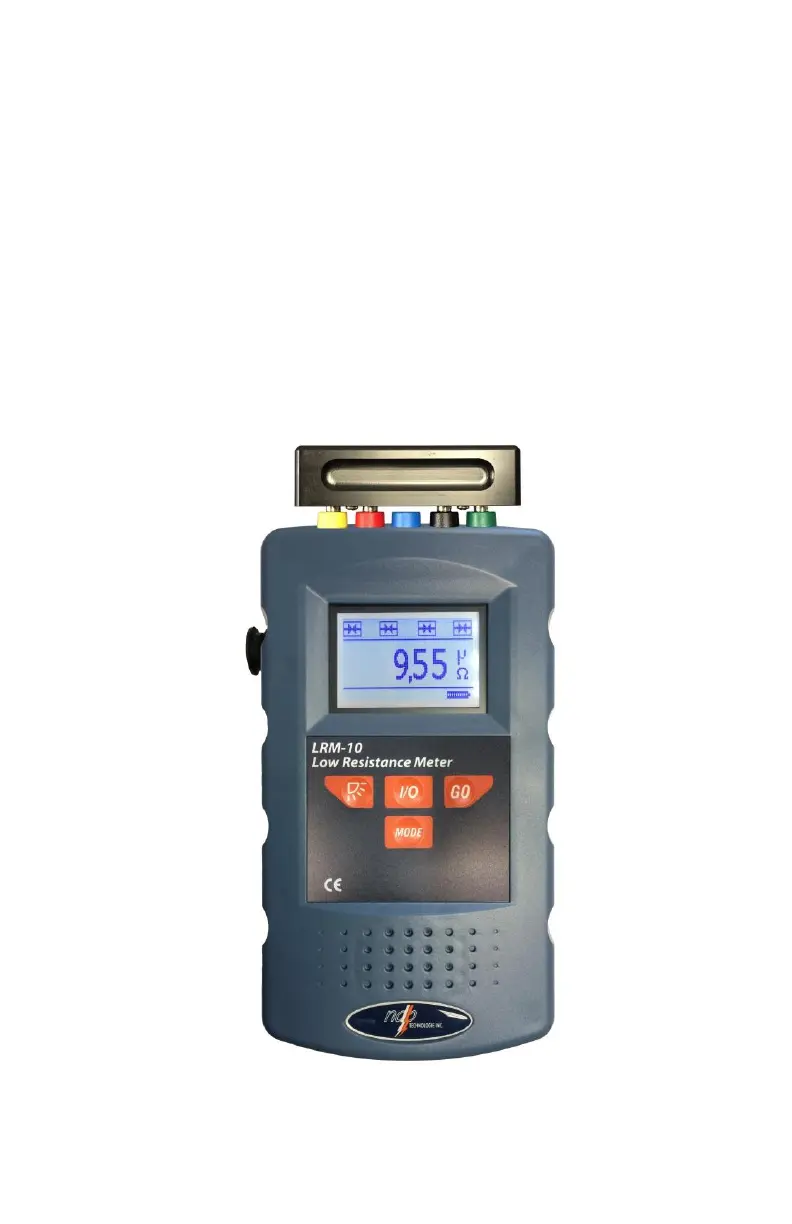

Next figure shows the DRM-4013 (9.5µ) installed on the LRM-10 micro-
ohmmeter.
Note: Resistor samples are not as precise as calibration shunt resistors.
Therefore, they should not be used to validate the instrument precision.
