13.4 Battery exchange procedure

Please make sure that your working environment is electrostatic safe to avoid damage to the used

electrostatic sensitive electronic components

 Open the front cover by removing the two main screws.

 Remove the printed circuit board (PCB)

Do not remove the sensor tube (two additional screws)

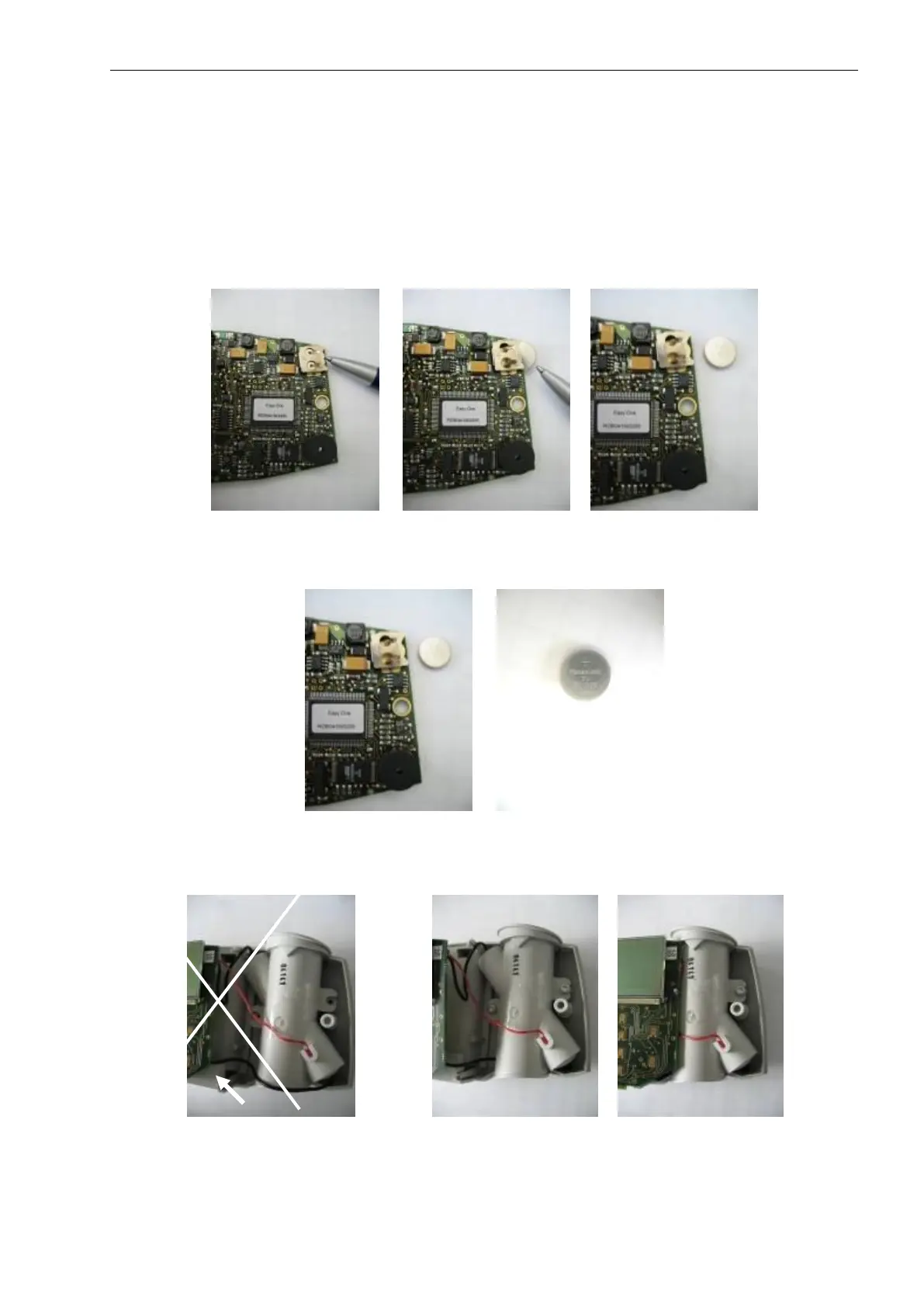

 Remove the Lithium battery (see figures below)

 Insert only 3V BR 1225 batteries which are approved by ndd Medizintechnik AG (e.g. Panasonic

3V BR 1225)

 Make sure that the + Sign form holder and battery are matched.

 Enter the new battery by preventing any short circuit (use only your fingers)

 Insert the PCB back to the EasyOne-CS case.

 Attach the front half of the case (make sure no cable will be squeezed)

False Correct
