4-10 Adding Expansion Devices
7.
Locate an empty module slot. If you need to remove one or both
modules, see “Removing a SO-DIMM Module” in the next section.
Before you install a SO-DIMM, reduce static
discharge by touching a metal part on the system unit.
8.
Install the SO-DIMM module as follows (see the following figure).
! Align the notch in the module with the key in the empty slot.
! Hold the module at a 45-degree angle and insert it into the slot.
! Firmly push the module into the socket.
! Press down on the edge of the module until the plastic retaining
clips snap into place.

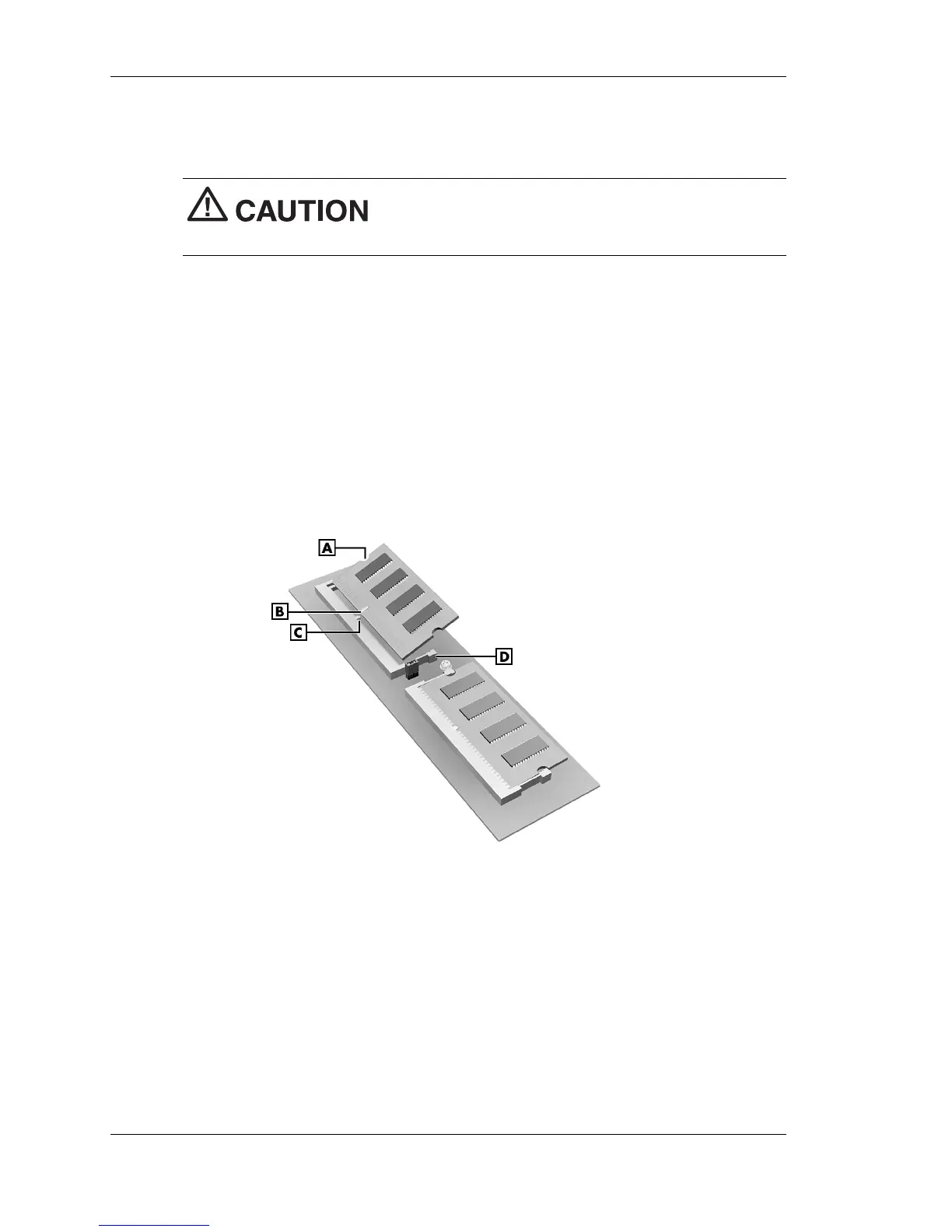

Installing the SO-DIMM module
A – SO-DIMM Module C – Socket Key
B – Notch D – Plastic Retaining Clip (2)
9.
Install the SO-DIMM module panel and retaining screw.
10.
Plug in the AC adapter power cord and press the power switch.
