© NEC Nederland B.V. 2011 Page 24 of 34 AP400 – All Types Installation Manual

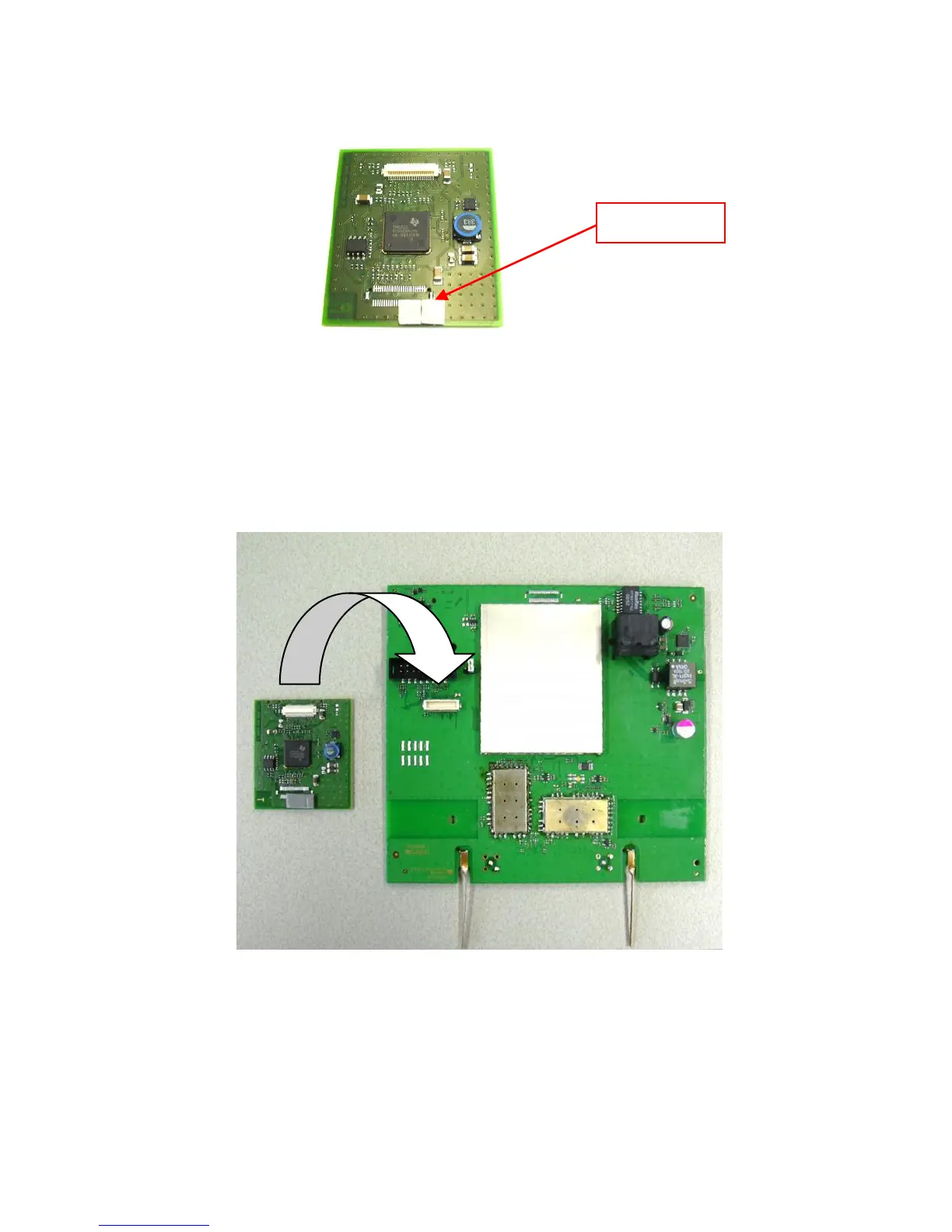

Figure 10. G.729 Daughter Board with sticky foam
6. Mount the G.729 Daughter Board onto the main PWB. Push the Daughter Board
carefully onto the main board. The white connector should fit well. Make sure that the
sticky part sticks to the Main Board.
Figure 11. Mounting the G.729 Daughter Board onto the Main board.
