3 MOUNTING THE G.729 DAUGHTERBOARD
Follow the step-by-step procedure below, to install the G.729 daughter board.
PROCEDURE: “Installing the G.729 Daughter Board”.
Actions
1. Make sure that you have the G.729 Daughter board.
2. Open the cabinet. Use steps 1 and 2 in Chapter 2.
3. Take the PCB out of the cabinet.
Note: Mind the light conductor for the LEDs. It can drop off!

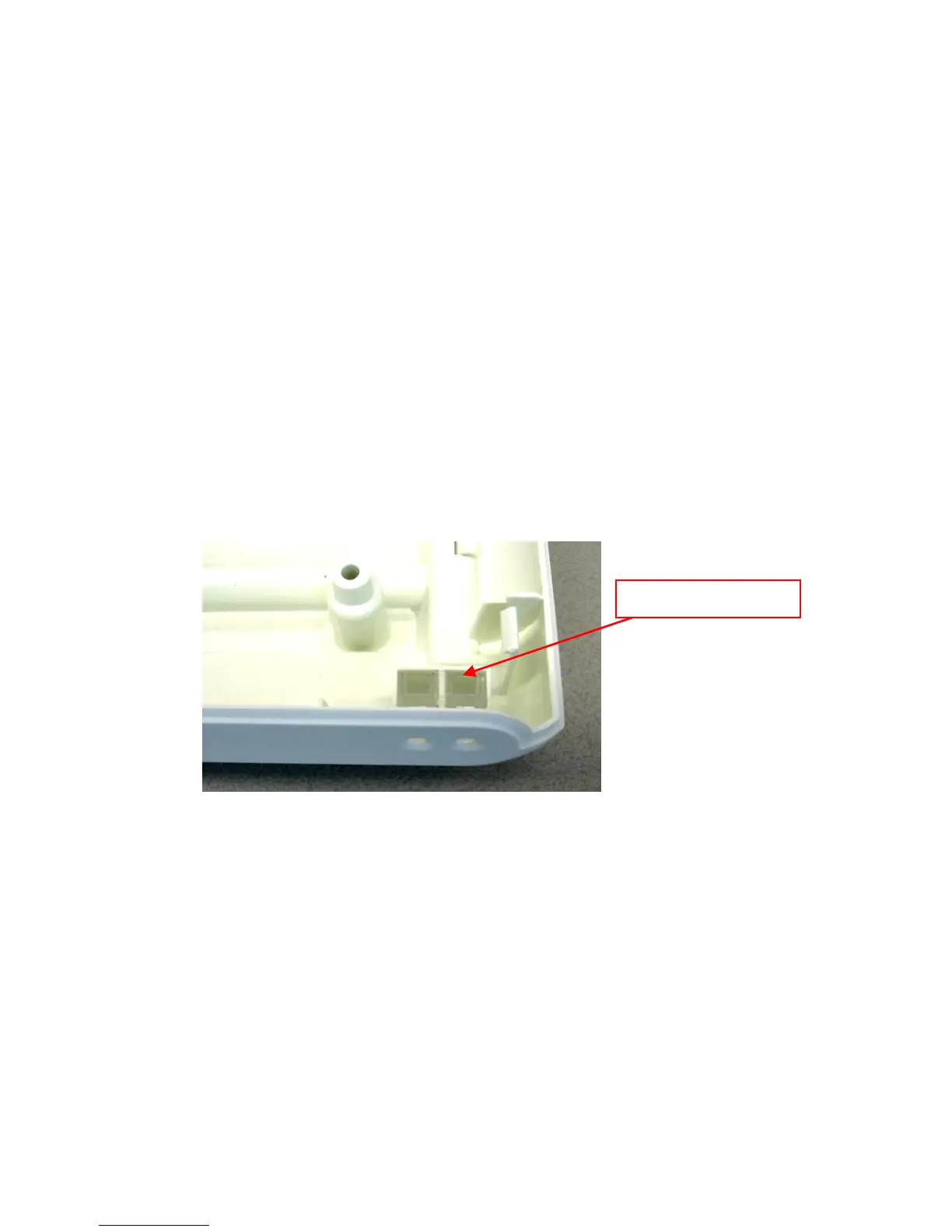

Figure 9. Light conductor for LEDs
4. Now you should have the AP400 PWB and the G.729 Daughter Board as separate
items.
5. Remove the protection foil from the sticky part on the G.729 Daughter Board.
