AP400 – All Types Installation Manual Page 27 of 34 © NEC Nederland B.V. 2011
2. Mount the mounting plate to the wall or ceiling, using appropriate fitings.

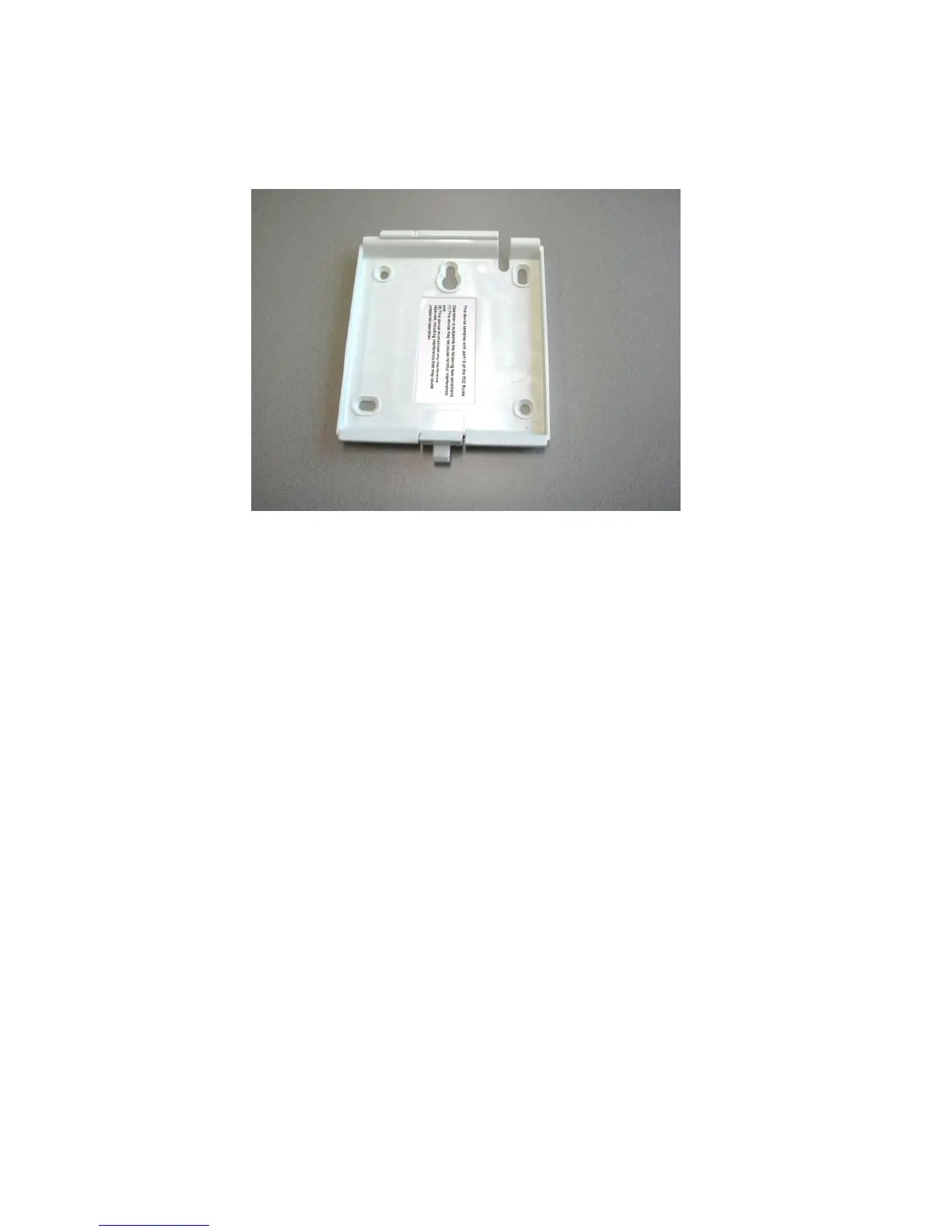

Figure 13. Mounting plate..
3. Make sure that the Ethernet cable to the cabinet has the correct length.
4. If necessary, mount the RJ45 connector to the cable using the tool for mounting an
RJ45 connector plug to a Category 5 or Category 6 cable.
