NEC E328 - Controlling the Monitor Via LAN

English - 51


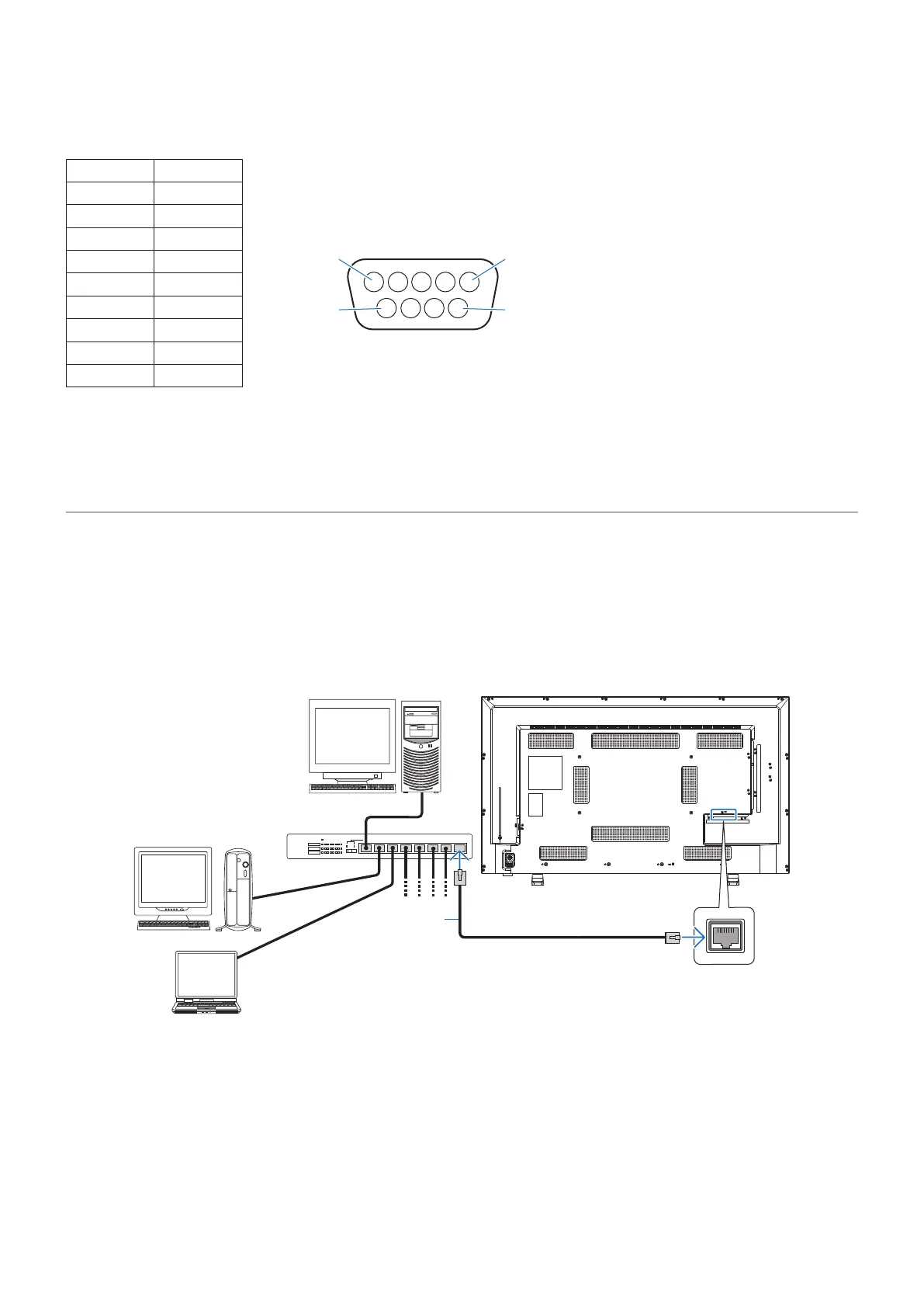

RS-232C input / output
Pin No. Name
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
This monitor uses RXD, TXD and GND lines for RS-232C control.

The monitor is equipped with a LAN port (RJ-45). Connecting the monitor to a network allows you to receive email notications
from the monitor and control the monitor from a computer via a network. To use a LAN connection, you are required to assign an
IP address to the monitor (page 77).
The monitor will obtain an IP address automatically when connected to a DHCP network.
 Set [Control Interface] under [Control Settings] to [LAN] (page 77).

Server
Hub
 NOTE: Use a category 5 or higher LAN cable.
LAN cable
(commercially available)
D-sub 9-pin (monitor side)
1
6
5
9
