E-58
APPENDIX

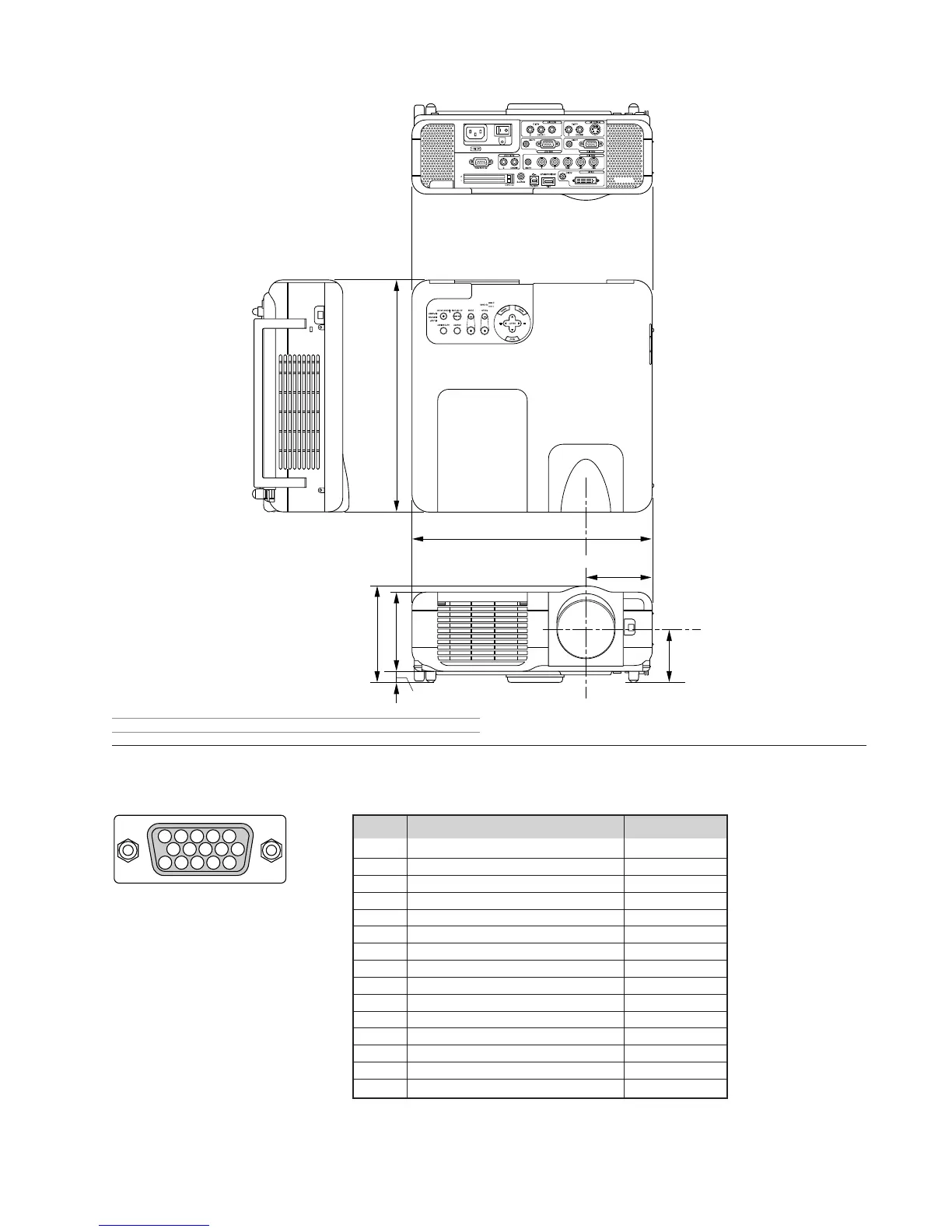

Cabinet Dimensions
Unit = mm (inch)
Mini D-Sub 15 Pin Connector
Pin Assignments of D-Sub RGB Input Connector
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 SCART Sync Sync
12 Bi-directional DATA (SDA)*
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock*
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
* RGB 1 Input only
51423
10
1112131415
6978
334(13.15")
16(0.63")
92.2(3.63")
323(12.7")
139(5.47") 115(4.53")
78.6(3.1")
Lens center
Lens center
NOTE: The DVI connector is not available on MT860.
