NEC MultiSync LCD1550V Service Manual

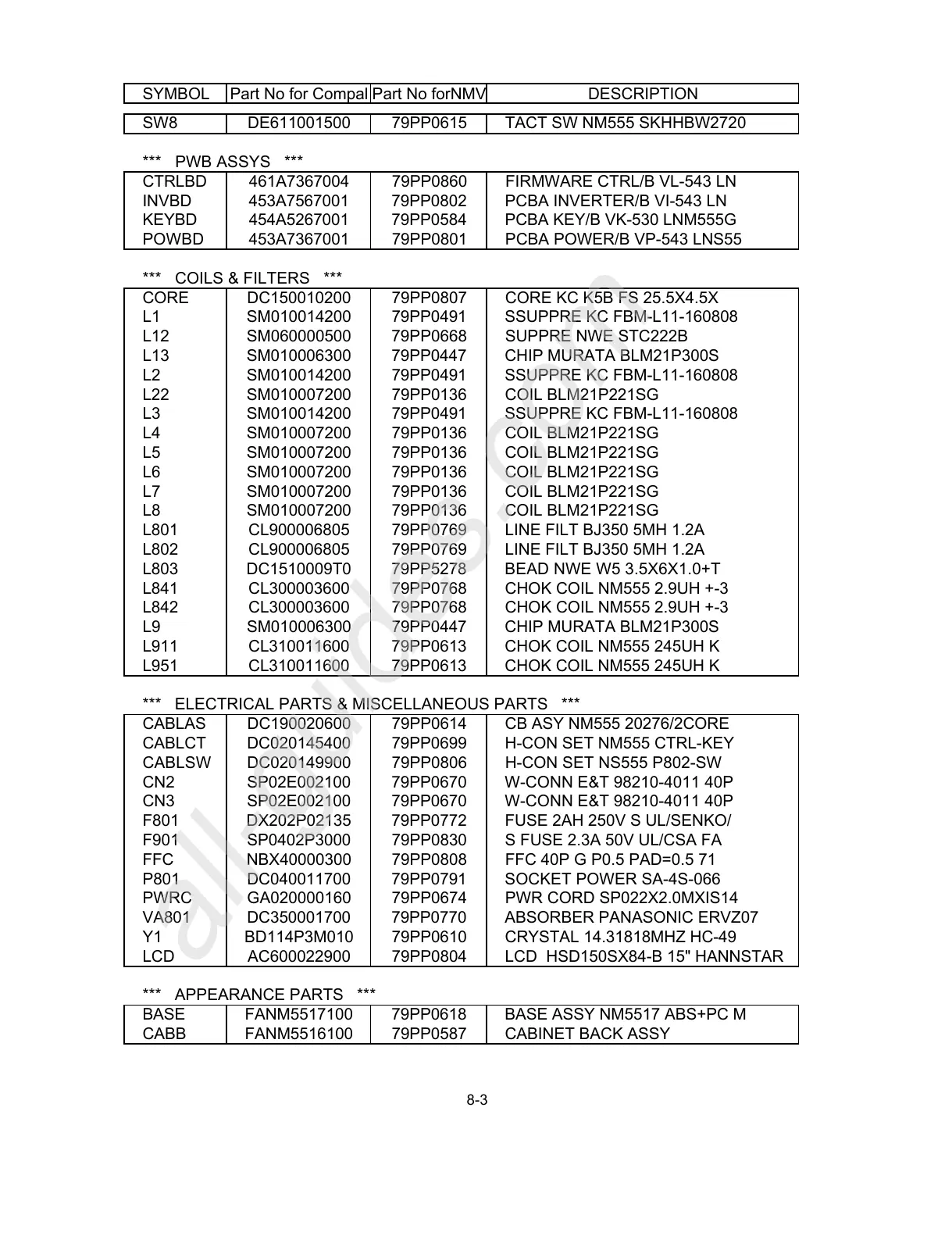

SYMBOL Part No for Com
p
al Part No forNM
V
DESCRIPTION
SW8 DE611001500 79PP0615 TACT SW NM555 SKHHBW2720
*** PWB ASSYS ***
CTRLBD 461A7367004 79PP0860 FIRMWARE CTRL/B VL-543 LN
INVBD 453A7567001 79PP0802 PCBA INVERTER/B VI-543 LN
KEYBD 454A5267001 79PP0584 PCBA KEY/B VK-530 LNM555G
POWBD 453A7367001 79PP0801 PCBA POWER/B VP-543 LNS55
*** COILS & FILTERS ***
CORE DC150010200 79PP0807 CORE KC K5B FS 25.5X4.5X
L1 SM010014200 79PP0491 SSUPPRE KC FBM-L11-160808
L12 SM060000500 79PP0668 SUPPRE NWE STC222B
L13 SM010006300 79PP0447 CHIP MURATA BLM21P300S
L2 SM010014200 79PP0491 SSUPPRE KC FBM-L11-160808
L22 SM010007200 79PP0136 COIL BLM21P221SG
L3 SM010014200 79PP0491 SSUPPRE KC FBM-L11-160808
L4 SM010007200 79PP0136 COIL BLM21P221SG
L5 SM010007200 79PP0136 COIL BLM21P221SG
L6 SM010007200 79PP0136 COIL BLM21P221SG
L7 SM010007200 79PP0136 COIL BLM21P221SG
L8 SM010007200 79PP0136 COIL BLM21P221SG
L801 CL900006805 79PP0769 LINE FILT BJ350 5MH 1.2A
L802 CL900006805 79PP0769 LINE FILT BJ350 5MH 1.2A
L803 DC1510009T0 79PP5278 BEAD NWE W5 3.5X6X1.0+T
L841 CL300003600 79PP0768 CHOK COIL NM555 2.9UH +-3
L842 CL300003600 79PP0768 CHOK COIL NM555 2.9UH +-3
L9 SM010006300 79PP0447 CHIP MURATA BLM21P300S
L911 CL310011600 79PP0613 CHOK COIL NM555 245UH K
L951 CL310011600 79PP0613 CHOK COIL NM555 245UH K
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CABLAS DC190020600 79PP0614 CB ASY NM555 20276/2CORE
CABLCT DC020145400 79PP0699 H-CON SET NM555 CTRL-KEY
CABLSW DC020149900 79PP0806 H-CON SET NS555 P802-SW
CN2 SP02E002100 79PP0670 W-CONN E&T 98210-4011 40P
CN3 SP02E002100 79PP0670 W-CONN E&T 98210-4011 40P
F801 DX202P02135 79PP0772 FUSE 2AH 250V S UL/SENKO/
F901 SP0402P3000 79PP0830 S FUSE 2.3A 50V UL/CSA FA
FFC NBX40000300 79PP0808 FFC 40P G P0.5 PAD=0.5 71
P801 DC040011700 79PP0791 SOCKET POWER SA-4S-066
PWRC GA020000160 79PP0674 PWR CORD SP022X2.0MXIS14
VA801 DC350001700 79PP0770 ABSORBER PANASONIC ERVZ07
Y1 BD114P3M010 79PP0610 CRYSTAL 14.31818MHZ HC-49
LCD AC600022900 79PP0804 LCD HSD150SX84-B 15" HANNSTAR
*** APPEARANCE PARTS ***
BASE FANM5517100 79PP0618 BASE ASSY NM5517 ABS+PC M
CABB FANM5516100 79PP0587 CABINET BACK ASSY
8-3
