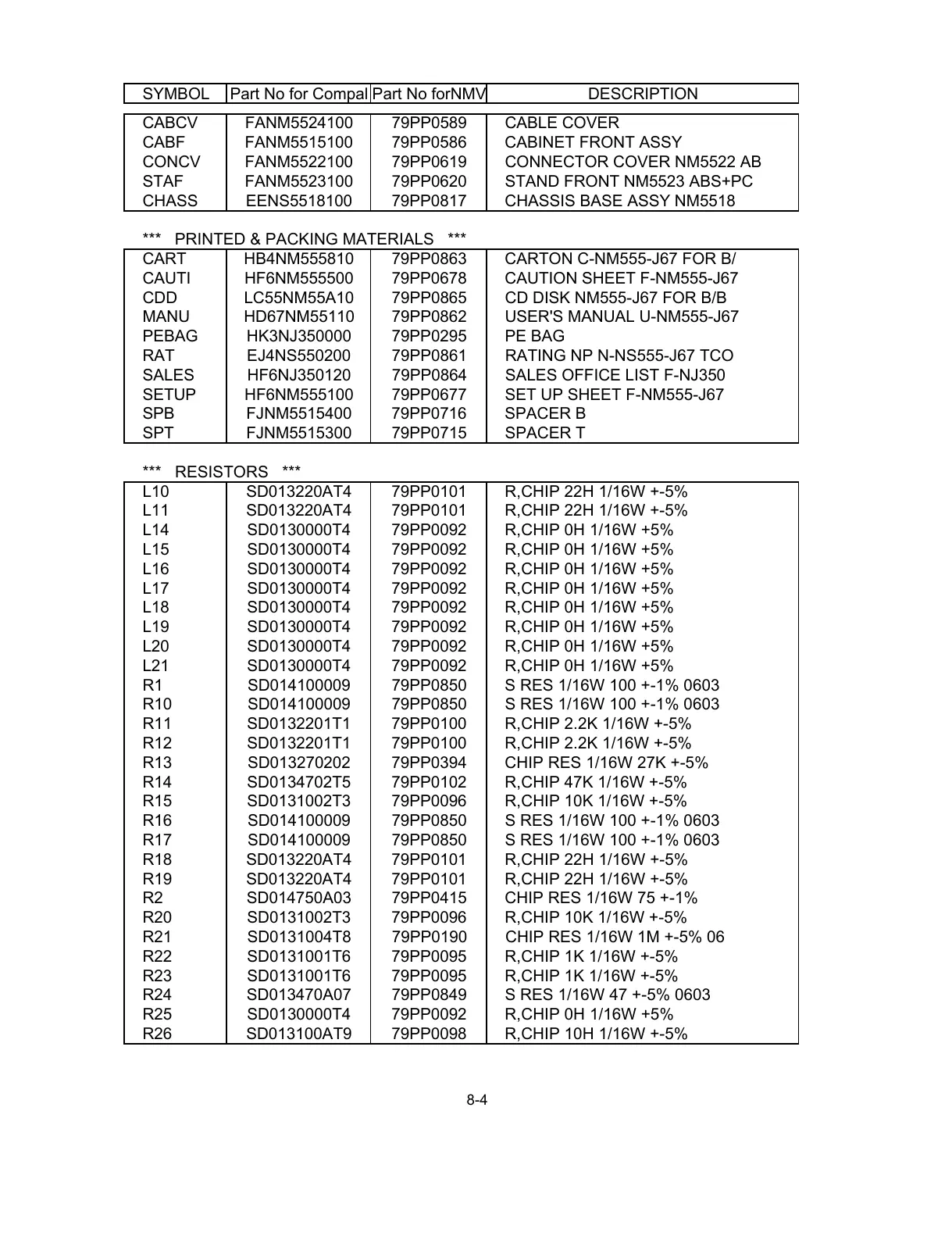

NEC MultiSync LCD1550V Service Manual

SYMBOL Part No for Com
p
al Part No forNM
V
DESCRIPTION
CABCV FANM5524100 79PP0589 CABLE COVER
CABF FANM5515100 79PP0586 CABINET FRONT ASSY
CONCV FANM5522100 79PP0619 CONNECTOR COVER NM5522 AB
STAF FANM5523100 79PP0620 STAND FRONT NM5523 ABS+PC
CHASS EENS5518100 79PP0817 CHASSIS BASE ASSY NM5518
*** PRINTED & PACKING MATERIALS ***
CART HB4NM555810 79PP0863 CARTON C-NM555-J67 FOR B/
CAUTI HF6NM555500 79PP0678 CAUTION SHEET F-NM555-J67
CDD LC55NM55A10 79PP0865 CD DISK NM555-J67 FOR B/B
MANU HD67NM55110 79PP0862 USER'S MANUAL U-NM555-J67
PEBAG HK3NJ350000 79PP0295 PE BAG
RAT EJ4NS550200 79PP0861 RATING NP N-NS555-J67 TCO
SALES HF6NJ350120 79PP0864 SALES OFFICE LIST F-NJ350
SETUP HF6NM555100 79PP0677 SET UP SHEET F-NM555-J67
SPB FJNM5515400 79PP0716 SPACER B
SPT FJNM5515300 79PP0715 SPACER T
*** RESISTORS ***
L10 SD013220AT4 79PP0101 R,CHIP 22H 1/16W +-5%
L11 SD013220AT4 79PP0101 R,CHIP 22H 1/16W +-5%
L14 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L15 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L16 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L17 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L18 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L19 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L20 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
L21 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
R1 SD014100009 79PP0850 S RES 1/16W 100 +-1% 0603
R10 SD014100009 79PP0850 S RES 1/16W 100 +-1% 0603
R11 SD0132201T1 79PP0100 R,CHIP 2.2K 1/16W +-5%
R12 SD0132201T1 79PP0100 R,CHIP 2.2K 1/16W +-5%
R13 SD013270202 79PP0394 CHIP RES 1/16W 27K +-5%
R14 SD0134702T5 79PP0102 R,CHIP 47K 1/16W +-5%
R15 SD0131002T3 79PP0096 R,CHIP 10K 1/16W +-5%
R16 SD014100009 79PP0850 S RES 1/16W 100 +-1% 0603
R17 SD014100009 79PP0850 S RES 1/16W 100 +-1% 0603
R18 SD013220AT4 79PP0101 R,CHIP 22H 1/16W +-5%
R19 SD013220AT4 79PP0101 R,CHIP 22H 1/16W +-5%
R2 SD014750A03 79PP0415 CHIP RES 1/16W 75 +-1%
R20 SD0131002T3 79PP0096 R,CHIP 10K 1/16W +-5%
R21 SD0131004T8 79PP0190 CHIP RES 1/16W 1M +-5% 06
R22 SD0131001T6 79PP0095 R,CHIP 1K 1/16W +-5%
R23 SD0131001T6 79PP0095 R,CHIP 1K 1/16W +-5%
R24 SD013470A07 79PP0849 S RES 1/16W 47 +-5% 0603
R25 SD0130000T4 79PP0092 R,CHIP 0H 1/16W +5%
R26 SD013100AT9 79PP0098 R,CHIP 10H 1/16W +-5%
8-4
