CONNECTIONS
Cautions before connecting

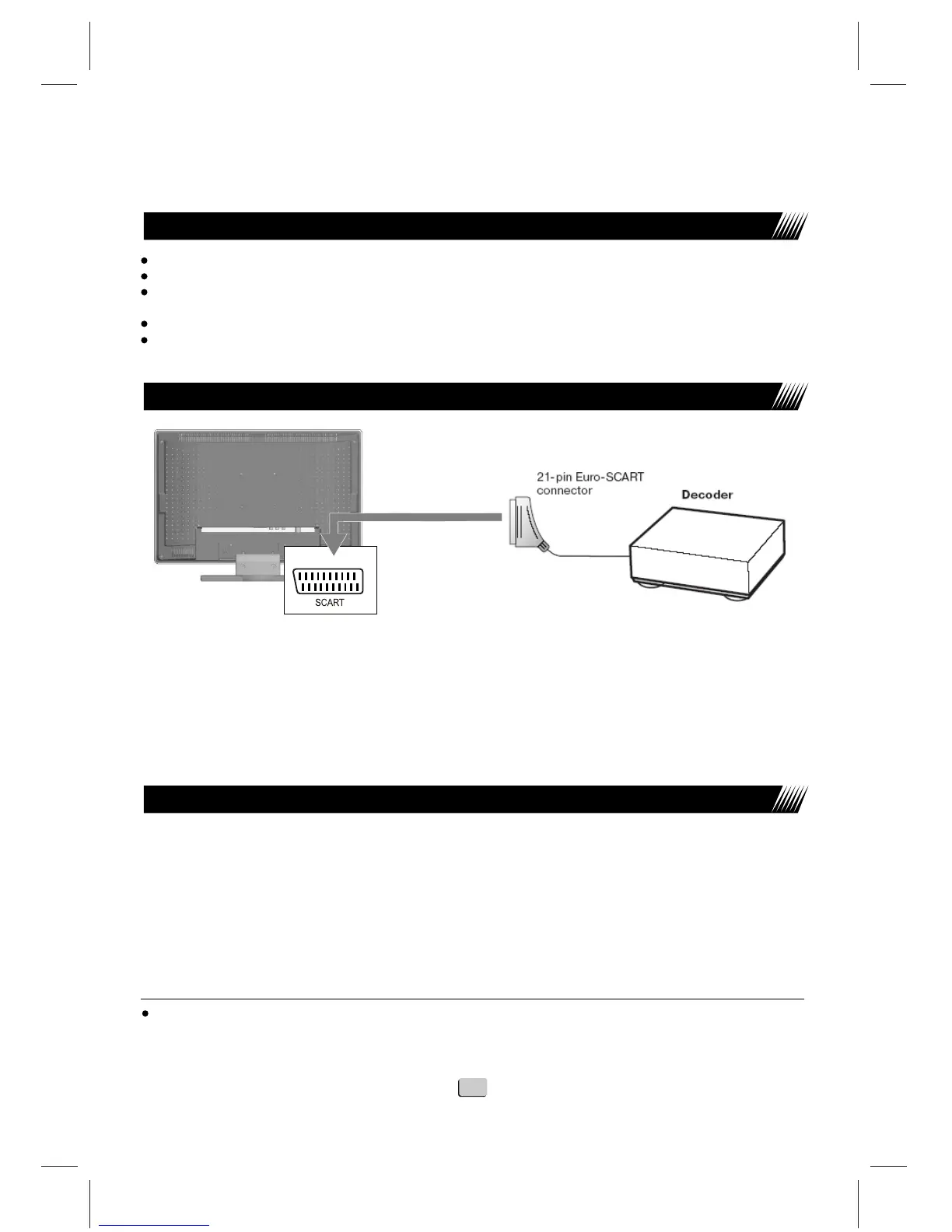

Connect a Decoder
Carefully check the terminals for position and type before making any connections.
The illustration of the external equipment may be different depending on your model.
Loose connectors can result in image or color problems. Make sure that all connectors are securely
inserted into their terminals.
Refer to the operating manual of the external device as well.
When connecting an external device, turn the power off to avoid any problems.
How to connect:
Connect the Scart Cable between the unit and the decoder.
To watch Decoder
1. Turn on your LCD TV. Press INPUT button on the
remote control.
2. Press INPUT to select SCART .
3. Turn on your decoder.
The unit receives CVBS (VIDEO) signal and RGB signal from SCART interface and is able to identify
the signal format automatically. The unit chooses the RGB signal prior to the CVBS (VIDEO) signal.
Note:
Specification of SCART interface
1 Audio output B (right)
2 Audio input B (right)
3 Audio output A (left)
4 Ground (audio)
5 Ground (blue)
6 Audio input A (left)
7 Blue input
8 Function select (AV control)
9 Ground (green)
10 Comms data 2
11 Green input
12 Comms data 1
13 Ground (red)
14 Ground (blanking)
15 Red input
16 RGB switching control
17 Ground (CVBS input & output)
18 Ground (RGB switching control)
19 CVBS output
20 CVBS input
21 Common ground (shield)
