Mounting the Projector
Suspend the Projector from the Fixed Ceiling Part

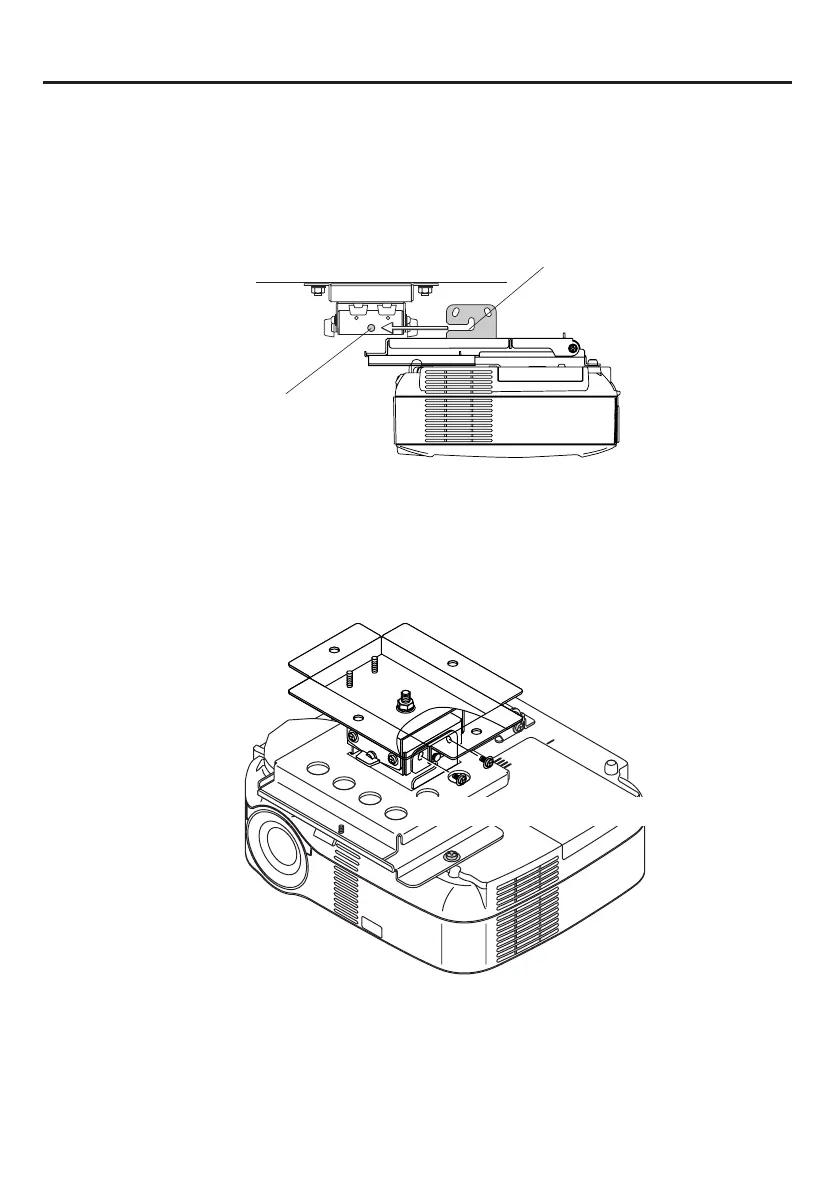

Slide the slotted part of the projector mounting adapter over the pin of the fixed ceiling
part and push all the way to the back.
The projector is temporarily suspended in this condition and attention must be paid so
that the unit does not fall since it is not fixed in place.
Slotted part of mounting adapter
Pin of fixed ceiling part
Temporarily Fasten the Projector Mounting Adapter
Temporarily fasten by partially tightening the four supplied (M5) screws.
Tighten firmly after completing the screen projection angle adjustment.
Temporarily fasten the other side too.
