Installation
Max. 30.3"(76.9cm) 75.7"(192.3cm) 126.2"(320.5cm) 176.7"(448.7cm) 227.1"(576.9cm) 302.8"(769.2cm)
Min. 27.5"(69.8cm) 68.7"(174.4cm) 114.4"(290.7cm) 160.2"(407.0cm) 206.0"(523.3cm) 274.7"(697.7cm)
Max.(WxH)
24.2" x 18.2"
(61.5 x 46.2cm)
60.8" x 45.4"
(154.4 x 115.3cm)
101.0" x 75.7"
(256.5 x 192.3cm)
141.3" x 106.0"
(358.9 x 269.2cm)
181.7" x 136.3"
(461.5 x 346.2cm)
242.3" x 181.7"
(615.4 x 461.5cm)
Min.(WxH)
22.0" x 16.5"
(55.9 x 41.9cm)
54.9" x 41.2"
(139.4 x 104.6cm)
91.6" x 68.7"
(232.7 x 174.5cm)
128.2" x 96.1"
(325.6 x 244.1cm)
164.8" x 123.6"
(418.6 x 313.9cm)
219.7" x 164.8"
(558.0 x 418.6cm)
3.9'(1.2m) 9.8'(3.0m) 16.4'(5.0m) 23.0'(7.0m) 29.5'(9.0m) 39.4'(12.0m)
68.7"
(174.4cm)
114.4"
(290.7cm)
160.2"
(407.0cm)
206.0"
(523.3cm)
274.7"
(697.7cm)
30.3"
(76.9cm)
75.7"
(192.3cm)
126.2"
(320.5cm)
176.7"
(448.7cm)
227.1"
(576.9cm)
302.8"
(769.2cm)
3.9'
39.4'
29.5'
23.0'
16.4'
9.8'
(1.2m)
(12.0m)
(9.0m)
(7.0m)
(5.0m)
(3.0m)
27.5"
(69.8cm)
Screen
(Diagonal)
Screen Size
Distance
Diagonal
Focus Ring
Zoom Ring

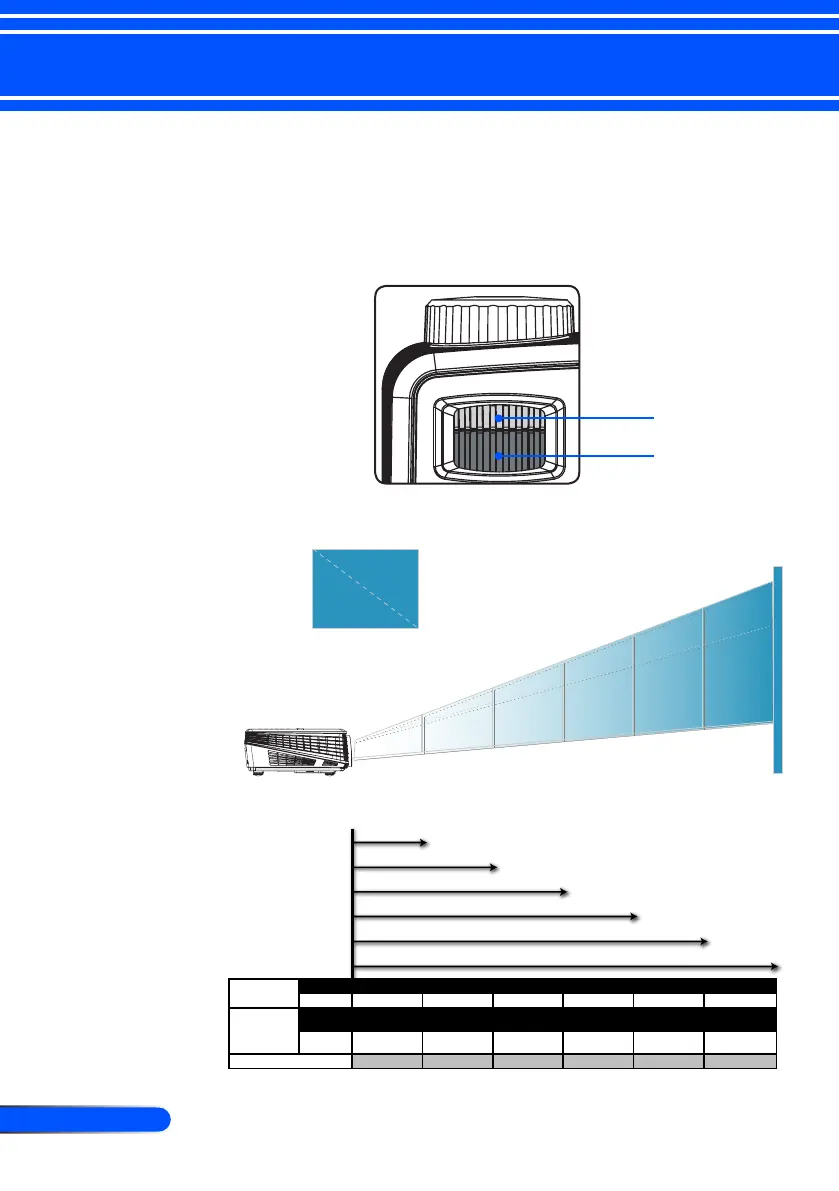

Adjusting the Projector Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the im-
age, rotate the focus ring until the image is clear. The projector
will focus at distances from 3.9 to 39.4 feet (1.2 to 12.0 meters)
with mechanical travel.
Adjusting Projection Image Size
This graph is for user’s reference only.
