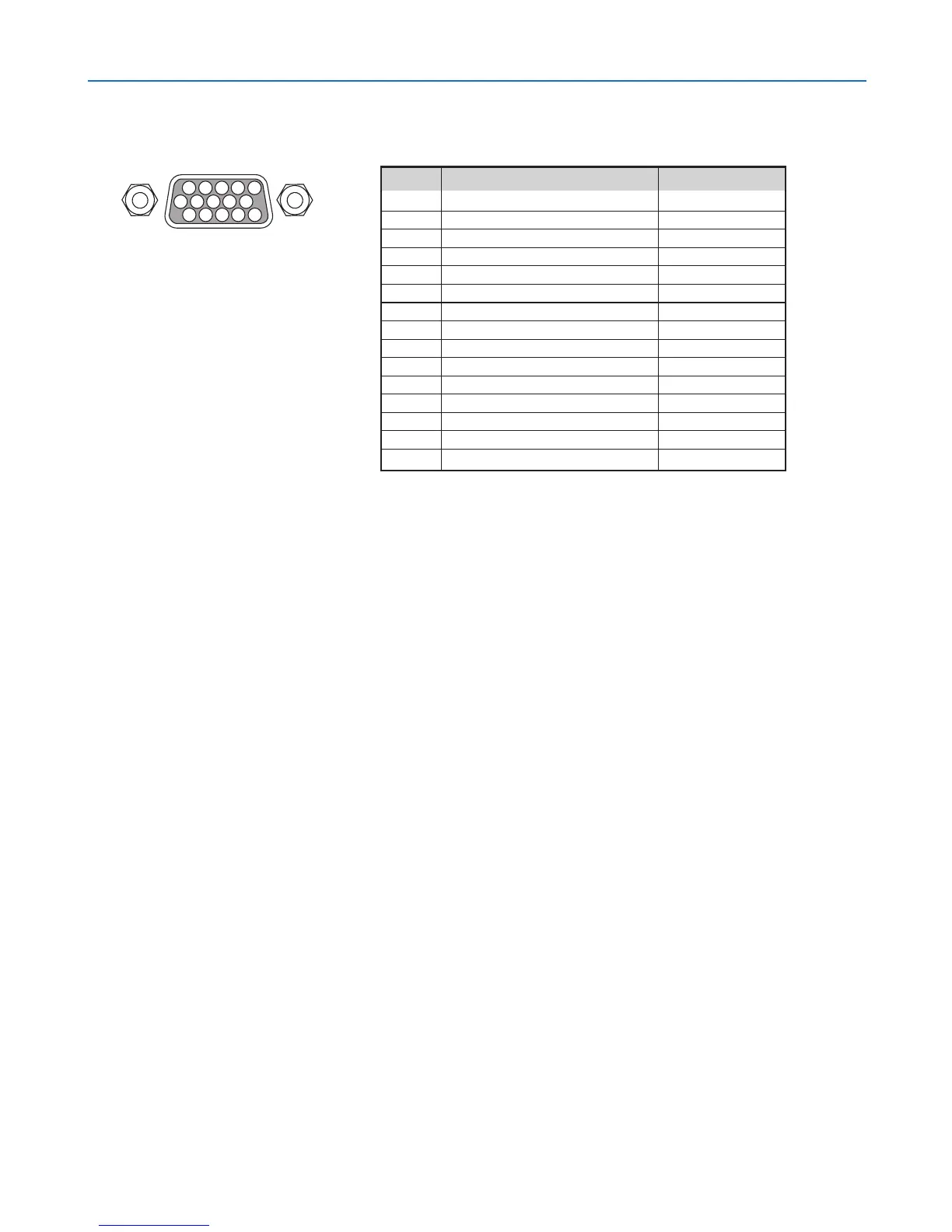

Mini D-Sub 15 Pin Connector

➍

Pin Assignments of D-Sub COMPUTER Input Connector

Signal Level

Video signal : 0.7Vp-p (Analog)

Sync signal : TTL level

11 1512 1413

54321

10798

7. Appendix

Pin No. RGB Signal (Analog) YCbCr Signal

1 Red Cr

2 Green or Sync on Green Y

3 Blue Cb

4 Ground

5 Ground

6 Red Ground Cr Ground

7 Green Ground Y Ground

8 Blue Ground Cb Ground

9 No Connection

10 Sync Signal Ground

11 No Connection

12 Bi-directional DATA (SDA)

Horizontal Sync or Composite Sync

14 Vertical Sync

15 Data Clock
