Notes: 1.
The specifications for A8 through A15 apply to IO/H, SO, and S1 except
that
T4 through T6 are undefined.
2 Timings are all measured on condition that VOL = 0.8 V, VOH = 2.2 V. and
input reference voltage
is 1.5 V.

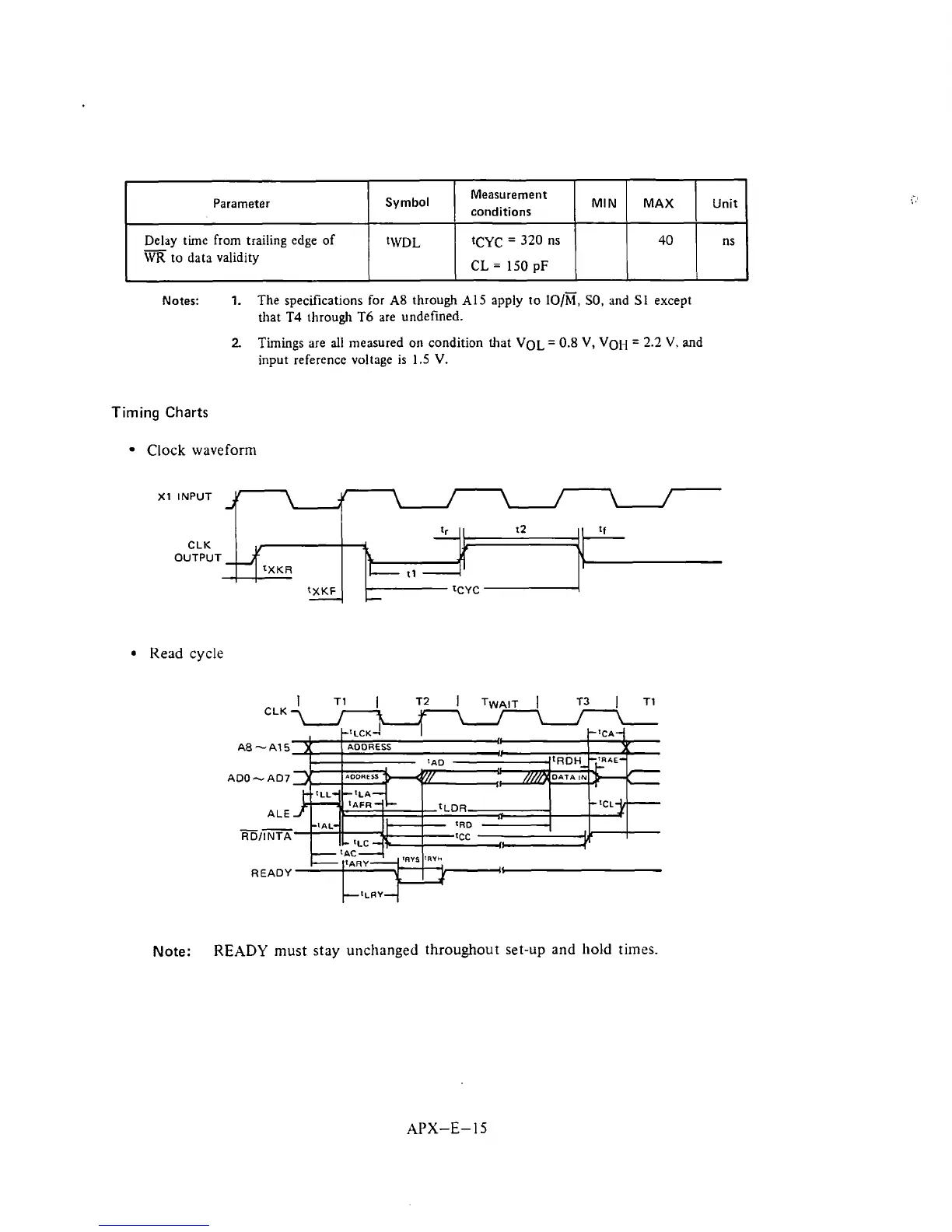

Timing Charts
MAX
40
Parameter
Delay time from trailing edge of
-
WR to data validity
Clock waveform
Unit
ns
Measurement
conditions
tcyc = 320 ns
CL = 150 pF
Symbol
tWDL
X1 INPUT
u
MIN
OUTPUT
"" #-
Read cycle
CLK
1 TI I 12 I Tw~1-r I 13 I TI
READY
Note:
READY must stay unchanged throughout set-up and hold tirnes.
APX-E- 15
