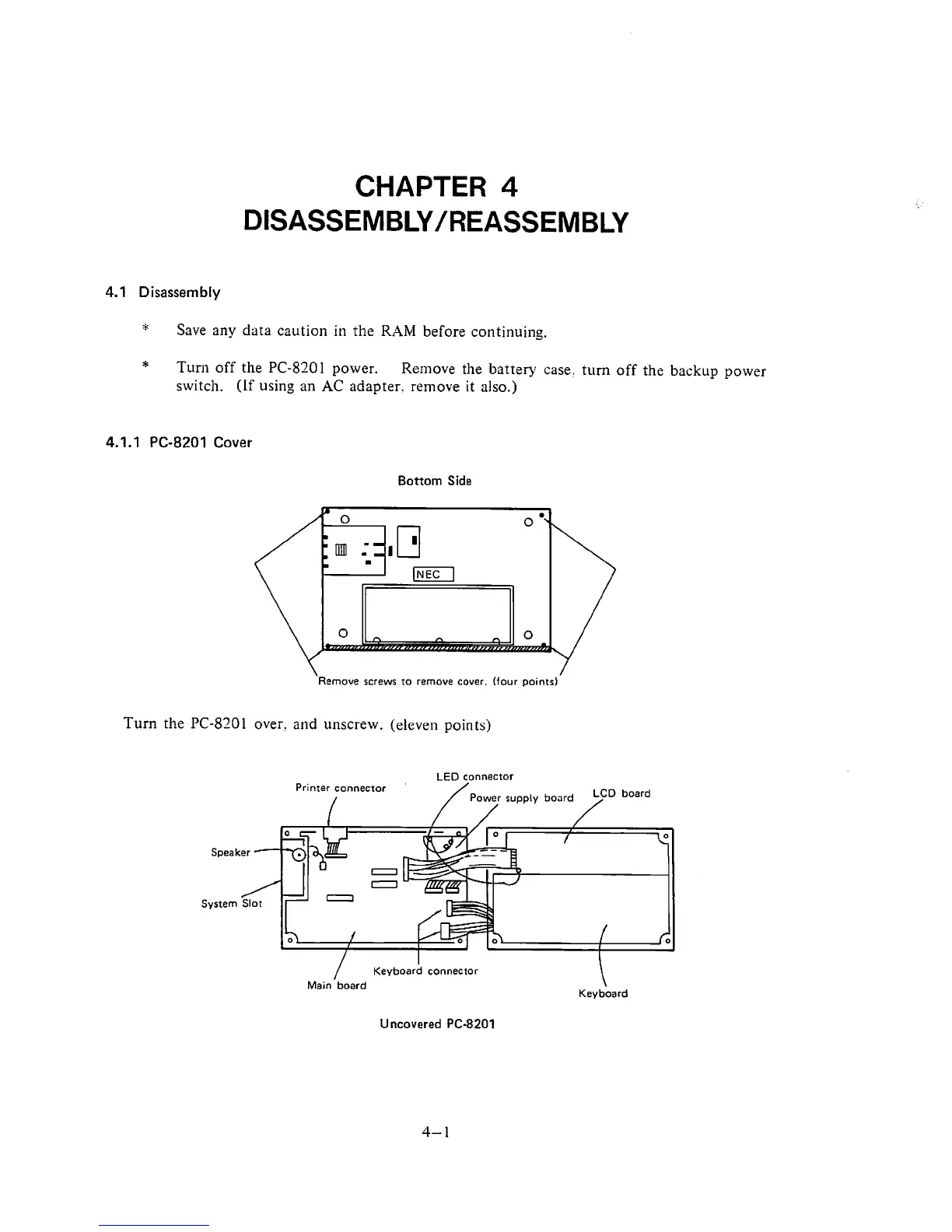

CHAPTER 4
DlSASSEMBLY/REASSEMBLY
4.1 Disassembly
'Vave any data caution in the RAM before continuing.
*
Turn off the PC-8201 power.
Remove the battery case, turn off the backup power
switch.
(If using an AC adapter, remove it also.)
4.1.1 PC-8201 Cover
Bottom Side
'~emove screws to remove cover. (four points)
Turn the PC-8201 over. and unscrew. (eleven points)
LED connector
Printer connector
Power supply board
//
/ ~eyboard connector
Main board
\
Kevboard
Uncovered PC-8201
