NEC PC-8201 - LCD Board; Keyboard; Power Supply Board

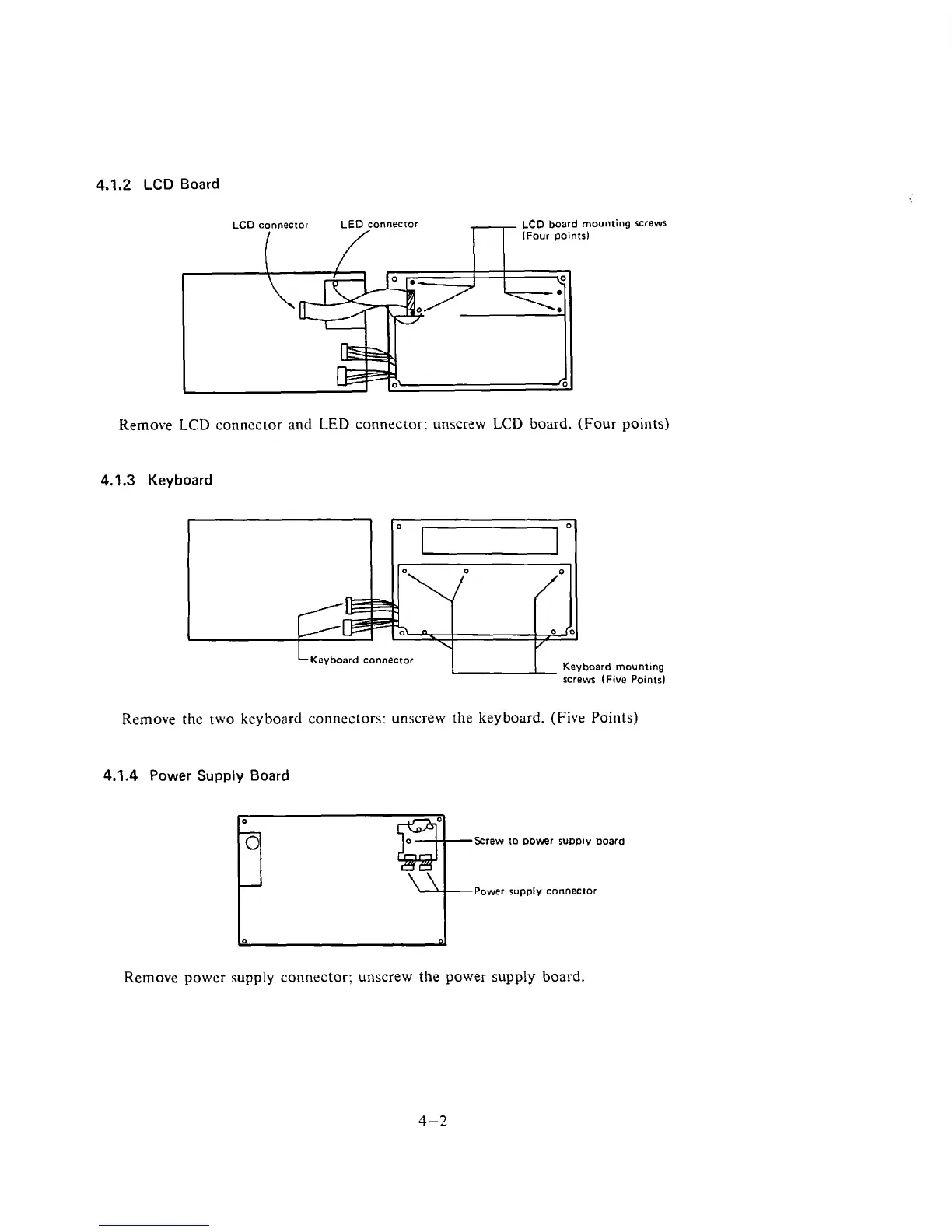

4.1.2 LCD Board
Kemove
LCD connector and LED connector: unscrzw LCD board. (Four points)
4.1.3 Keyboard
L~cyboard connector
I I Keyboard mounting
screws (Five Points)
Remove the two keyboard connectors: unscrew the keyboard. (Five Points)
4.1.4 Power Supply Board
- Screw
-
Power
to power supply board
supply connector
Remove power
lo d
supply connector; unscrew the power supply board.
