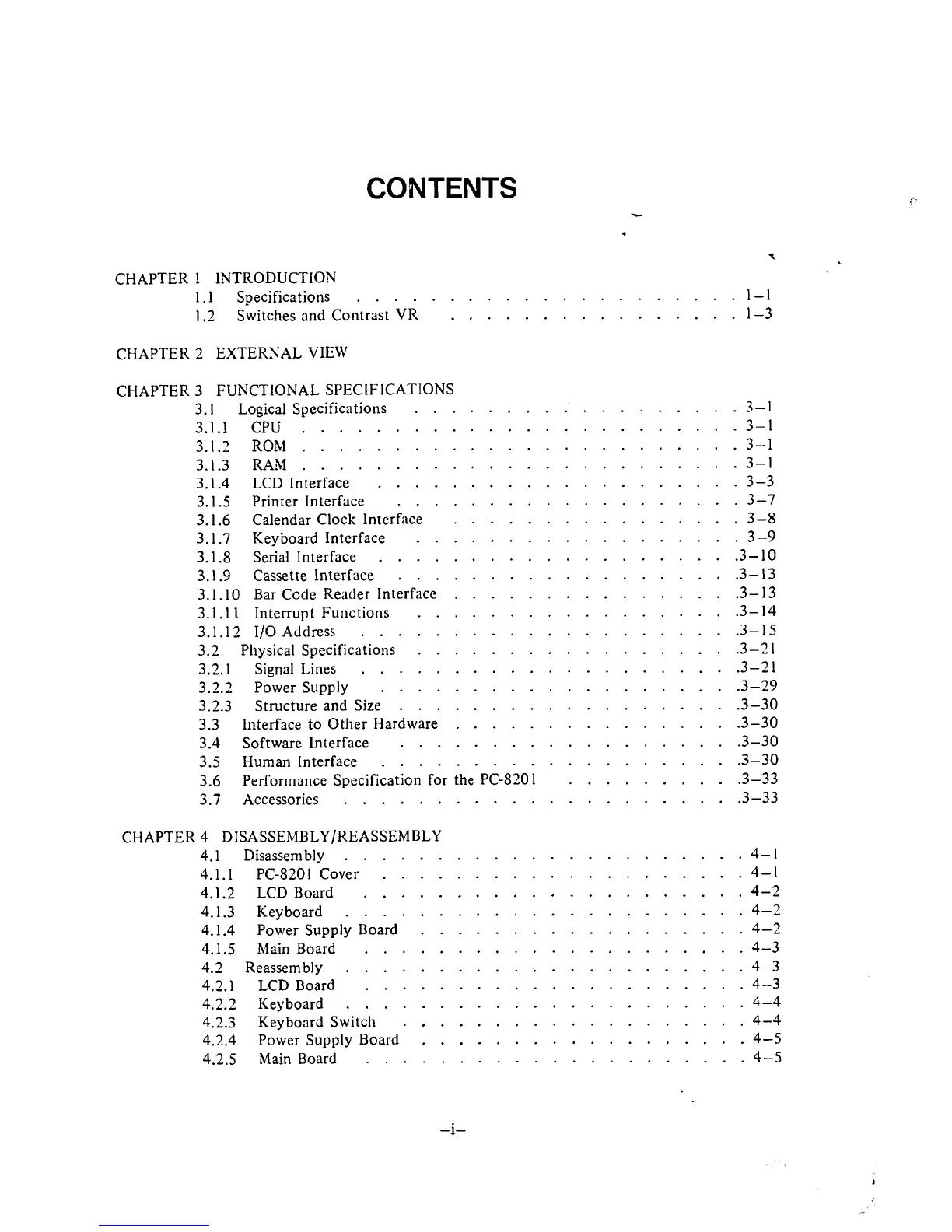

CONTENTS
i
CHAPTER 1 IKTRODUCTION
.....................
1.1 Specifications 1 . 1
................
1.2 Switches and Contrast VR 1-3
CHAPTER
2 EXTERNAL VIEW
CHAPTER 3 FUNCTIONAL
SPEClFICATIONS
..................
3.1 Logical Specifications 3-1
........................
3.1.1 CPU 3-1
........................
3.1.2 ROM 3-1
........................
3.1.3 Rkil 3-1
....................
3.1.4 LCD Interface 3-3
...................
3.1.5 Printer Interface 3-7
................
3.1.6 Calendar Clock Interface 3-8
..................
3.1.7 Keyboard Interface 3-9
....................
3.1.8 Serial Interface 3-10
...................
3.1.9 Cassette Interface 3-13
................
3.1.10 Bar Code Reader Interface 3-13
..................
3.1.1 1 Interrupt Functions 3-14
.....................
3.1.12 110 Address 3-15
..................
3.2 Physical Specifications 3-21
.....................
3.2.1 Signal Lines 3-21
....................
3.2.2 Power Supply 3-29
...................
3.2.3 Structure and Size 3-30
................
3.3 Interface to Other Hardware 3-30
...................
3.4 Software Interface 3-30
....................
3.5 Human Interface 3-30
..........
3.6 Performance Specification for the PC-8201 3-33
.....................
3.7 Accessories -3-33
CHAPTER 4 DISASSEMBLY/REASSEMBLY
......................
4.1 Disassembly 4-1
....................
4.1.1 PC-8201 Cover 4-1
.....................
4.1.2 LCD Board 4-2
......................
4.1.3 Keyboard 4-2
..................
4.1.4 Power Supply Board 4-2
.....................
4.1.5 Main Board 4-3
4.2 Reassembly
...................... 4-3
.....................
4.2.1 LCD Board 4-3
......................
4.2.2 Keyboard 4-4
...................
4.2.3 Keyboardswitch 4-4
..................
4.2.4 Power Supply Board 4-5
.....................
4.2.5 Main Board 4-5
