PDO - PD7
-
PSTB

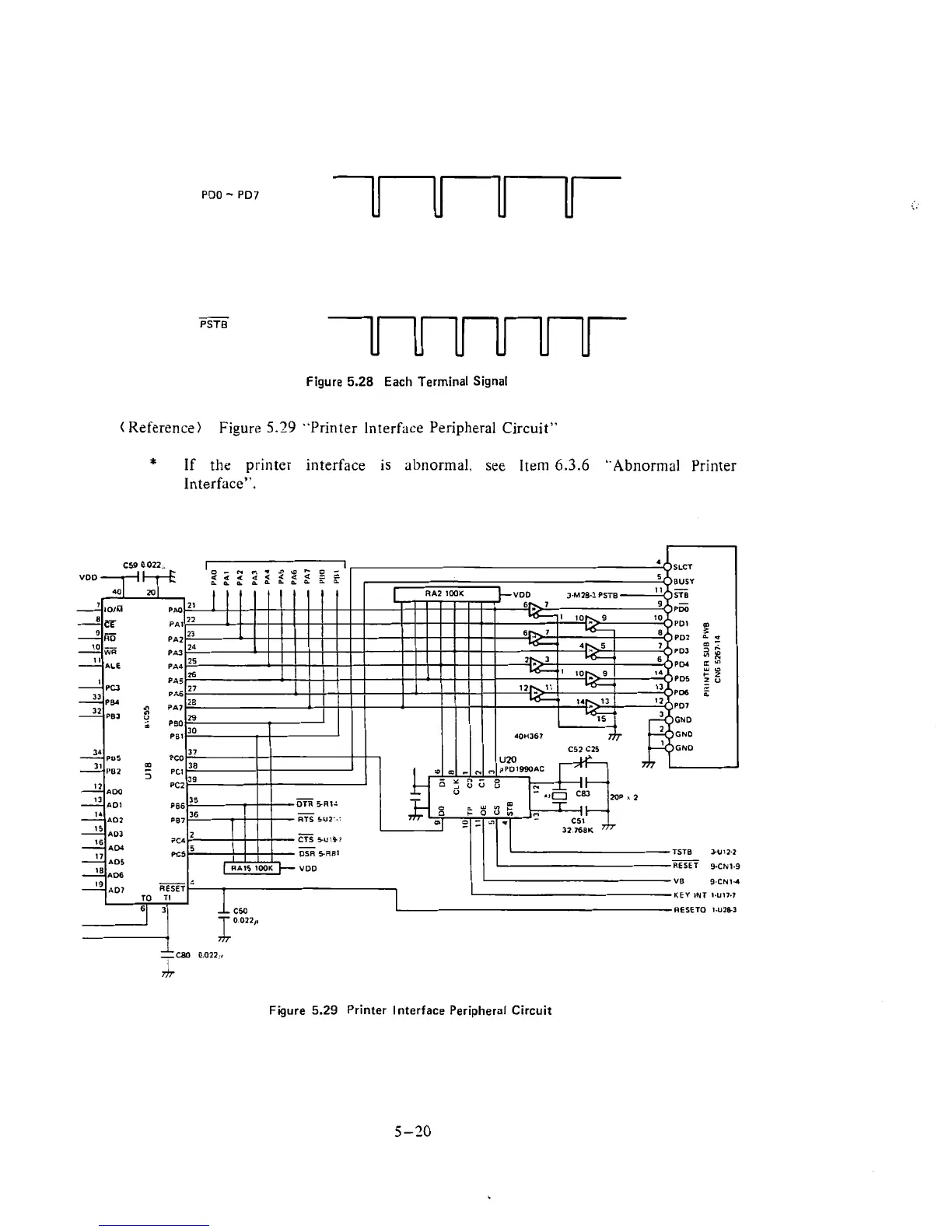

Figure 5.28 Each Terminal Signal
(Reference) Figure 5.29 "Printer Interface Peripheral Circuit"
* If the printer interface is abnormal. see Iteni6.3.6 '.Abnormal Printer
Interface".
Figure 5.29 Printer Interface Peripheral Circuit
