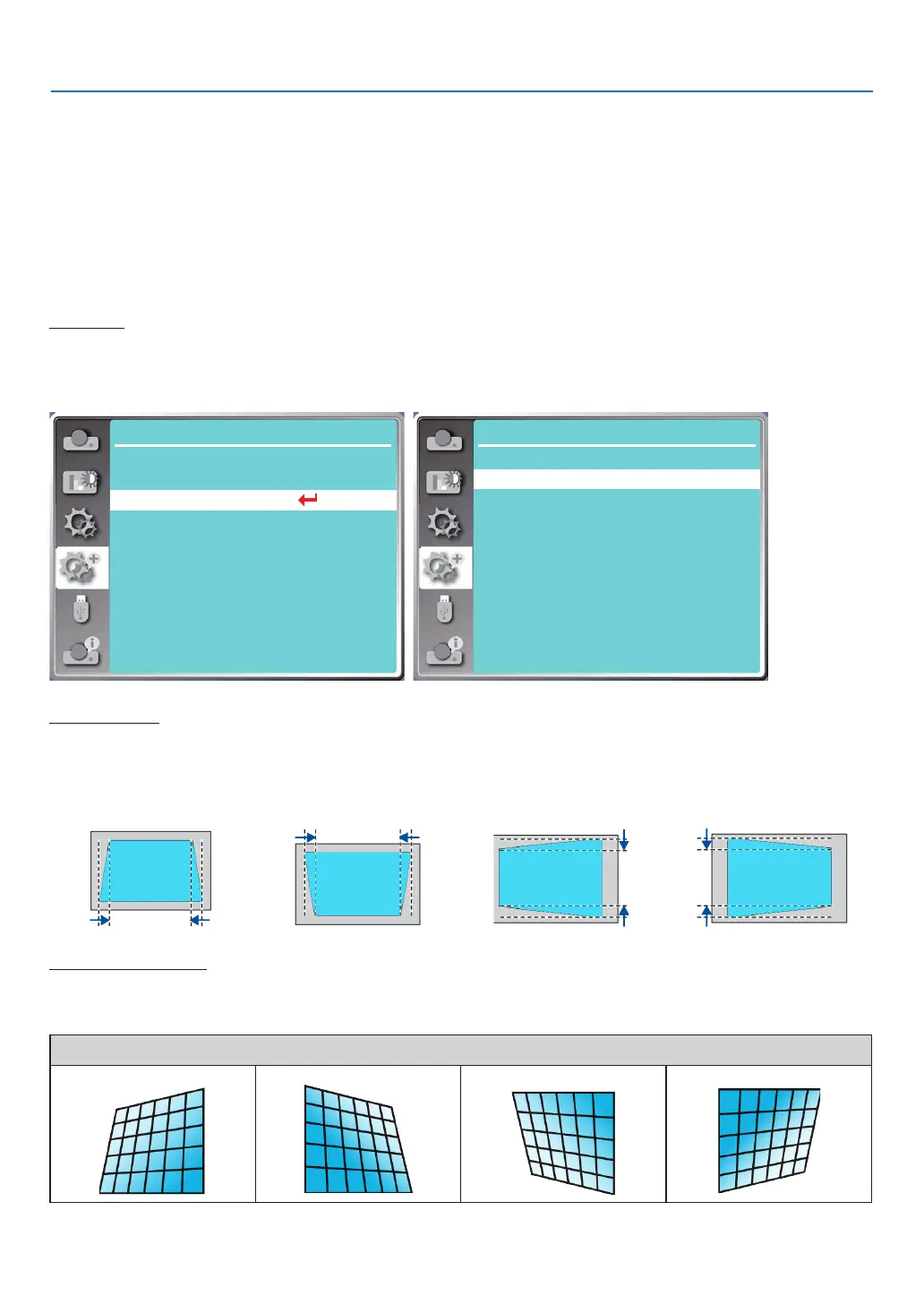

5. Using On-Screen Menu
[Keystone]
Select this function to store or reset the keystone or some related setting after unplugging the AC power cord.
Press the MENU button on the remote control or on the top control panel to display the On-Screen menu. Press ▲
▼ button to select the expand menu, then press the ENTER or ▶ button to enter.
1) Press ▲ ▼ button to select [Keystone] menu.
2) Press the ENTER button.
3) Press ▲ ▼ button to select required item.
4) Press the ENTER button.
Keystone
Select this function to store and reset keystone after turning off the projector or unplugging the AC power cord.
Store......Store keystone after turning off the projector or unplugging the AC power cord.
Reset......Keystone function will be canceled after turning off the projector or unplugging the AC power.
...
Expand
Language
Auto setup
Keystone
Security
Power management
Test pattern
Network setup
Control ID
Factory default
Filter
Expand
Keystone
StoreKeystone
H/V Keystone
6-Corner correction
Grid image tune
Reset value
Curved correction
4-Corner correction
H/V Keystone
Select this function to correct the projected images horizontally or vertically.
Press ▲ button to
reduce upper width
Press ▼ button to
reduce bottom width
Press
▶
button to
reduce left width
Press ▶ button to
reduce right width
4-Corner correction
Select this function to correct the projected images of four corners distorted.
Press ▲ ▼
▶
▶ button to keystone at four corners of the screen. The four corners are looped in sequence shown below:
Corner correction
Upper left Upper right Bottom left Bottom right
