7. Installation and Connections
[PE506WL]

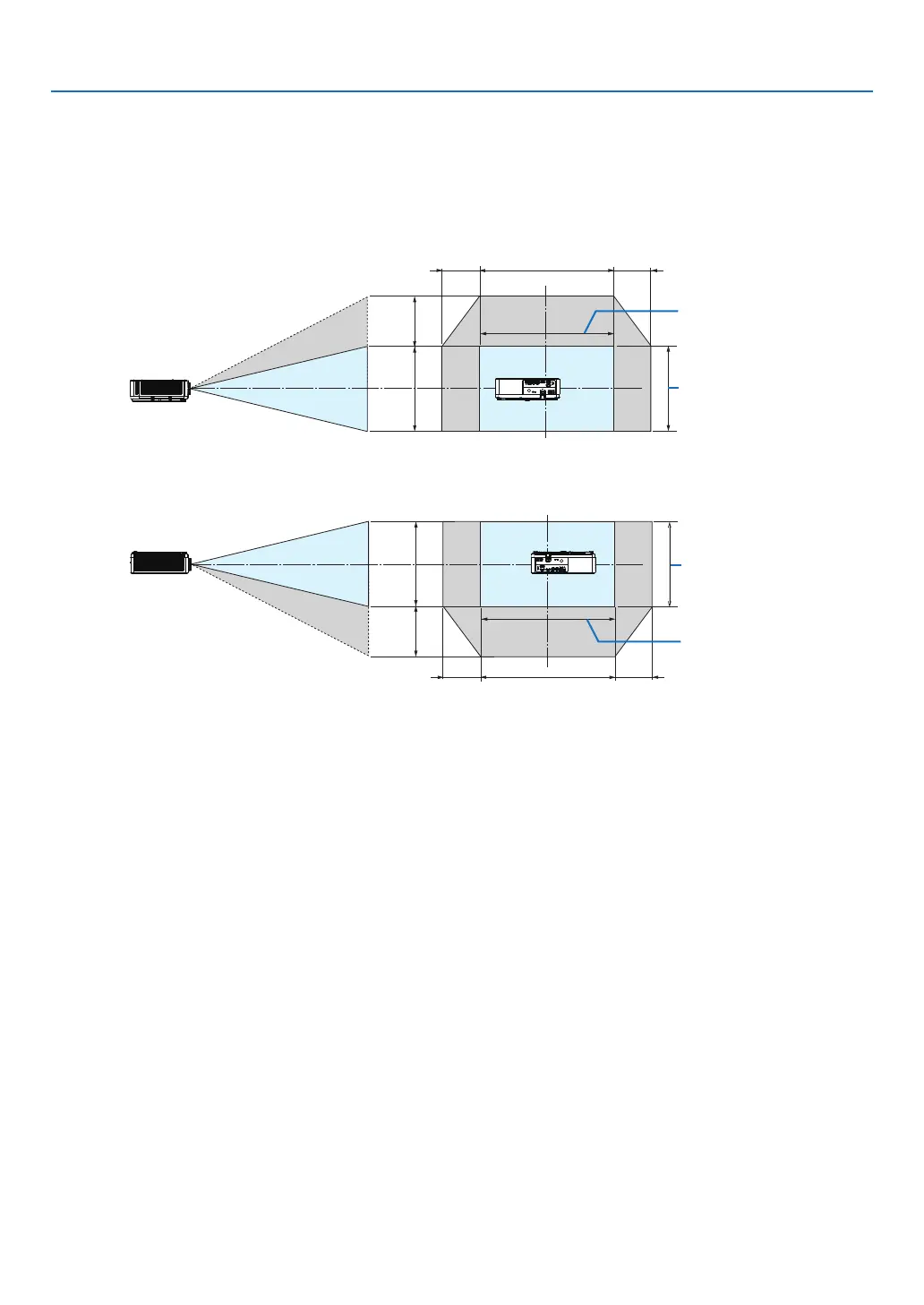

Lens shifting range:
Vertical direction: +55%, −0%
Horizontal direction: ±26%
DESKTOP FRONT, DESKTOP REAR
Width of projected
26% H26% H 100% H
55% V
100% V
Height of projected
CEILING FRONT, CEILING REAR
26% H26% H 100% H
55% V
100% V
Width of projected
Height of projected
(Example) When using to project on a 150" screen
According to the “Table of screen sizes and dimensions” (→ page 69), H = 127.2''/323.1 cm, V = 79.5''/201.9 cm.
Adjustment range in the vertical direction: the projected image can be moved upwards 0.55 × 79.5''/ 201.9 cm ≈
43.7''/111cm (when the lens is at the center position).
Adjustment range in the horizontal direction: the projected image can be moved to the left 0.26 × 127.2''/ 323.1cm
≈ 33.1''/84 cm, to the right approximately 33.1''/84 cm.
* Figures differ by several % because the calculation is approximate.
