NEC UM280X - Remote Control Parts Identification

9
1. Introduction

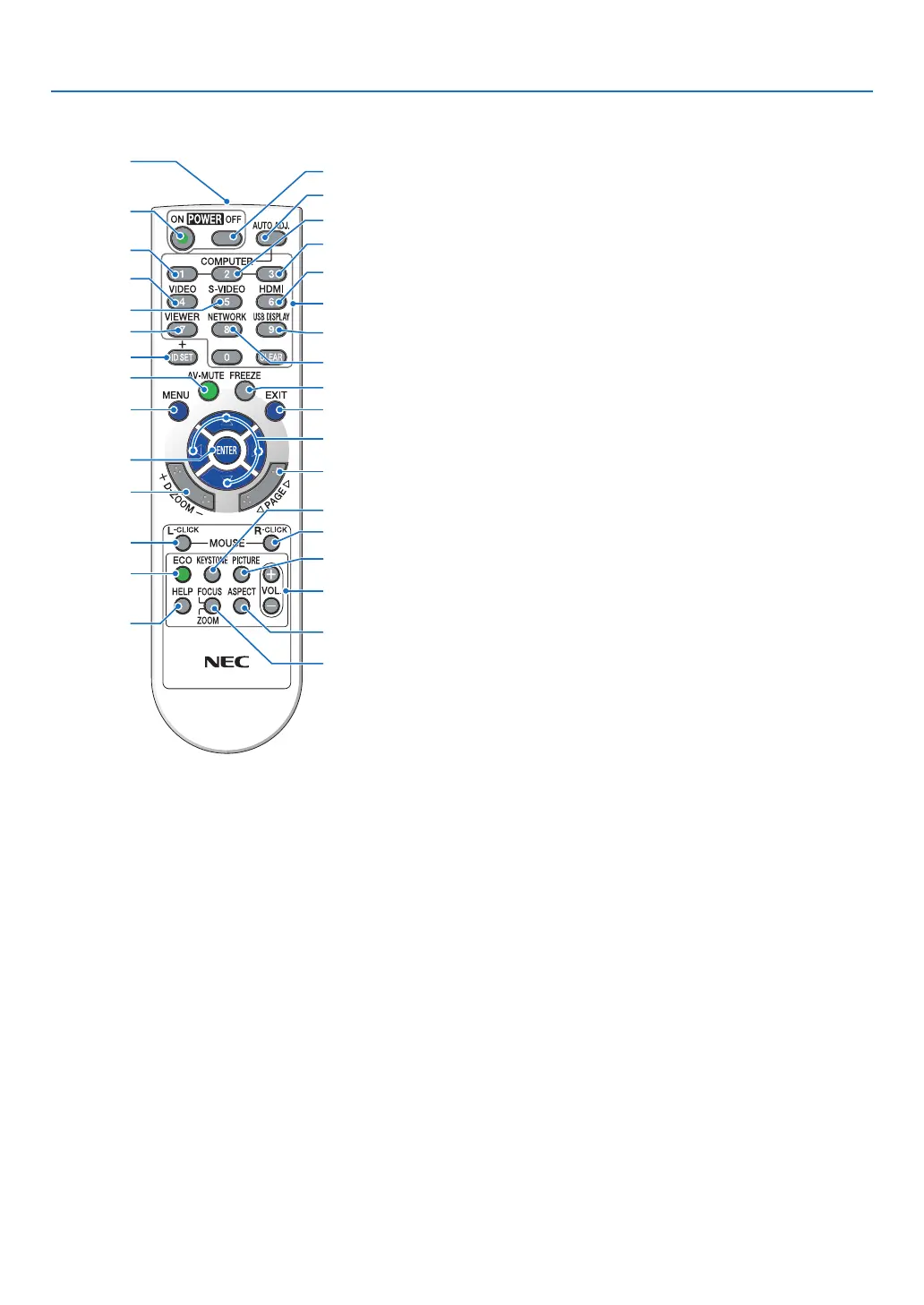

 Part Names of the Remote Control
3
7
5
6
1
2
10
15
16
14
17
9
4
8
13
29
30
31
19
20
25
27
28
24
18
23
22
21
26
32
12
11
1. Infrared Transmitter
(→page10)
2. POWERONButton
(→page16)
3. POWEROFFButton
(→page26)
4,5,6.COMPUTER1/2/3Button
(→page18)
 (COMPUTER2/3buttonisnotavailable.)
7. AUTOADJ.Button
(→page25)
8. VIDEOButton
(→page18)
9. S-VIDEOButton
(→page18)
10.HDMIButton(→page18)
11.VIEWERButton(→page18, 62)
12.NETWORKButton(→page18)
13.USBDISPLAYButton(→page18)
14.IDSETButton
(→page91)
15.NumericKeypadButton/CLEARButton
(→page91)
16.FREEZEButton
(→page28)
17.AV-MUTEButton
(→page28)
18.MENUButton
(→page73)
19.EXITButton(→page73)
20.
Button(→page73)
21.ENTERButton(→page73)
22.D-ZOOM(+)(–)Button
(→page28)
23.MOUSEL-CLICKButton*
(→page40)
24.MOUSER-CLICKButton*
(→page40)
25.PAGE/Button
(→page40)
26.ECOButton(→page29)
27.KEYSTONEButton
(→page24)
28.PICTUREButton
(→page79, 81)
29.VOL.(+)(–)Button
(→page25)
30.ASPECTButton
(→page84)
31.FOCUS/ZOOMButton
 TheZOOMbuttonwilldisplaytheDIGITALZOOMbar.
(→page22, 86)TheFOCUSbuttondoesnotwork
onthisseriesofprojectors.
32.HELPButton
(→page99)
* TheMOUSEL-CLICKandMOUSER-CLICKbuttonsworkonlywhenaUSBcableisconnectedwithyourcom-
puter.
