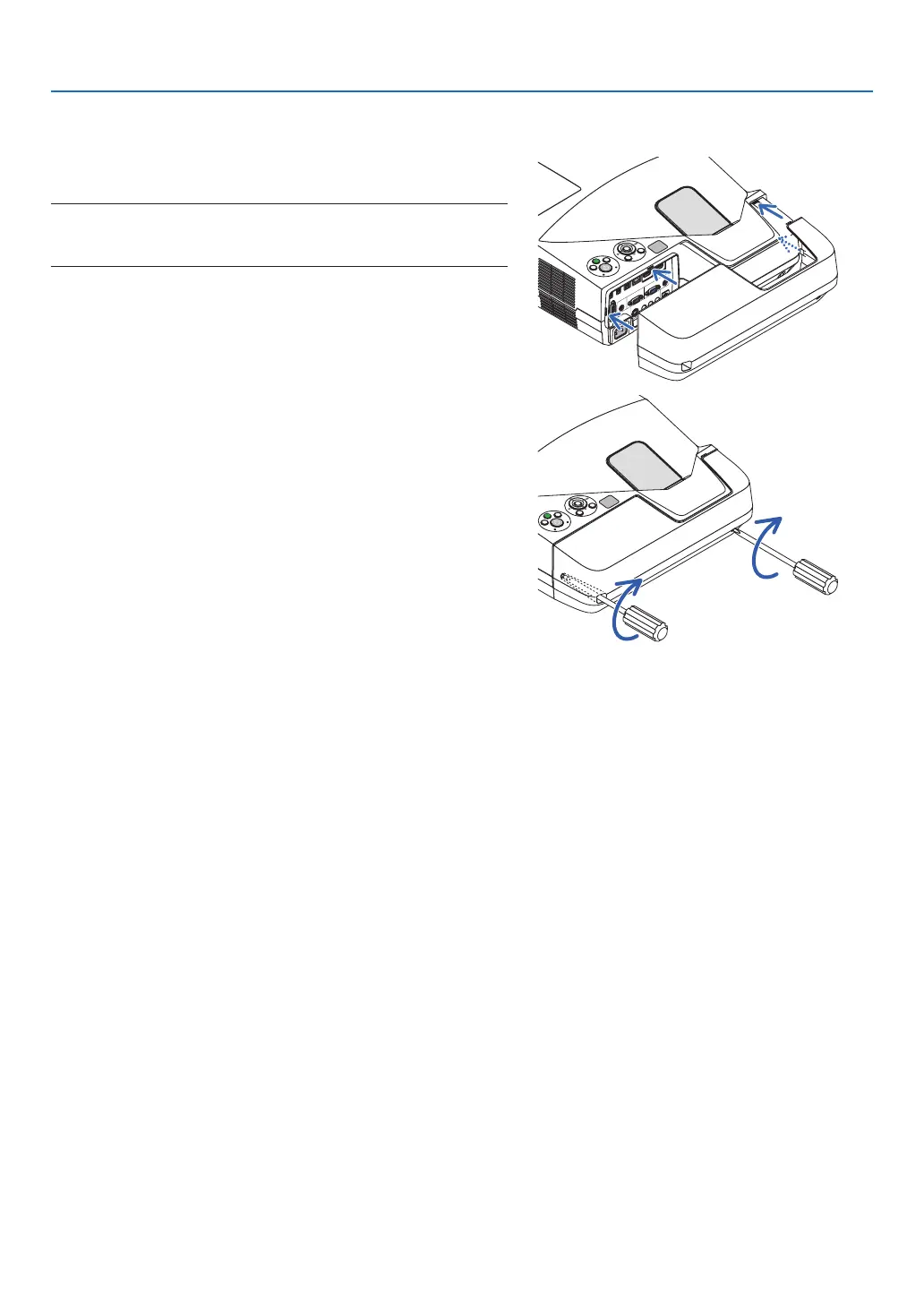

1. Introduction
Attachingthecableco
ver
1.
Align
four
tabs of
the cable
cover with
grooves
of the
pro-
jector and push the cable co
ver until you c
lick it.
NOTE:
•
Becarefulnottogetcablescaughtin
betweenthecablecoverandthe
projector
.
2.
Tighten the cable co
ver screws.
•
Besuretotightenthescrews
.
15
17
Table of Contents
Table of Contents
8
Introduction
11
What's in the Box
11
Introduction to the Projector
12
Features You'll Enjoy
12
About this User's Manual
13
Part Names of the Projector
14
Top and Screen Side of Projector
14
Terminal Panel Side of Projector
14
Removing and Attaching the Cable Cover
15
Top Features
17
Terminal Panel Features
18
Part Names of the Remote Control
19
Battery Installation
20
Remote Control Precautions
20
Operating Range for Wireless Remote Control
20
Operating Environment for Software Included on CD-ROM
21
Operating Environment
22
Projecting an Image (Basic Operation)
24
Flow of Projecting an Image
24
Connecting Your Computer/Connecting the Power Cord
25
Turning on the Projector
26
Note on Startup Screen (Menu Language Select Screen)
27
Selecting a Source
28
Selecting the Computer or Video Source
28
Adjusting the Picture Size and Position
29
Adjusting Horizontal/Vertical Position
30
Adjusting the Focus (Focus Ring)
30
Adjusting the Tilt (Tilt Foot)
31
Finely Adjusting the Vertical Tilt
31
Adjusting the Size [Digital Zoom]
32
Correcting Keystone Distortion Manually
33
Adjusting with Buttons on the Cabinet
33
Adjusting with the Remote Control
34
Optimizing Computer Signal Automatically
35
Adjusting the Image Using Auto Adjust
35
Turning up or down Volume
35
Turning off the Projector
36
When Moving the Projector
37
Convenient Features
38
Turning off the Image and Sound
38
Freezing a Picture
38
Enlarging a Picture
38
Changing Eco Mode/Checking Energy-Saving Effect
39
Using Eco Mode [ECO MODE]
39
Checking Energy-Saving Effect [CARBON METER]
40
Preventing the Unauthorized Use of the Projector [SECURITY]
41
Using the Computer Cable (VGA) to Operate the Projector (Virtual Remote Tool)
44
Operating Your Computer's Mouse Functions from the Projector's Remote Control
50
Via the USB Cable (Remote Mouse Function)
50
(USB Display)
51
Controlling the Projector by Using an HTTP Browser
53
Controlling the Projector over a LAN (PC Control Utility Pro 4/Pro 5)
60
Projecting Your Computer's Screen Image from the Projector over a LAN
64
Express Utility Lite)
64
Starting Image Express Utility Lite from a USB Memory or SD Card
67
Projecting an Image from an Angle
69
Utility Lite)
69
What You Can Do with GCT
69
Projecting an Image from an Angle (GCT)
69
Connecting Your Microphone
71
Using the Viewer
72
❶ What You Can Do with the Viewer
72
❷ Projecting Images Stored in a USB Memory Device
74
Converting Powerpoint Files to Slides (Viewer PPT Converter 3.0)
80
Using On-Screen Menu
83
Using the Menus
83
Menu Elements
84
List of Menu Items
85
Menu Descriptions & Functions [SOURCE]
88
Computer
88
HDMI1 and 2
88
Video
88
S-Video
88
Viewer
88
Network
88
Usb Display
88
Menu Descriptions & Functions [ADJUST]
89
[Picture]
89
[Image Options]
92
Menu Descriptions & Functions [SETUP]
96
[General]
96
[Menu]
98
[Installation]
100
[Options(1)]
102
[Options(2)]
104
Setting up the Projector for a Wired LAN Connection [WIRED LAN]
106
Setting up the Projector for a Wireless LAN Connection (with the Optional USB Wireless LAN Unit Equipped) [WIRLESS LAN]
107
Menu Descriptions & Functions [INFO.]
109
[Usage Time]
109
[Source]
110
[Wired Lan]
110
[Wireless Lan]
110
[Version]
111
[Others]
111
Menu Descriptions & Functions [RESET]
112
Returning to Factory Default [RESET]
112
Installation and Connections
113
Setting up the Screen and the Projector
113
Making Connections
116
Connecting Your Computer
116
Connecting an External Monitor
118
Connecting Your DVD Player or Other AV Equipment
119
Connecting Component Input
120
Connecting HDMI Input
121
Connecting to a Wired LAN
122
Connecting to a Wireless LAN (Optional: NP02LM Series)
123
Maintenance
126
Cleaning the Filters
126
Cleaning the Projection Window
129
Cleaning the Cabinet
129
Replacing the Lamp and the Filters
130
Appendix
136
Troubleshooting
136
Indicator Messages
136
Common Problems & Solutions
137
If There Is no Picture, or the Picture Is Not Displayed Correctly
138
Specifications
139
Cabinet Dimensions
141
Pin Assignments of D-Sub COMPUTER Input Connector
142
Compatible Input Signal List
143
PC Control Codes and Cable Connection
144
Troubleshooting Check List
145
TCO Certification
147
Register Your Projector
148
Mexico)
148
