NEC V281W - Terminal Panel Features

6
1. Introduction

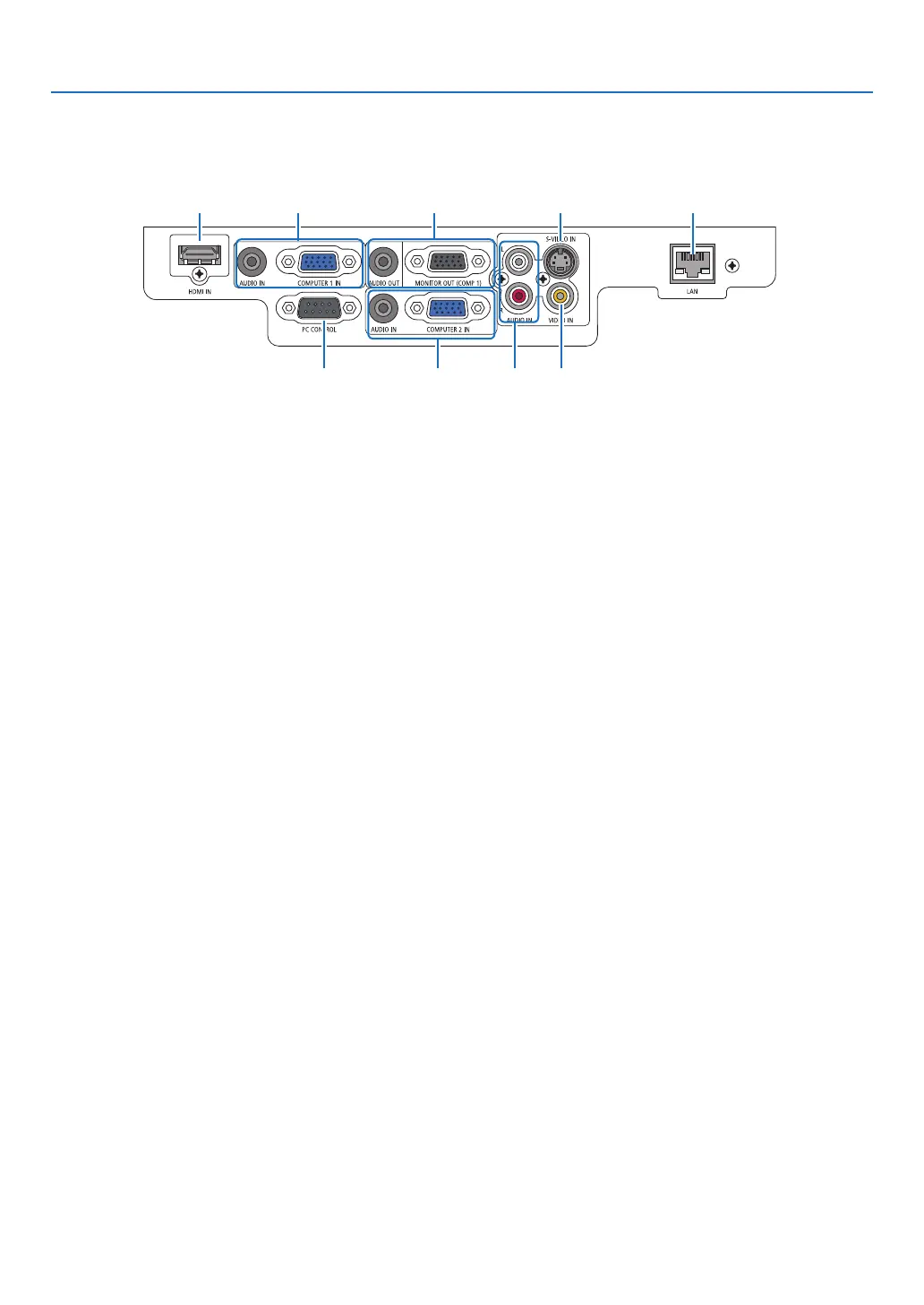

Terminal Panel Features
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(→ page 13, 14, 15)
AUDIO IN Mini Jack (Stereo Mini)
(→ page 13, 14, 15)
2. COMPUTER 2 IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(→ page 13, 14, 15)
AUDIO IN Mini Jack (Stereo Mini)
(→ page 13, 14, 15)
3. MONITOR OUT (COMP 1) Connector (Mini D-Sub
15 Pin)
(→ page 14)
AUDIO OUT Mini Jack (Stereo Mini)
(→ page 14)
4. PC CONTROL Port (D-Sub 9 Pin)
(→ page 92)
Use this port to connect a PC or control system.
This enables you to control the projector using serial
communication protocol. If you are writing your own
program, typical PC control codes are on page 92.
5. S-VIDEO IN Connector (Mini DIN 4 Pin)
(→ page 16)
6. VIDEO IN Connector (RCA)
(→ page 16)
7. VIDEO/S-VIDEO AUDIO Input Jacks L/R (RCA)
(→ page 16)
8. LAN Port (RJ-45)
(→ page 18)
9. HDMI Connector
(→ page 13, 17)
2 7 6
19 3 5 8
4
