NEC VT480 - Input Panel and Controls; PC Control Codes; Cable Connection Details

NEC Solutions (America), Inc.
Visual Systems Division
VT480/58/580 Installation Guide
Ceiling Mounted and Desktop Rev 1.1eu
www.visualsystems.com VT480/58/580 Page 6 of 6

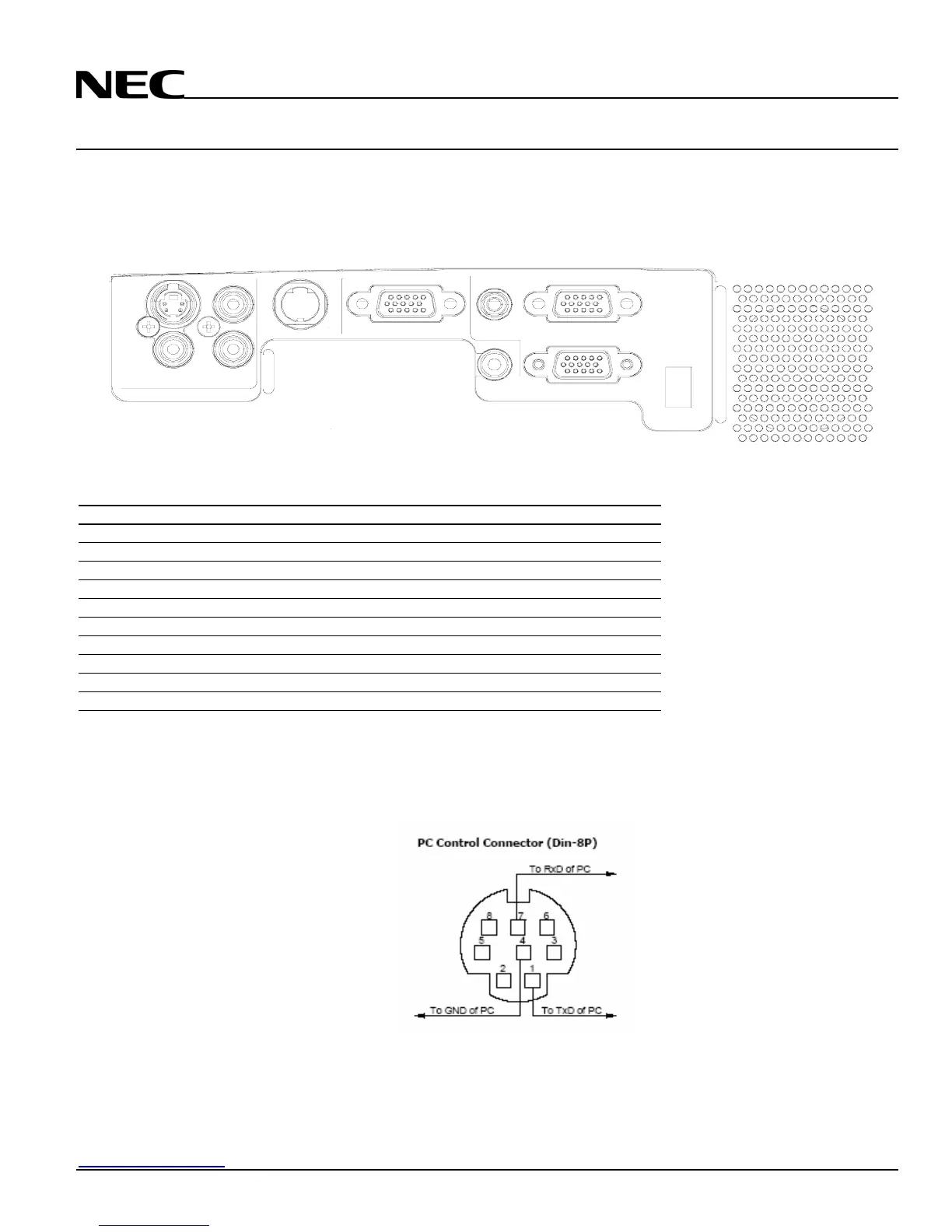

Input Panel
S-VIDEO
IN
VIDEO IN
AUDIO IN
L
R
PC CONTROL
MONITOR OUT
AUDIO IN COMPUTER1 IN
COMPUTER2 INAUDIO OUT
(COMPUTER1)
++
VT480 / VT580
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT CCOMPUTER 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
Note: Contact your NEC rep for codes not listed.
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps
Data Length: 8 bits
Parity: No Parity
Stop Bit: One Bit
X on/off: None
Communications: Full duplex
NOTE 1 : Pins 2, 3, 5, and 6 are used inside the projector.
NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
