2. Installation and Connections
Connecting Your DVD Player with Component Output
A component signal will be automatically displayed. If not, from the menu, select [Setup] → [Options] → [Signal
Select] → [Computer 1 ([Computer] on VT590/VT59/VT49)], and then place a check mark in the Component radio
button.
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.

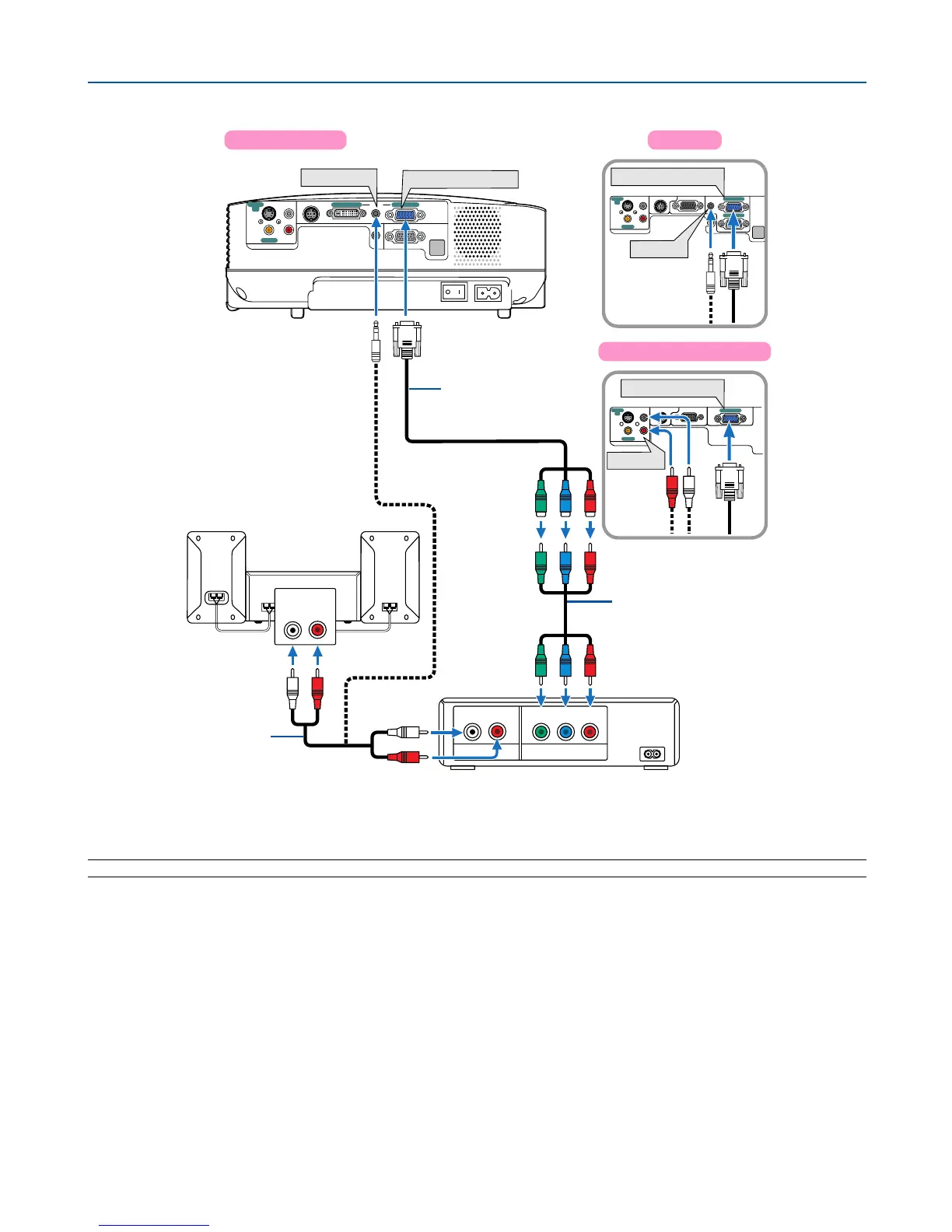

AUDIO IN
