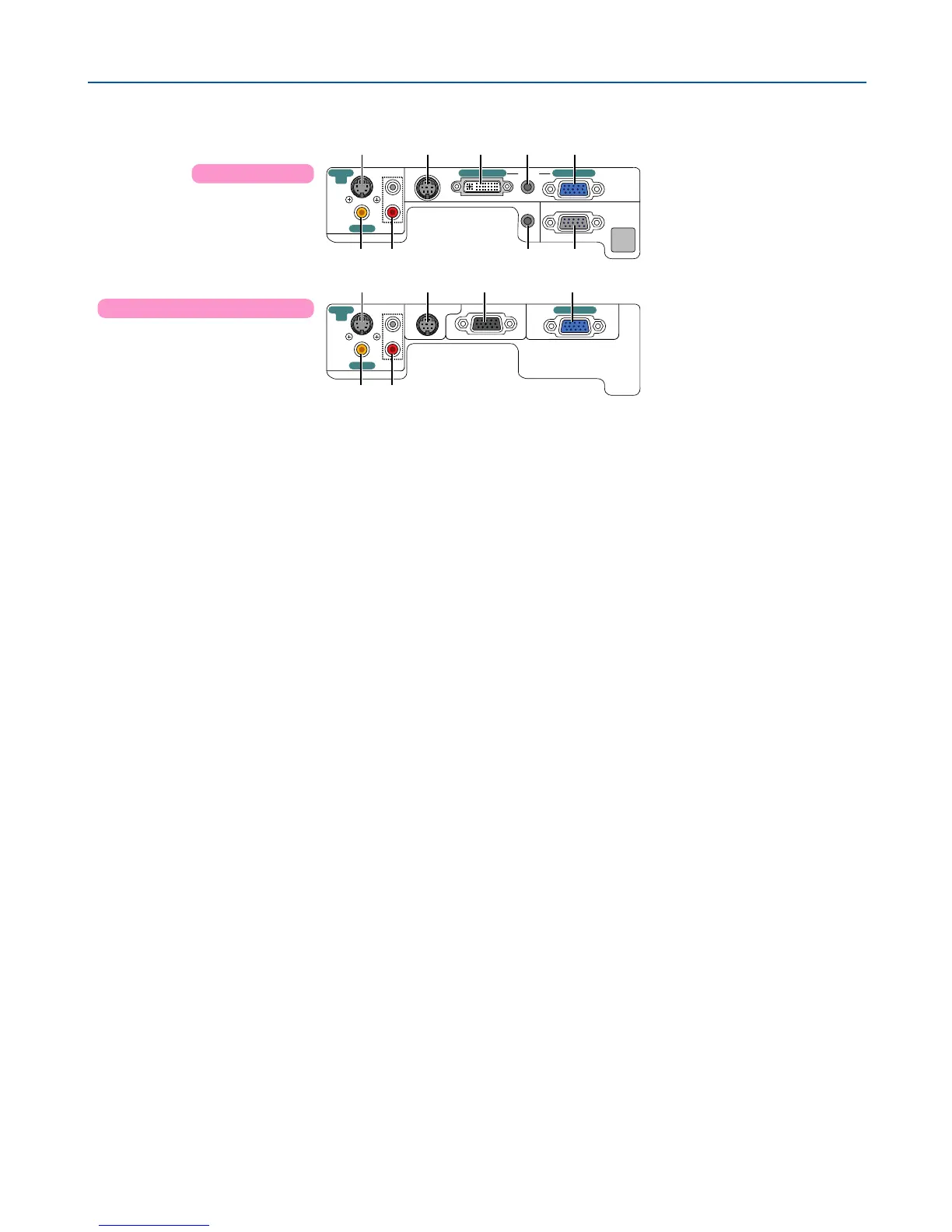

Terminal Panel Features
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(VT695/VT595) (→page 13,15)
COMPUTER IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(VT590/VT490/VT59/VT49) (→page 13,17)
2. AUDIO IN Mini Jack (Stereo Mini) (→page 13,14,17)
(VT695/VT595)
3. AUDIO OUT Mini Jack (Stereo Mini) (→page 16)
(VT695/VT595)
4. MONITOR OUT Connector (Mini D-Sub 15 Pin)
(→page 16)
5. S-VIDEO IN Connector (Mini DIN 4 Pin)
(→page 18)
6. VIDEO IN Connector (RCA) (→page 18)
7. AUDIO Input Jacks L/R (RCA) (→page 13,17,18)
8. PC CONTROL Port (DIN 8 Pin) (→page 64,65)
Use this port to connect a PC or control system.
This enables you to control the projector using serial
communication protocol. If you are writing your own
program, typical PC control codes are on page 64.
9. COMPUTER 2 (DVI-I) IN (DVI-I 29 Pin) (→page 14,15)
(VT695/VT595)
VT590/VT490/VT59/VT49
VT695/VT595
