NEC VT695 - Part Names of the Projector

3
MENU
SELEC T
L
A
M
P
S
T
A
T
U
S
P
O
W
E
R
ON/STAND BY
S
O
U
R
C
E
AUTO ADJ.
ENTER
E
X
IT
FOCUS
ZOOM
1. Introduction

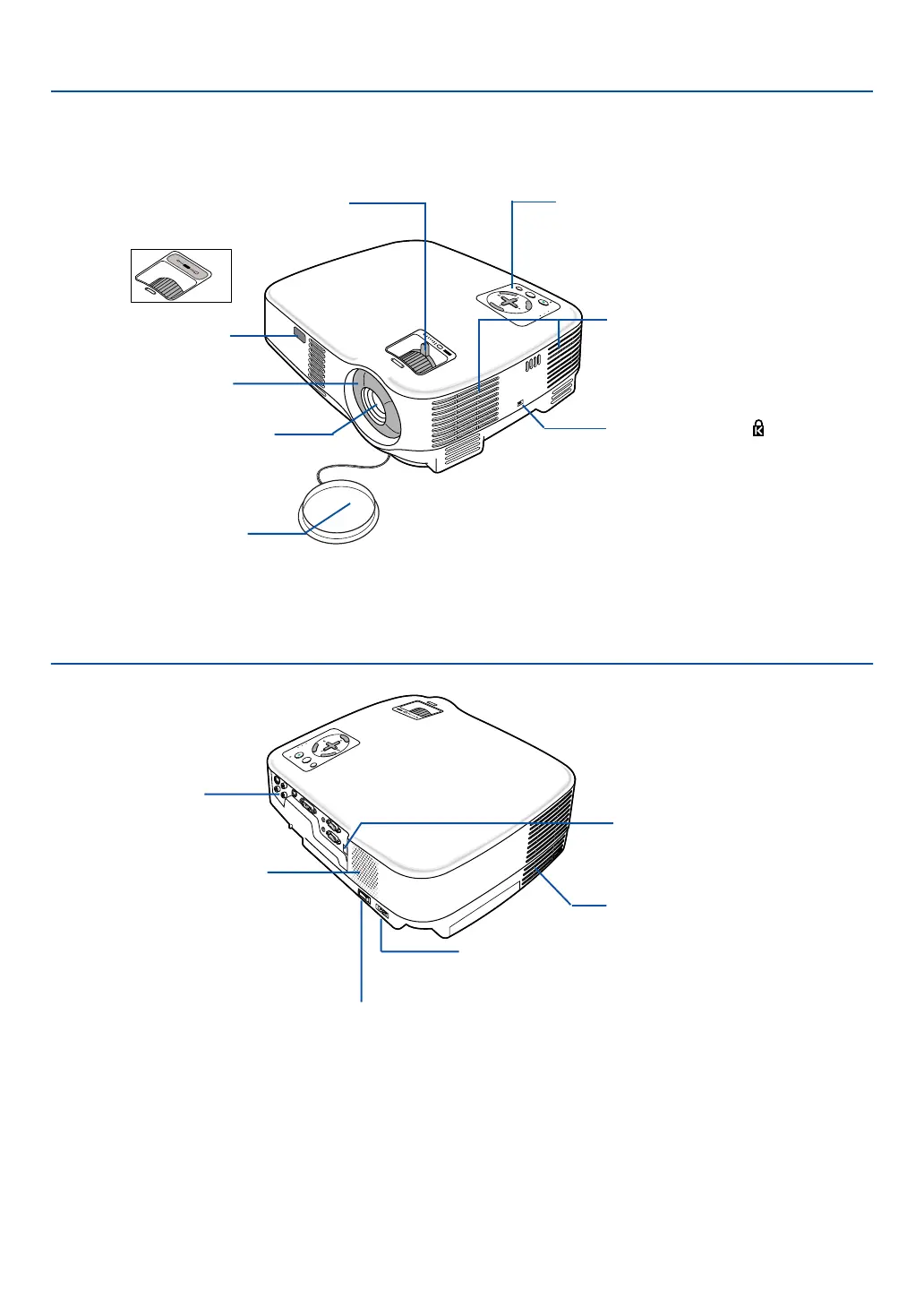

 Part Names of the Projector
Front/Top
F
O
C
U
S
MENU
SELEC T
LAMP
STATU S
POWER
ON/STAND BY
SOURCE
AUTO A DJ.
E
N
T
E
R
E
X
IT
Z
O
O
M
Zoom Lever (VT695/VT595/VT590/VT490/VT59)
Digital Zoom Button (VT49)
( → page 24)
Controls
( → page 5)
Lens
Lens Cap
Built-in Security Slot ( )*
Focus Ring
( → page 24)
Remote sensor
( → page 8)
Ventilation (inlet) / Filter Cover
( → page 50)
Two filters on VT695, VT595, VT590
and VT490
One filter on VT59 and VT49
AC Input
Connect the supplied power cable's two-pin plug here, and
plug the other end into an active wall outlet. ( → page 19)
Main Power Switch
When you plug the supplied power cable into an active wall outlet
and turn on the Main Power, the POWER indicator turns orange
and the projector is in standby mode.
( → page 20,28)
Remote sensor (VT695 and VT595 only)
( → page 8)
Terminal Panel
( → page 6)
Monaural Speaker
(VT695/VT595: 5W)
(VT590/VT490/VT59/VT49: 1W)
* This security slot supports the MicroSaver ® Security System. MicroSaver ® is a registered trademark of
Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Ventilation (outlet)
Heated air is exhausted from here.
Rear
FO
C
U
S
ZO
O
M
