2. Installation and Connections

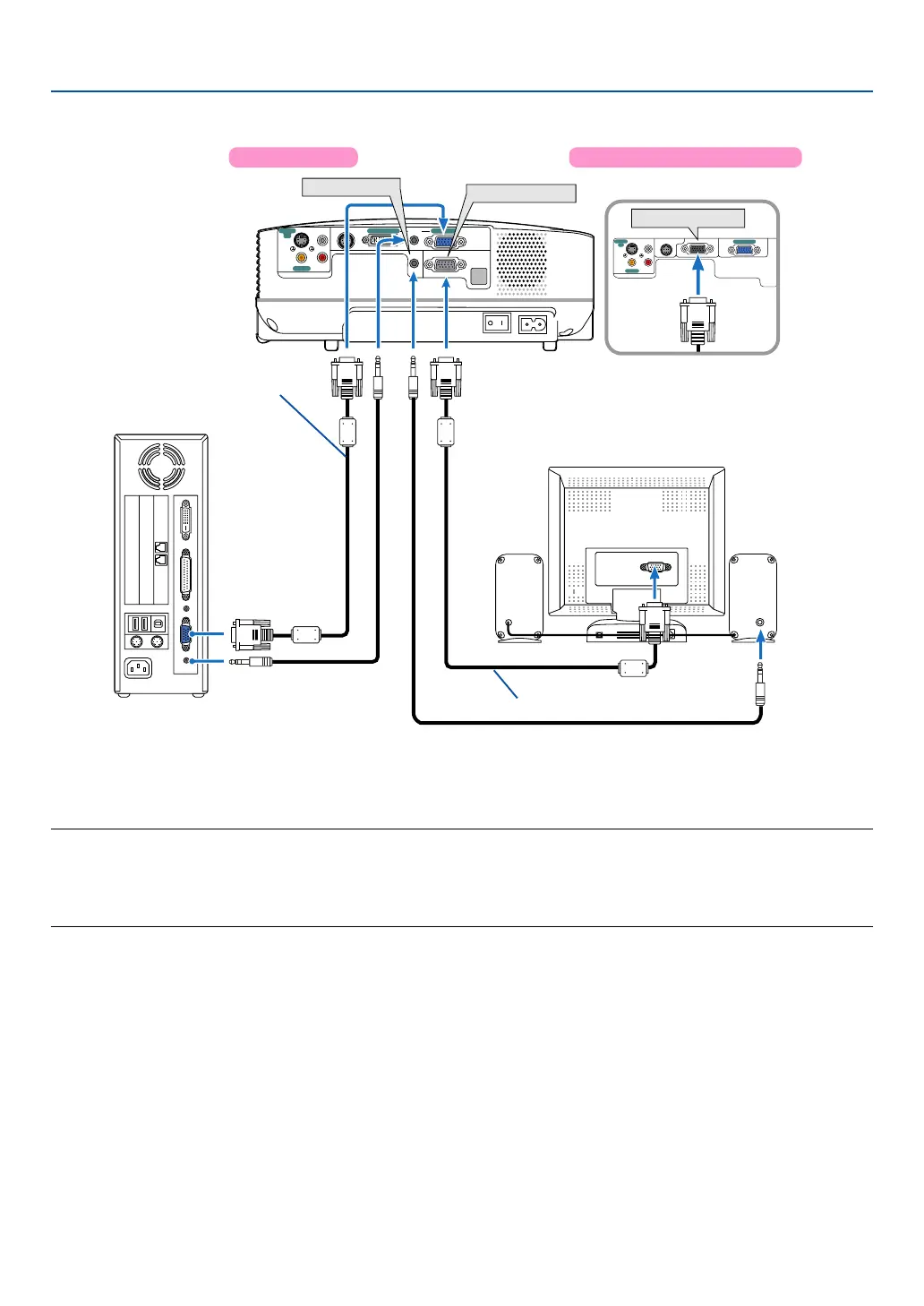

Connecting an External Monitor
You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
image you're projecting.
NOTE:
• Daisy chain connection is not possible.
• The signal from the COMPUTER 2 IN connector cannot be output from the MONITOR OUT connector on VT695 and VT595.
• When the DVI Digital signal is selected, no signals will be output from the MONITOR OUT connector on VT695 and VT595.
• The VT590/VT490/VT59/VT49 do not have the AUDIO OUT connector.
AUDIO
IN
AUDIO OUT
AUDIO IN
MONITOR OUT (COMP 1)
COMPUTER 1 IN COMPUTER 2 (DVI-I) IN
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CTRL
L
R
MONITOR OUT
L
COMPUTER IN
MONITOR OUT
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CONTROL
R
MONITOR OUT
AUDIO OUT
VGA signal cable (supplied)
VGA signal cable (not supplied)
VT590/VT490/VT59/VT49 VT695/VT595
