2. Installation and Connections
PC CARD
AUDIO IN
R
L
/MONO
VIDEO IN
S-VIDEO IN DVI-I IN
COMPUTER IN MONITOR OUT
DVI-I COMPUTER
AUDIO IN AUDIO OUT
PCCONTROL
REMOTE
IN
USB
AUDIO IN
LR
AUDIO OUT
L R
Component
YCbCr
AUDIO IN COMPUTER
COMPUTER IN

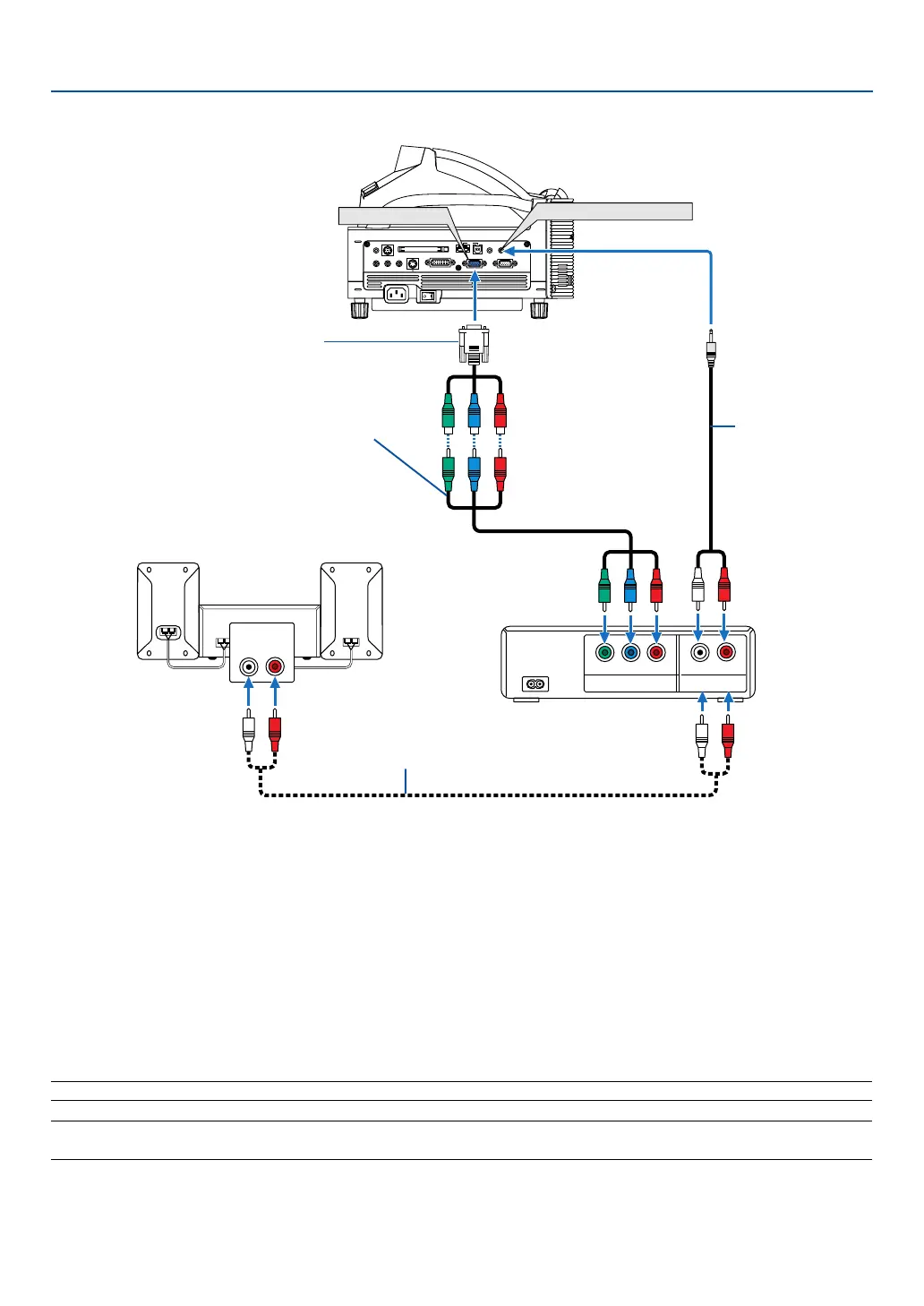

Connecting Your DVD Player
Audio cable (not supplied)
DVD player
You can connect your projector to a DVD player with component output or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component
video cable (RCA ⳯ 3) and the optional 15-pin-to-RCA (female) ⳯ 3 cable to connect your DVD player to
the COMPUTER IN connector on the projector.
For a DVD player without component video (Y,Cb,Cr) output, use an S-Video cable (not provided) to
connect the S-Video output of the DVD player to the S-Video Input of the projector.
3. Turn on the projector and DVD player.
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
NOTE: Normally switching between RGB and component signals will be performed automatically, but if it fails, from the menu
select [Setup] → [Options] → [Signal Select] → [Component] for the RGB signal.
Audio Equipment
Component video RCA
⳯ 3 cable
(not supplied)
Optional 15-pin-to-RCA
(female)
⳯ 3 cable (ADP-CV1)
Audio cable
(not supplied)
