NECTA SPA TECHNICAL MANUAL “COLIBRÌ”
Service Manual: Colibrì Edition 02-2002 5 /25
2 - ELECTRICAL SYSTEMS - CONNECTIONS - CONFIGURATIONS
The machine is designed to operate under a single-phase voltage of 230 V AC (+5-10V)
It is protected with a main 10 A fuse on both phases.
With regard to the transformer:
The primary winding is protected with a 125 mA fuse
The secondary winding is protected with a 1.25 mA fuse
The machine is fitted with a door opening safety switch.
The power cable can be supplied as a standard feature and chosen among the following types:
HO5 RN – F copper with a 3 x 1.5 mm
2
section
HO5 V V – F ,, ,, ,, ,,
HO5 V V – F ,, ,, ,, ,,
Fitted with a fixed SCHUKO plug.
NOTE: For UK there is a specific plug conforming to the standards in force, which is adopted for that specific
market.
In the event of replacement cables of exactly the same characteristics must be used.
Since the “Colibrì” vending machine is approved by an electrical safety certification institute (IMQ),
replacements with non-original components are not permitted.
Otherwise the electrical safety certificate and the warranty will be void.
2.1 - ELECTRONIC BOARDS CONNECTIONS

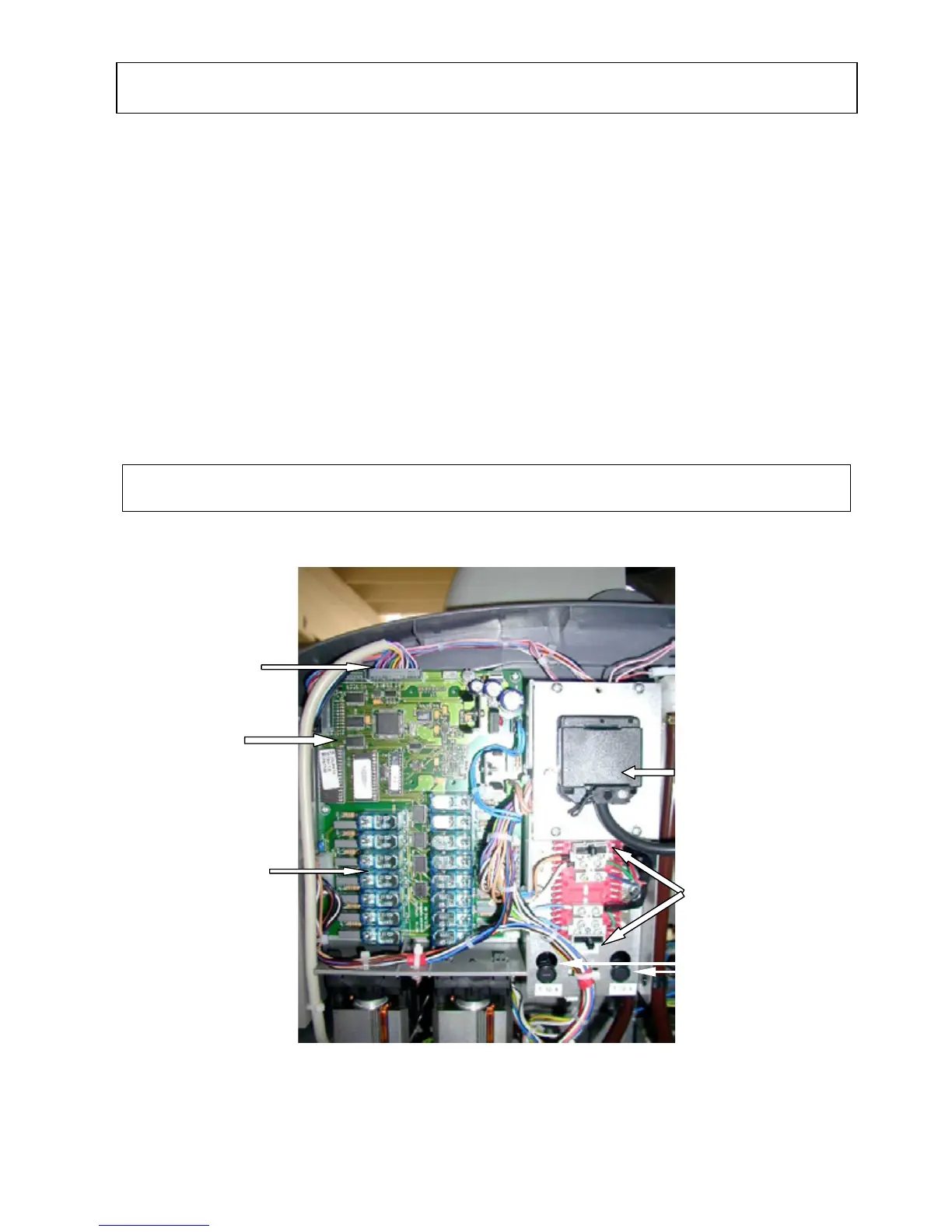

Electrical and board connections: Back view without protective casing
Power supply
cable connector
10 A line fuses
T
ransformer fuses
Push-button
wiring connector
A
ctuation rela
y
CPU and
actuation board
