PRINTED BOARD FUNCTIONS
AND INDICATOR LAMPS
ACTUATION BOARD

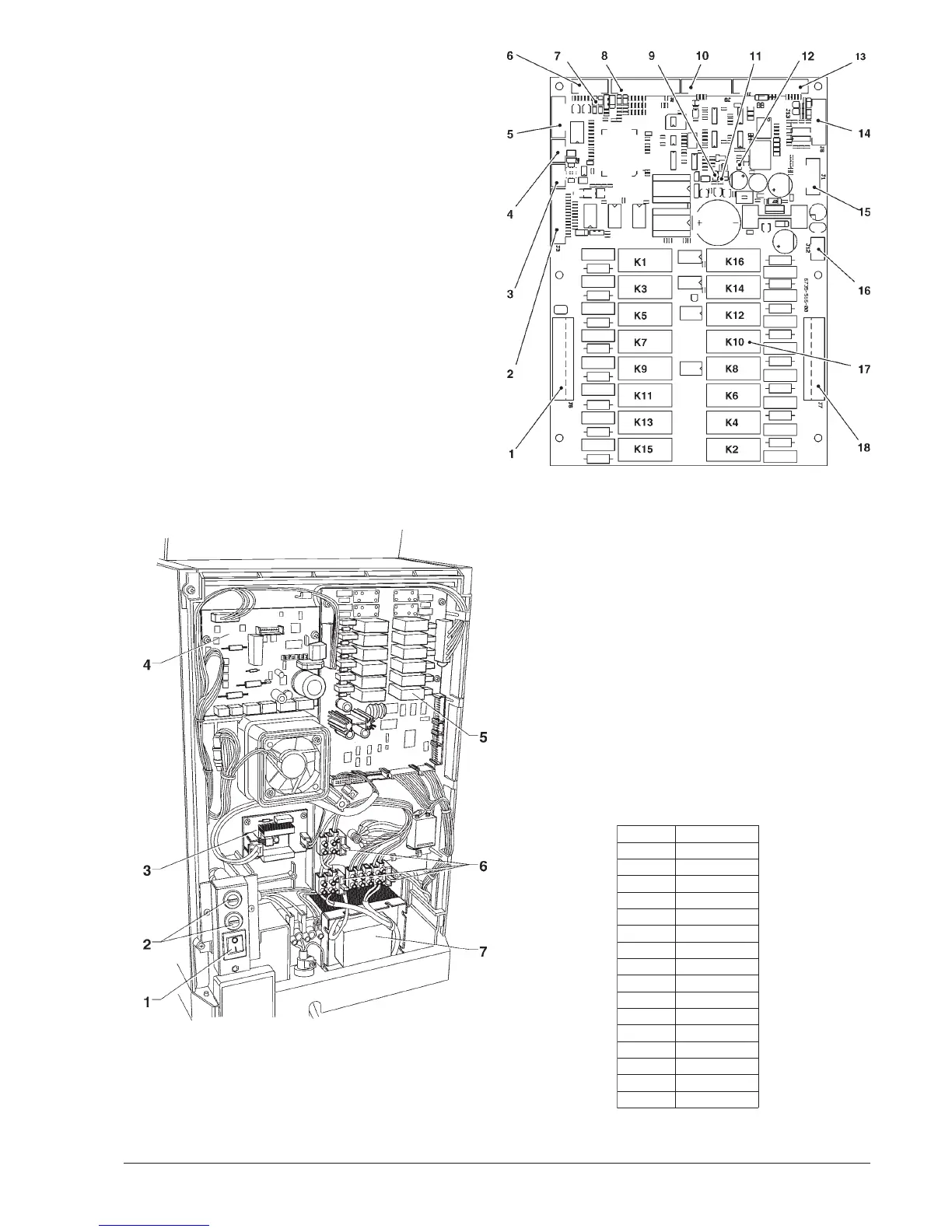

This board, placed at the back of the machine, (see Fig. 27)
processes the information from the push-button card and
from the payment system; it also controls the actuations,
the input signals and the boiler board.
The 15 V AC voltage required for board operation is
supplied by a transformer which is protected by a 800 mAT
fuse on the primary and by a 1.25 AT fuse on the secondary
winding. The voltage supply is rectified and stabilised
directly by the board.
This board houses the Flash EPROM. The control software
of the board is installed directly (via RS232 or UpKey) in the
microprocessor.
- the red LED (7) indicates the operating status of the boiler
heating element;
- the red LED (9) for resetting the CPU glows during the
board reset;
- the green LED (11) blinking indicates that the
microprocessor is working correctly;
- the yellow LED (12) indicates the presence of 5 V DC.
Fig. 27
1 - Main switch
2 - Mains fuse
3 - Boiler control board
4 - Brewer control board
5 - Actuation/CPU board
6 - Transformer fuses
7 - Transformer
Fig. 28
1 - 120 V~ users
2 - Input signal
3 - Can-Bus connection
4 - Can-Bus connection
5 - Relay expansion connection
6 - Boiler control probe
7 - Red LED - boiler heating element
8 - Input signal
9 - Red LED
10 - Not used
11 - Green LED
12 - Yellow LED
13 - To the push-button board
14 - Connector for board programming (RS232)
15 - UpKey connector
16 - Board power supply (15Vac)
17 - Relays K1÷K16
18 - 120 V~ users
YALERWERBHSERF
1K
MP
2K
desutoN
3K
1FM
4K
desutoN
5K
3VE
6K
BFVE
7K
desutoN
8K
desutoN
9K
1VE
01K
1DM
11K
2VE
21K
desutoN
31K
desutoN
41K
AEE
51K
desutoN
61K
2DM-CAM
