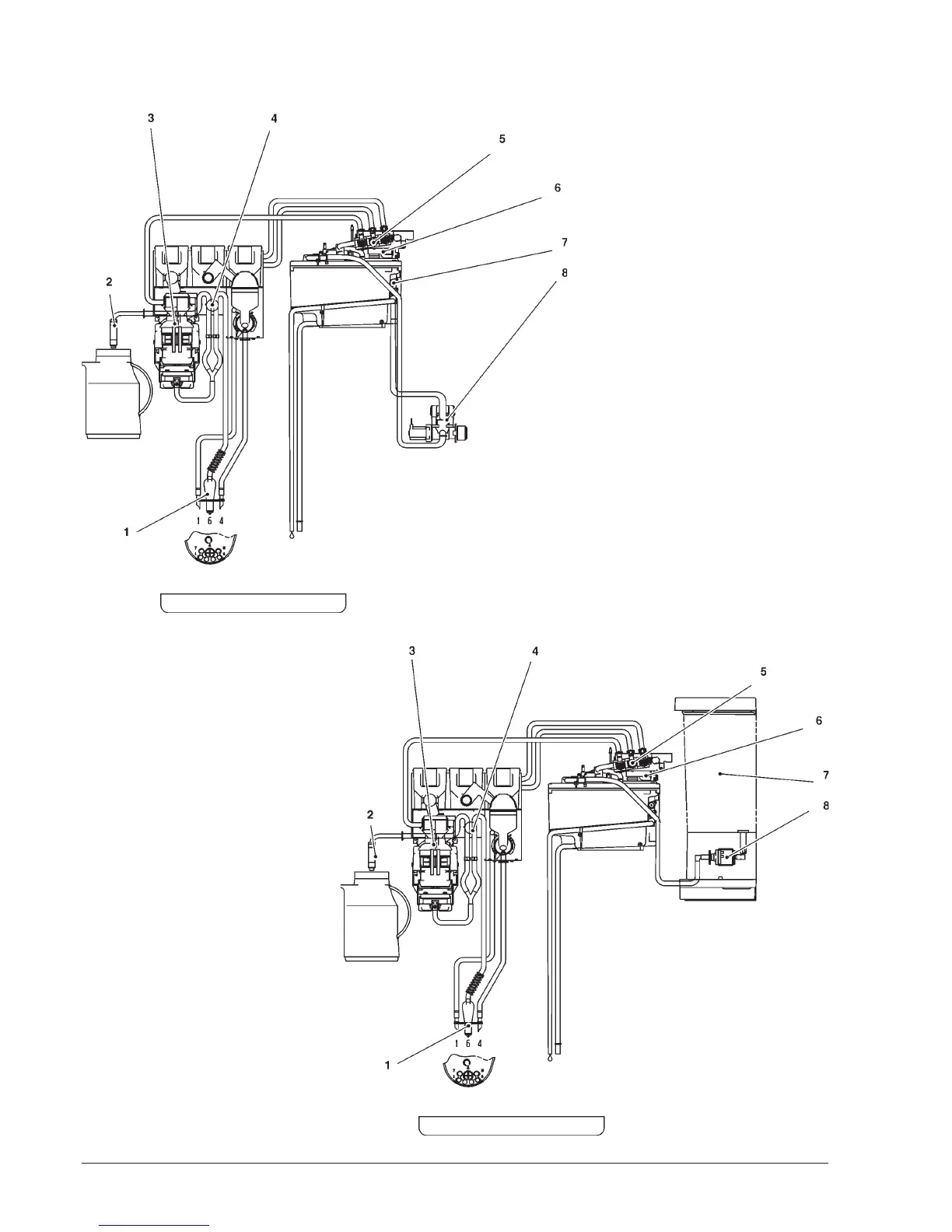

HYDRAULIC SYSTEM FOR FRESH BREW
1 - Dispensing spout
2 - External nozzle
3 - Brewer unit
4 - Spout/nozzle diverter
5 - Dispensing solenoid valves
6 - Boiler pump
7 - Safety thermostats
8 - Water inlet solenoid valve
EXTERNAL TANK (OPTIONAL)
WATER SUPPLY FROM THE MAINS
1 - Dispensing spout
2 - External nozzle
3 - Brewer unit
4 - Spout/nozzle diverter
5 - Dispensing solenoid valves
6 - Boiler pump
7 - External tank
8 - Water tank pump
