2.3 Mounting instructions
See the following chapters for details about the dimensions of the reader and the mounting brackets and the locations
of the mounting positions.
2.3.1 TRANSIT Ultimate dimensions
The picture below shows the dimensions of the TRANSIT Ultimate.
All dimensions are in mm.

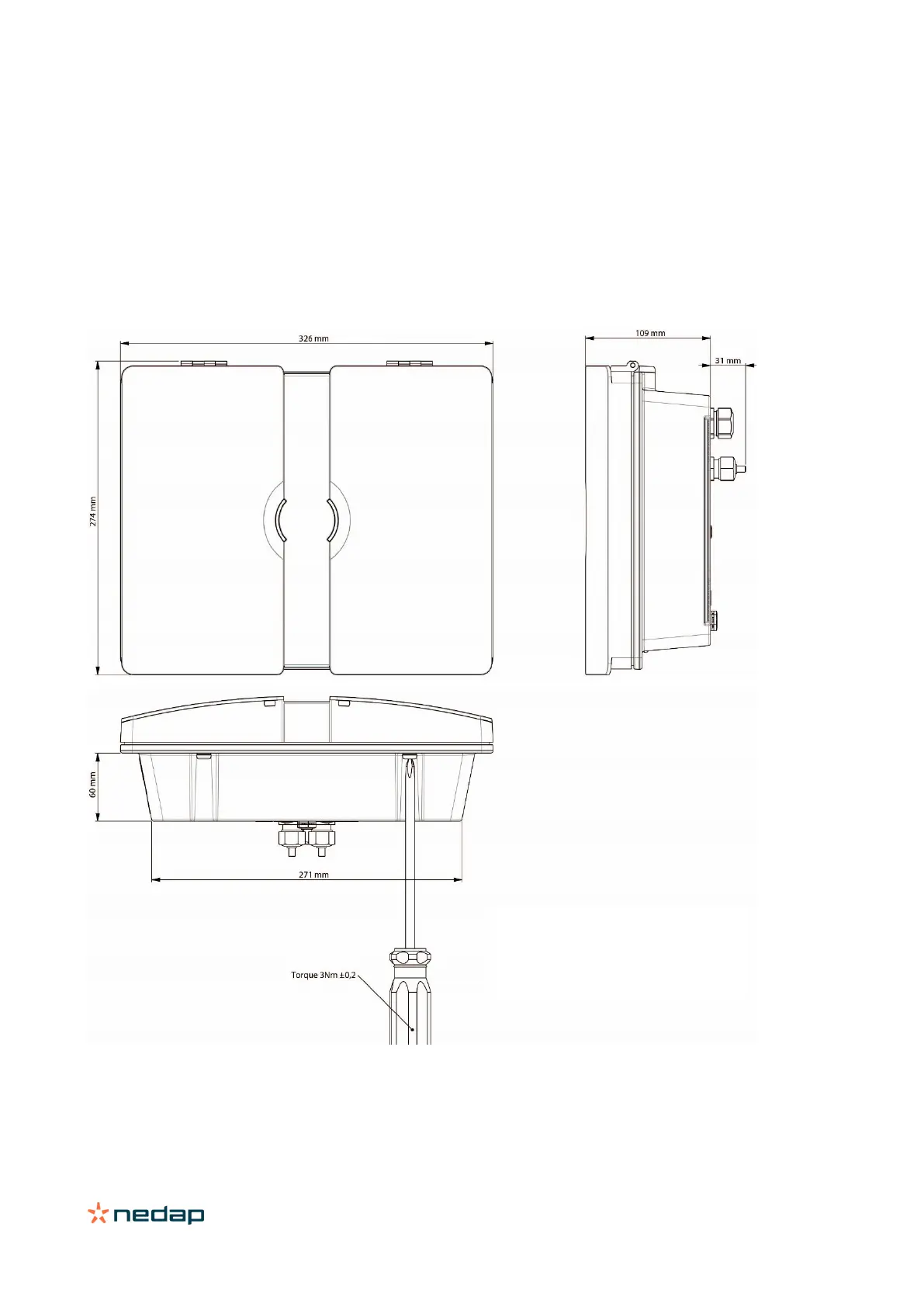

Figure 2: Dimensions TRANSIT Ultimate
To guarantee water tightness in all
positions, the cover screws and the
cable glands have to be tightened
according our recommendations.
