8.3 Display menu
This section describes the display menu structure and the information that
is displayed.
Menu Function
Main menu:
Historical data
Time menu
Date menu
Display menu
Error menu
System menu
Language menu
Select a menu
Historical data:
Energy delivered to grid today
Energy delivered to grid yesterday
Energy delivered to grid previous week
Energy delivered to grid this week
Time menu:
Time edit
The time can be set here
Date menu:
Date edit
The date can be set here
Display menu:
Default Items
Backlight Mode
Line 1:
Time
Date
Weekday
Solar power
Local AC power
Grid power
Line 2:
Line 3:
Line 4:
Information can be viewed here
Set display items to default
Set Backlight mode
Options to be set on Line 1:
Same as Line 1:
Same as Line 1:
Same as Line 1:
Error menu:
Scroll through last 10 errors
System menu:
System Reset To Reset the PowerRouter

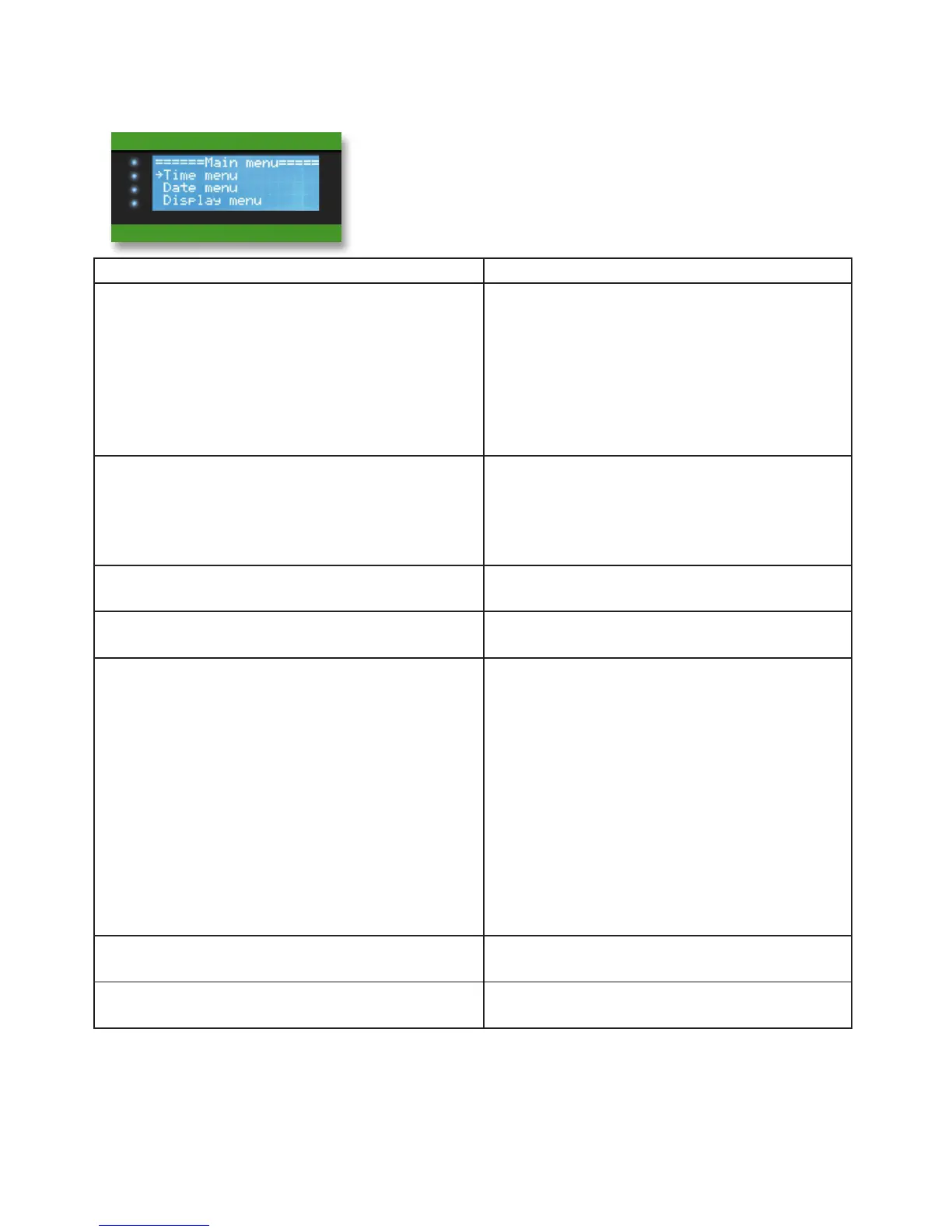

Figure 25 PowerRouter display
