Section 7.0 System Operation

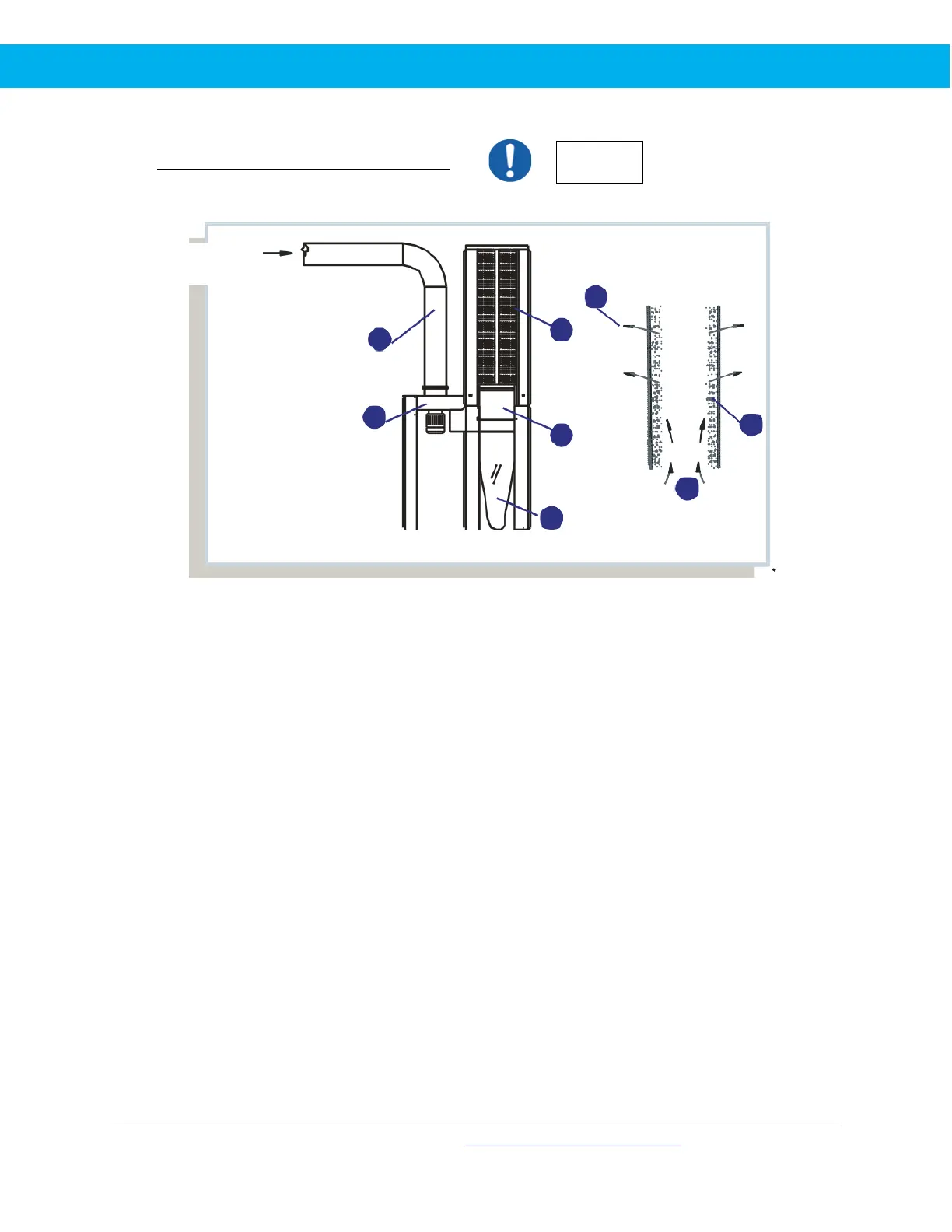

7.1 How the Dust Collector Works:
1. The dust laden air from the plant is pulled through the supply duct (item #1) and enters the
system via the COMBIFAB fan (item #2).
2. The dust laden air then enters the hopper section (item #3).
3. As the air speed reduces within the hopper, the heavier dust particles will fall down into the
collection bags or bins (item #4).
4. The remaining fine dust (item #6) travels up inside of the filter bags (item #5).
5. The clean air (item #7) exits the filter bags into the surrounding atmosphere.
5
1
2
3
7
6
4
5
COMBIFAB
Collection
Filter Bag
Filter Bag
Air Inlet Supply Duct
Hopper
Clean Air to Plant
Air and fine dust
Dust Laden
Air from Plant
NOTICE
