Neets echo plus Installation Manual

Page 11 of 13

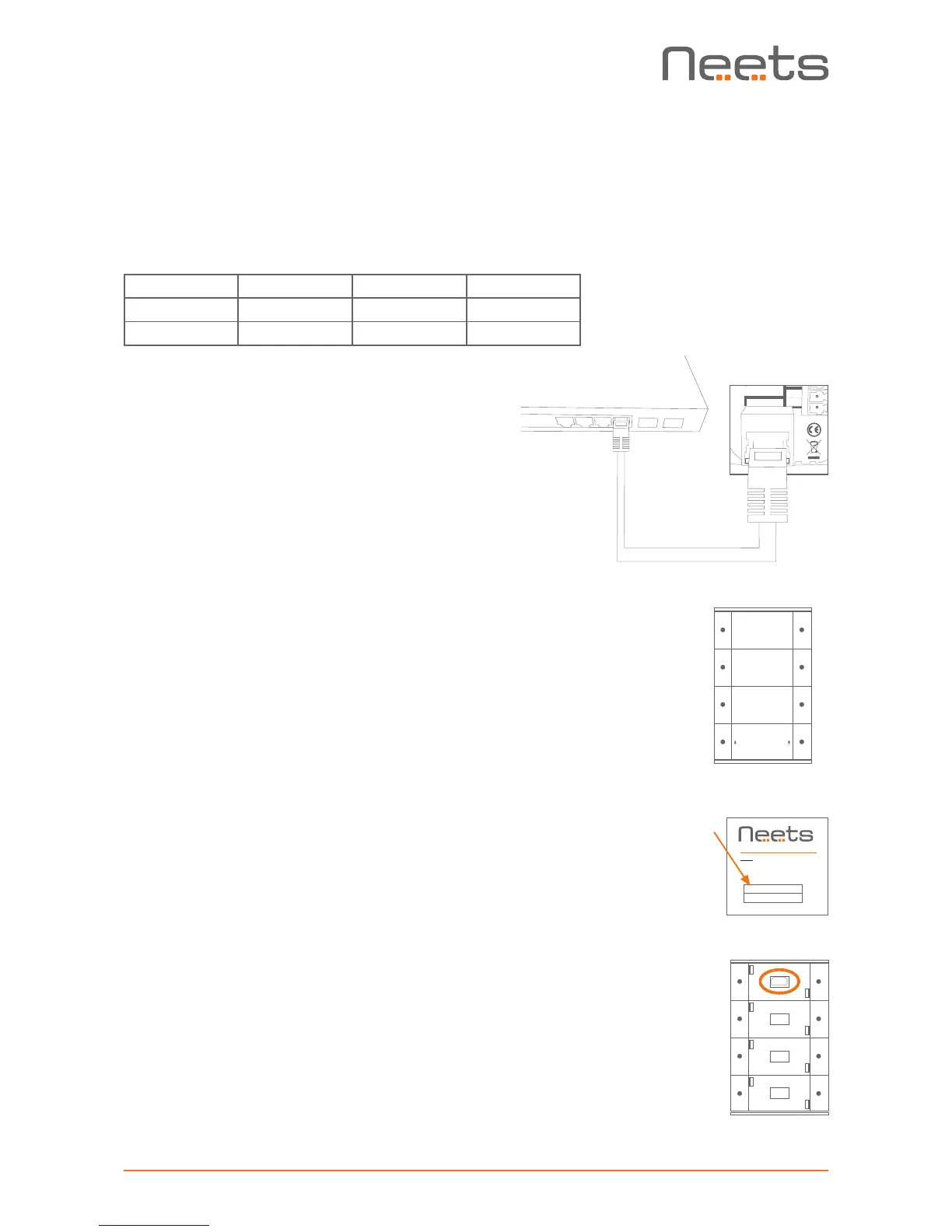

LAN port
The network connector integrates the system into a local area
network. Please connect the EcHo Plus to your LAN if using any
of the LAN features of the product.
Two LEDs on the connector indicate the following:
Color: Off On Blink
Yellow No Link Link Activity
Green 10Mbit 100Mbit
Factory default IP setting of the EcHo Plus is:
IP address: 192.168.254.253
Subnet: 255.255.255.0
10/100Mbit: Auto
DHCP: Disabled
Buttons
The eight front panel buttons are accessed by the end user to
control the AV system in which EcHo Plus functions as the con-
troller. The buttons are numbered as shown to the right.
Each button has a tactile click feedback to ensure proper
activation. Also, each button has an embedded red LED light to
indicate current status of the AV system.
Button function and LED indication are set up using the Neets
Project Designer software.
Conguration through USB port
The USB port is used exclusively for configuring the EcHo Plus
from the Neets Project Designer software. It can’t be used to
control any external devices. You can find the Neets Project
Designer software on www.neets.dk - you have to sign up to
get access to the software.
The front panel USB port is located beneath the front cover
and label. The host USB port can power the control system
while configuring, so the included AC power adaptor is not
needed when configuring the EcHo Plus. However, connect-
ing the AC power adaptor and USB port at the same time is
allowed, for example when changing configuration on an already
installed unit.
The USB connector for connecting to the EcHo Plus is type
“mini USB B 5P”. (It is available on the web as a USB A to Mini
USB B 5P).
A/V MUTE OFF
DVD PC 1
BLUERAY PC 2
SCREEN
1 5
2 6
3 7
4 8
Neets Control
EcHo Plus, DK
P/N#: 310-0252
LAN
GND
GND
I/O 1
I/O 2
I/O 3
PWR
NDA
NCL
GND
GND
TX-1
TX-2
RX-1
GND
12V
234
