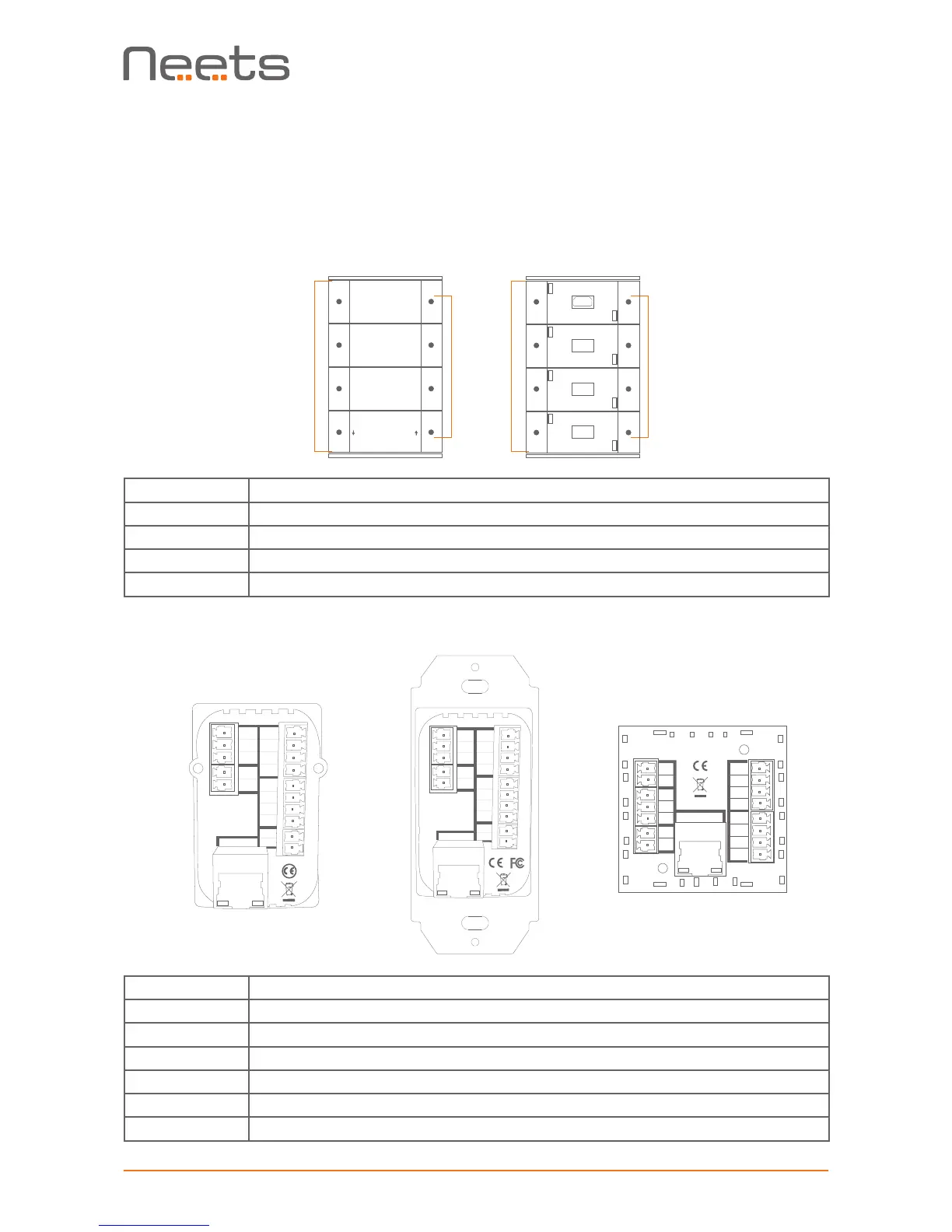

Quick guide to the EcHo Plus
Buttons, indicators and connectors are available on the front and rear panels.
These are shown below:
Front:
Number: Description
1 Push buttons for controlling the AV setup
2 Red LED lights for indication of AV setup status
3 Front cover with label for button description
4 Mini USB for programming (behind front cover)
Rear:
Number: Description
1 RS-232 port, Bi-directional
2 RS-232 or IR port, Uni-directional
3 NEB bus port
4 Input/Output connector
5 12 VDC power input
6 RJ-45 Network (LAN) connector
1
A/V MUTE OFF
DVD PC 1
BLUERAY PC 2
SCREEN
3
2
1
2
Neets Control
EcHo Plus, US
P/N#: 310-0252
LAN
GND
GND
I/O 1
I/O 2
I/O 3
PWR
NDA
NCL
GND
GND
TX-1
TX-2
RX-1
GND
12V
DK version US version EU version
1
3
4
5
2
6
Neets Control
EcHo Plus, DK
P/N#: 310-0252
LAN
GND
GND
I/O 1
I/O 2
I/O 3
PWR
NDA
NCL
GND
GND
TX-1
TX-2
RX-1
GND
12V
1
3
4
5
2
6
With front cover Without front cover
P/N#: 310-0152
LAN
GND
GND
I/O 1
I/O 2
I/O 3
PWR
NDA
NCL
GND
GND
TX-1
TX-2
RX-1
GND
12V
Neets Control
EcHo Plus, EU
2
6
3
5
1
4
4
