en Appliance door
24

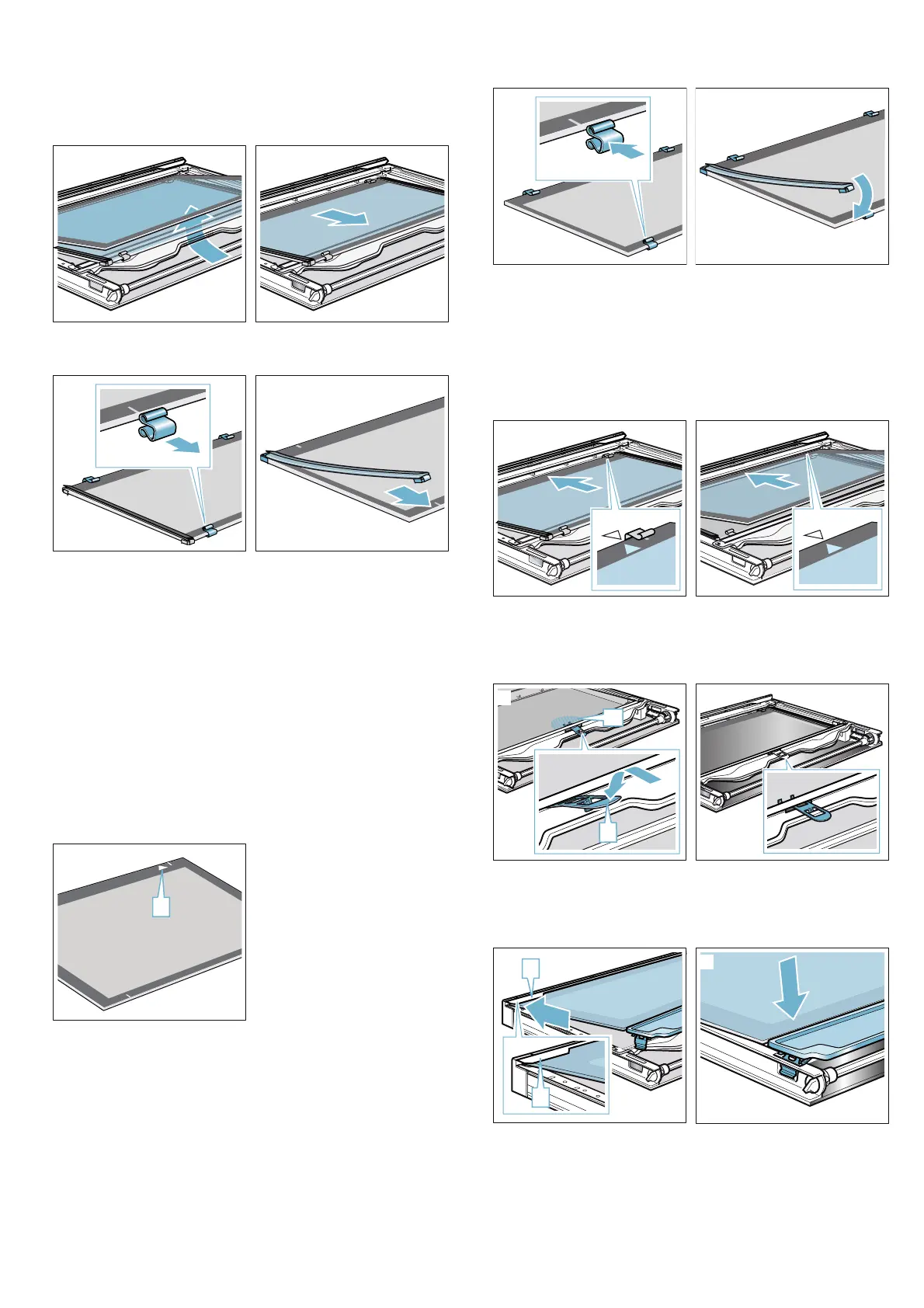

6. Lift the first and second intermediate panels from
below (Fig. $) and remove them in the direction of
the arrow (Fig. %).
7. Remove the spacers (Fig. &) and seals (Fig. ') for
cleaning if needed.
8. Clean the door panels on both sides with glass
cleaner and a soft cloth.
:Warning
Risk of injury!
Scratched glass in the appliance door may develop
into a crack. Do not use glass scrapers, or sharp or
abrasive cleaning aids or detergents.
9. Dry the door panels and refit them.
Fitting
Note: When fitting the door panels, make sure that they
are in the original order.
1. Insert the intermediate panel so that the ‚ arrow on
the right-hand side is pointing upwards (Fig. !).
2. Check the fit of the four spacers and two seals on
the intermediate panel:
– Position the spacers so that each of the lines
runs through the centre (Fig. ").
– Attach the seals at the corners (Fig. #).
3. Insert the intermediate panel with the seals and
spacers. The arrow on the intermediate panel must
line up with the arrow on the frame (Fig. $).
4. Insert the second intermediate panel without the
seals and spacers and push it in the direction of the
arrow until it is fitted in the frame. The arrow on the
intermediate panel must line up with the arrow on the
frame (Fig. %).
5. Push down on the intermediate panel around ƒ, slide
the holder „ in at an angle and push down until it
clicks into place (Fig. &).
The holder has been inserted (Fig. ').
6. Insert the inner glass into the mounting rail … at an
angle towards the back (Fig. ().
7. Push the inner glass downwards until it clicks into
place (Fig. )).
1
D
2
F
E
G
G
