Nelsen Corporation AIO Plus Connected Series User Manual

12

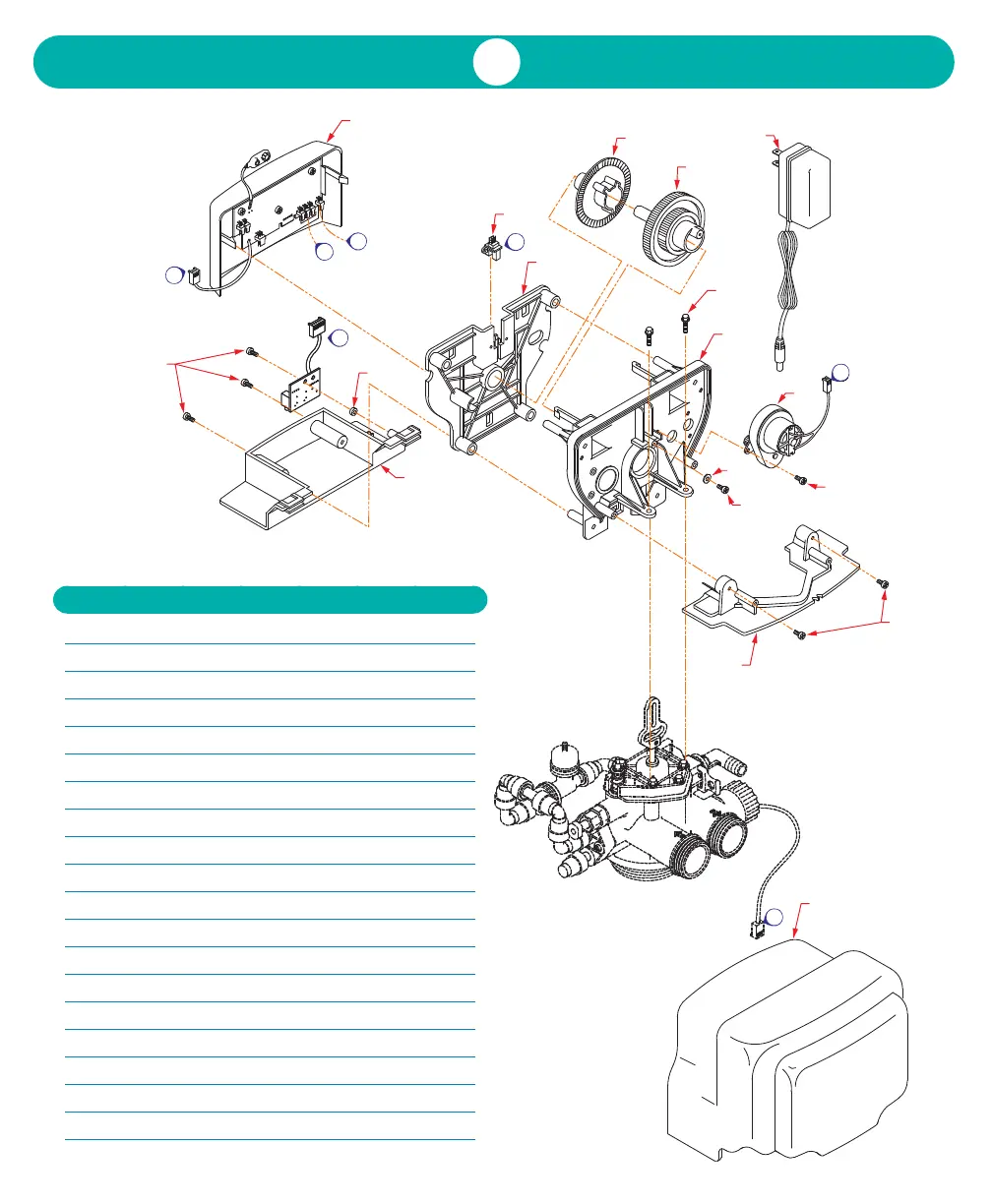

Powerhead Assembly AIO Plus Connected Series
3
4
2
5
6
7
8
10
11
15
14
13
18
17
12
16
E
1
E
P
M
P
M
F
9
LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS
Ref Description Part# Qty
0 Powerhead Assembly 20010N100 1
1 Circut Board Assembly CS-BOARD ENCLOSURE 1
2 Encoder 20001X124 1
3 Front Plate 20001X004 1
4 Encoder Wheel 20001X007 1
5 Main Gear 21001X120 1
6 Power Supply CS-TRANS 1
7 Back Plate 20001X005 1
8 Lower Front Base for Cover 20111X002 1
9 Motor 20016X006 1
10 Lower Back Base for Cover 20111X003 1
11 Slide Cover 20111X017 1
12 Motor Screw SC2 2
13 Screw SC9 2
14 Screw SC10 3
15 Piston Screw 20001X003 1
16 Valve Hex Screw 20001X001 2
17 Circuit Board Washer 20111X014 1
18 Piston Washer 20001X002 1
