Nelsen Corporation AIO Plus Connected Series User Manual

14
Valve Body Assembly - Parts AIO Plus Connected Series

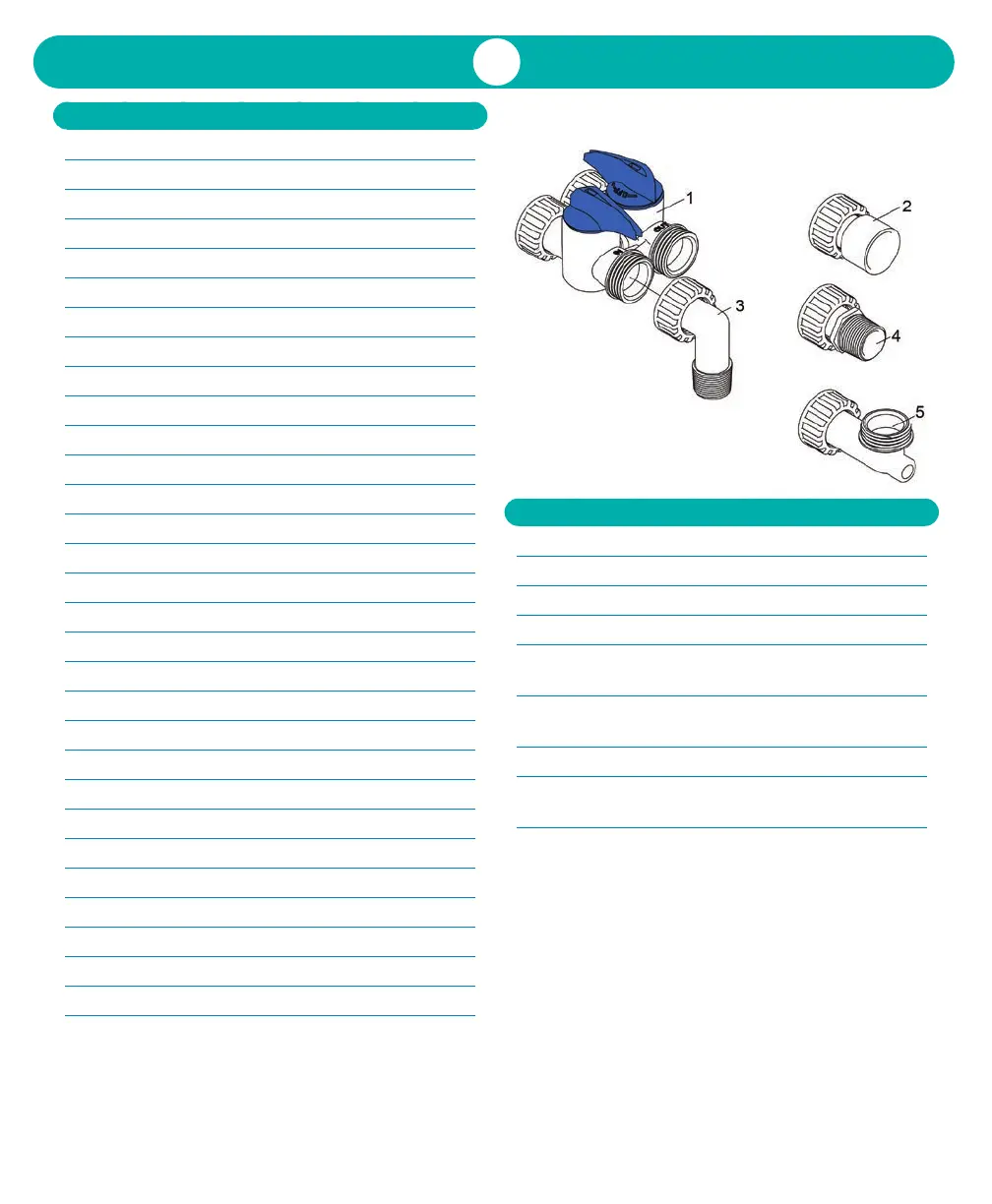

Bypass Assembly
Ref Description Part# Qty
1 Piston Assembly CS-PISTON 1
2 10-24 X 13/16 Hex Head 20001X001 5
3 Seal and Spacer Kit CS-SEALS 1
4 Bottom Spacer N/A 1
5 DLFC 5.0 Button 20251X272 1
5 DLFC 7.0 Button 20251X273 1
6 Drain Line Flow Control Housing 20017X268 1
8 DLFC Clip 20017X214 1
9 Brine Valve 20009X225 1
10 Brine Line Flow Control (BLFC) SS 20009X228 1
11 Brine Line Ferrule 20251X305 1
12 3/8" Plug 20009X005 1
13 10-24 X 1 Hex Screw 20001X226 2
14 3/8" Push Lock Plug 20009X010 1
15 Injector Cap 20009X001 1
16 Injector Cap Seal 20001X224 1
17 Injector Plug 20009X001 2
18 Injector Screen 20001X222 1
19 Tank O-Ring 20561X205 1
20 Distributor Tube O-Ring 20561X204 1
21a Flow Meter CS-METER 1
21b Flow Meter Plug 20017X201 1
22 3/8" Push Lock 90 Elbow GA-Q0620626BV 3
23 External Air Injection Assembly 20017X010 1
24 Injector w/o Check Ball 20017X219 1
25 Stem Adapter GA-S0660416B 1
26 Stem Elbow GA-T0620666B 2
27 Inlet Check Valve 20017X293 1
28 Extension 20017X292 1
29 Valve Body Complete VH2-A-BT-N-D15 1
Ref Description Part#
1 Bypass CS-BYPASS
2 1" Female Straight Slip (set of 2) CS-10S-PVC-SLIP
3 1" NPT Elbow (set of 2) CS-10E-PVC-MIPT
4 1" NPT Straight (set of 2) CS-10S-PVC-MIPT
5a Elbow, Vertical Adapter Blank
(set of 2) CS-10-90-PVC-BVA
5b Elbow, Vertical Adapter 1/4” NPT
Tapped (set of 2) 20017X294
3/4" Male NPT Straight (set of 2) CS-07S-PVC-MIPT
3/4" Brass Sharkbite Straight
(set of 2) CS-07-SHARK
