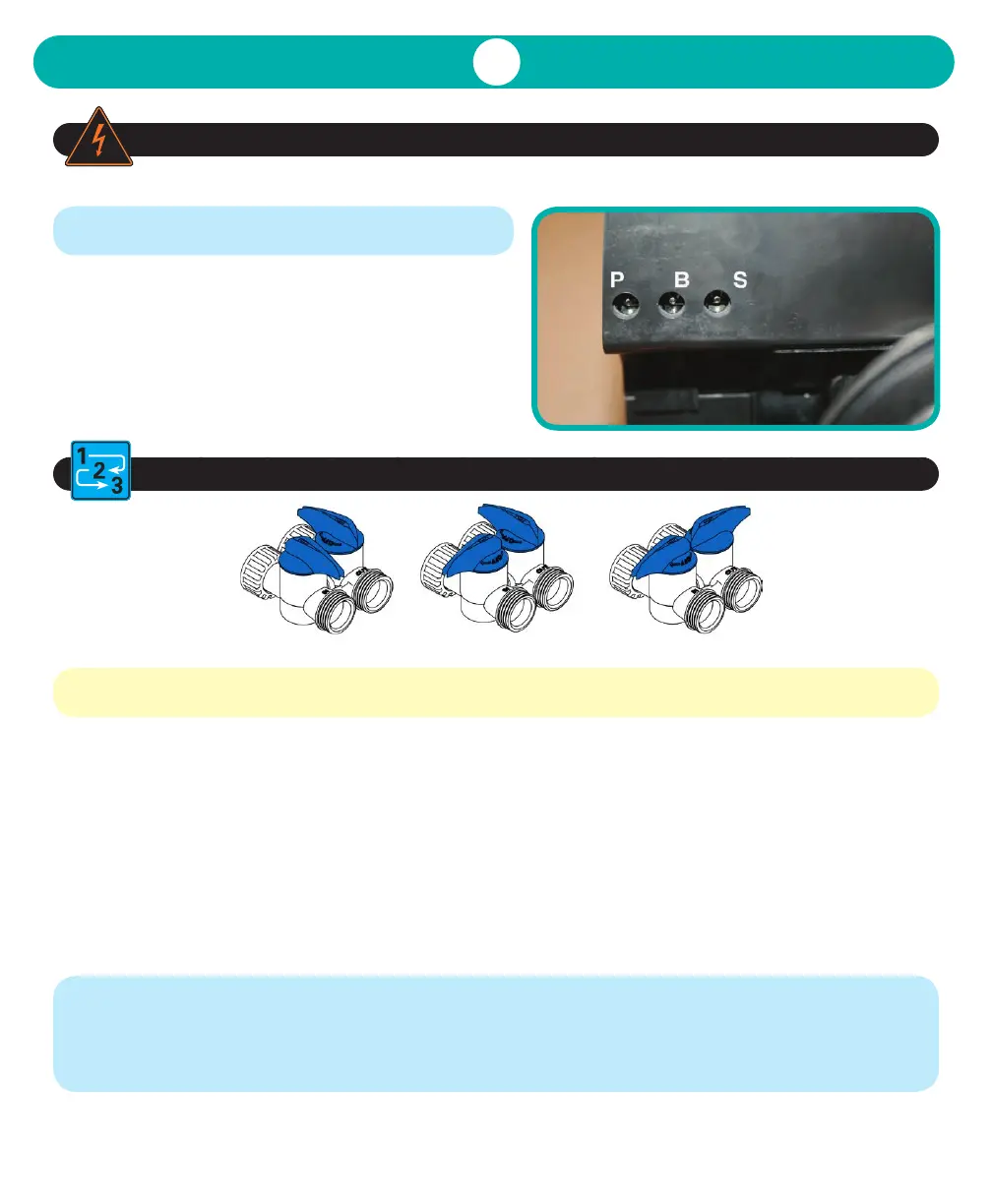

Electrical Connection

1. Connect the power cord and plug power supply into a 120 volt / 60 Hz receptacle.

NOTE: Do not plug into an outlet controlled by a wall

switch or pull chain that could inadvertently be turned off

Electronic Connections

P = POWER SUPPLY

B = POWERED IN BACKWASH STEP ONLY (CYCLE #1)

S = POWERED FOR ENTIRE REGEN. CYCLE

SYSTEM START-UP PROCEDURE

Service Off Bypass

IMPORTANT NOTE: Tank should be filled with water and media and must have been soaking for at least 1 hour

before initial pressurization.

1. After all plumbing and drain line connections have been made, confirm the Bypass Valve is in

the BYPASS position.

2. Turn main water supply back on and check for leaks.

3. Cycle the control valve to RAPID RINSE. Once the rapid rinse step is reached, leave the OUTLET side of the

Bypass Valve in the CLOSED position. Slowly open the Bypass Valve INLET side to the Service position, allowing

air to escape and water to flow down through mineral tank and out the drain line. Let it continue to run for the

entire rapid rinse step. There may be colored water or media fines during this initial flow.

4. Once the rapid rinse ends, open a cold, treated watertap. Slowly place Bypass into Service. Let water run to home

for several minutes to allow air and any media fines to be released from the lines. Once air is evacuated and water

runs clear, close the tap.

NOTE: Any time media (other than very fine mineral on initial startup) is apparent in the service lines, it usually

indicates one of the following problems:

A. The unit is plumbed in backward allowing the media to be carried in the service line.

B. The distributor tube inside the tank is not seated inside the valve or is damaged.

5. No further regeneration should be necessary at this time. If left at the default settings, the filter will automatically

initiate an air replenish cycle each night and will backwash every six days. If desired, these settings can be

changed in the main menu, or from the “advanced settings” screen in the Legacy View App.

Installation Requirements AIO Plus Connected Series

Nelsen Corporation AIO Plus Connected Series User Manual
