3000 series ASSEMBLY INSTRUCTIONS
Nelson Irrigation Corporation
848 Airport Rd., Walla Walla, WA 99362 USA
Tel: 509.525.7660 Fax: 509.525.7907 info@nelsonirrigation.com
Nelson Irrigation Corporation of Australia Pty. Ltd.
35 Sudbury Street, Darra QLD 4074 info@nelsonirrigation.com.au
Tel: +61 7 3715 8555 Fax: +61 7 3715 8666
WWW.NELSONIRRIGATION.COM

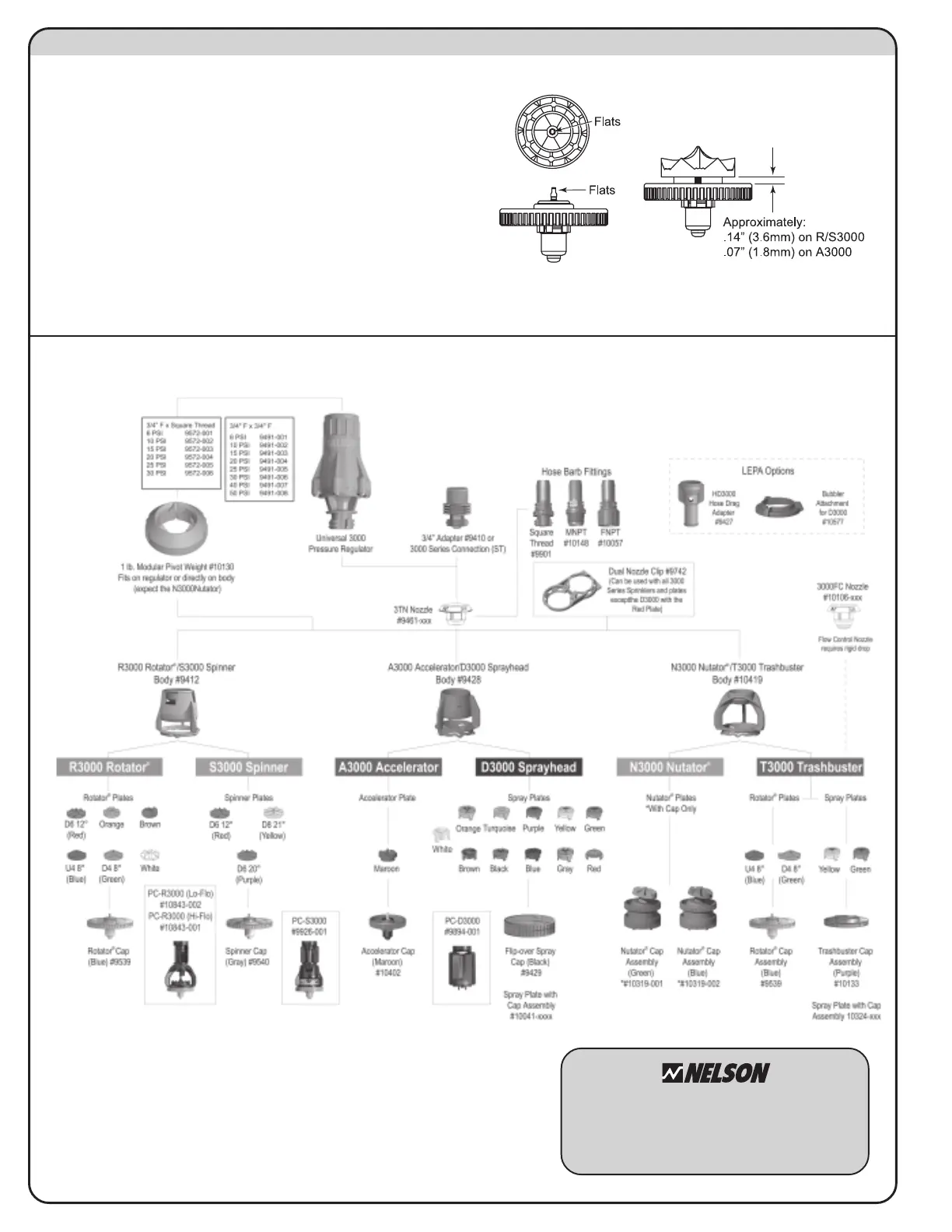

3. PLATE ASSEMBLY
Plate to Cap. For R3000 & S3000 Sprinklers — Align the
flats on the shaft with the flats on the bottom of the plate.
Once aligned press the plate firmly onto the shaft, making
sure that the plate has gone past two stops (or two clicks).
For A3000 Sprinkler — Press the plate firmly onto the shaft.
Continue to press past the first stop (or click).
PRESS PLATE
FIRMLY ON SHAFT.
4. PIVOT PRODUCT PARTS BREAK DOWN
