GENERAL ASSEMBLY

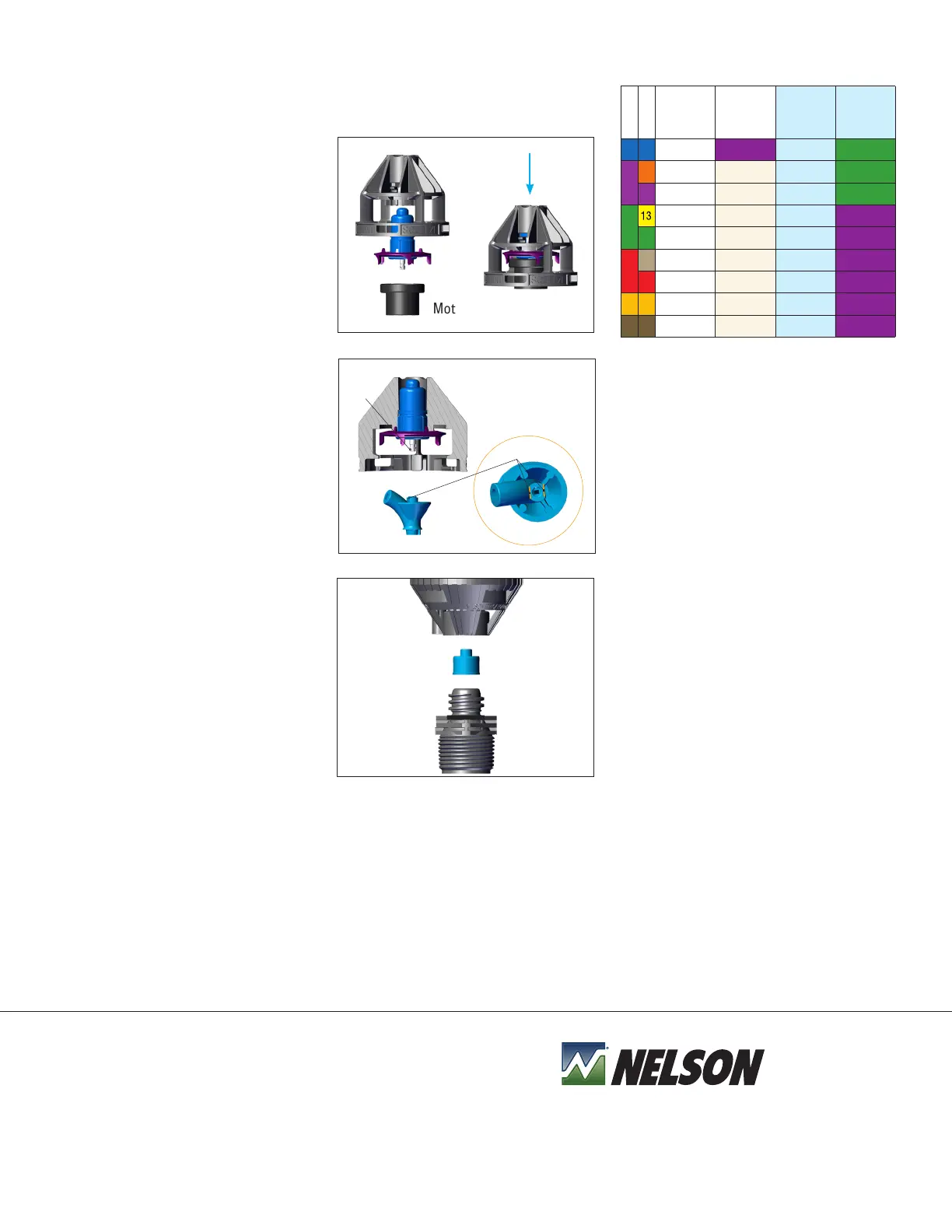

1. SELECT THE NEW PARTS — nozzle, plate and/or motor that will be used in the assembly.
Always be sure the nozzle size is recommended for the plate and the motor. See graph
on right.
2. While holding the cap in one hand,
INSTALL THE MOTOR by first setting the
diffuser in place (small teeth against the
ridges in the cap) and topping it off with
the washer. Direct the motor into the hole
of the cap assembly. Align the hole of the
Motor Assembly Tool (the disc that ships
with part #12215) on the shaft of the
motor and snap motor into place.
3. Next, ASSEMBLE THE PLATE TO THE CAP
ASSEMBLY. Place the cap assembly in
one hand and the WF Plate in the other.
Orient the two components so the flats
of the motor shaft and plate are parallel
as shown below. Gently push the plate
onto the shaft. The plate is correctly
installed once you have felt two distinct
“clicks” as you push the plate on. Do not
continue pushing after you have felt the
plate snap into place. Damage to the plate
and/or other parts may occur, resulting in
unsatisfactory sprinkler operation.
2. CONNECT THE CAP/PLATE ASSEMBLY TO
THE BODY by holding the body in one
hand and fastening the cap/assembly
with a clockwise turn of the other hand.
3. PLACE A 2TN NOZZLE INTO THE BASE OF
THE WF BODY with the small end of the
nozzle pointed towards the cap.
4. PLACE A QUICK CHANGE ADAPTER INTO THE
BASE OF THE BASE OF THE BODY and turn
clock-wise. Confirm that there is a o-ring
in place. Assembly is now complete.
SPRINKLER LESS ADAPTER
COMPLETE
R2000WF CAP
& BODY ASSY
WF MOTOR
COLOR
COMPLETE
R2000LP CAP
& BODY ASSY
LP
MOTOR
COLOR
10 10 9928-1010 Purple 9929-1010 Green
12
11 9928-1211 Ivory 9929-1211 Green
12 9928-1212 Ivory 9929-1212 Green
14
13 9928-1413 Ivory 9929-1413 Purple
14 9928-1414 Ivory 9929-1414 Purple
16
15 9928-1615 Ivory 9929-1615 Purple
16 9928-1616 Ivory 9929-1616 Purple
18 18 9928-1818 Ivory 9929-1818 Purple
20 20 9928-2020 Ivory 9929-2020 Purple
NOZZLE
PLATE
Motor Assembly Tool
Motor
Plate
Flat sides of the shaft
must be parallel
to the flats at top
center of the plate.
Flats on plate
Flat side
of shaft
