Neopost M3000 - Page 10

10
Slide and envelope catch tray

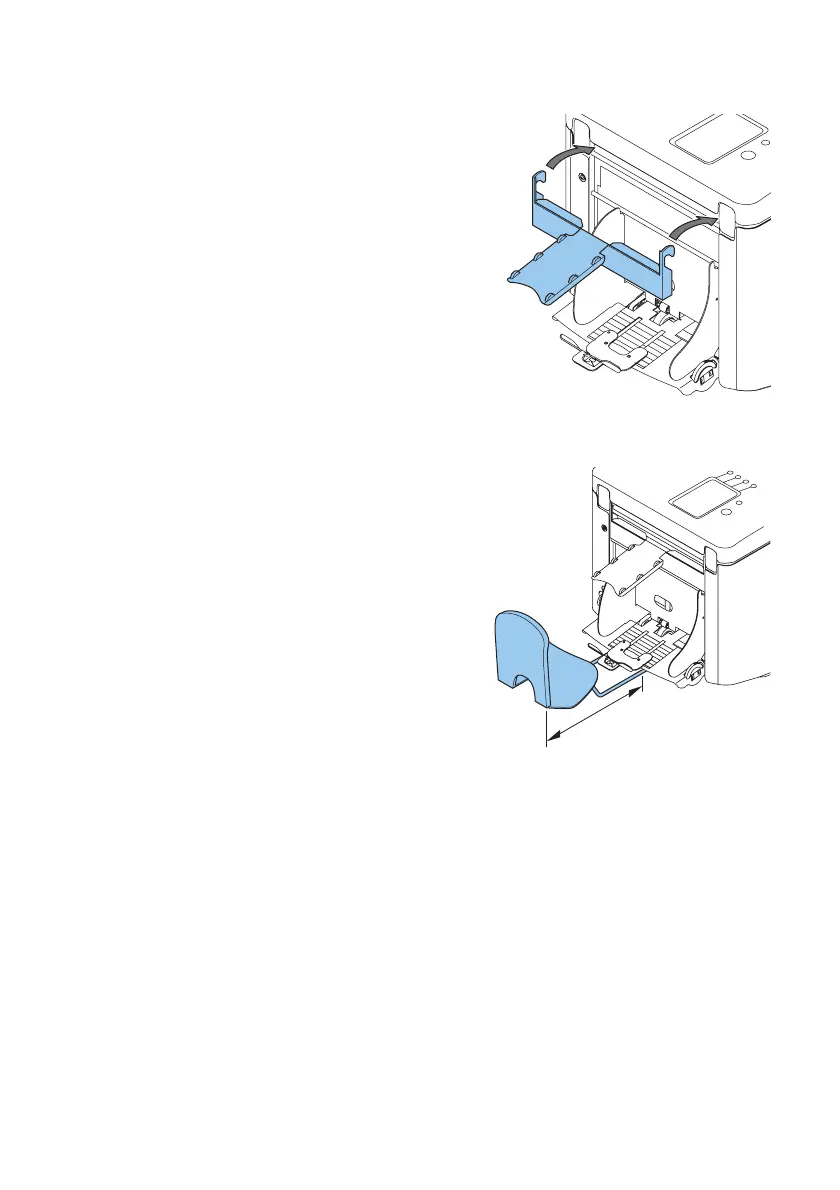

6. Attach the slide as shown in the figure.
7. Position the envelope catch tray into the holes
underneath the envelope hopper as shown in
the figure.
The distance A should be approximately 1.5 x
the envelope height.
A
