Net Optics 10/100/1000 Bypass User Manual

12
10/100/1000 Bypass Switch with Heartbeat
Connecting to the In-line Device
1. Connect Monitoring Port C to the in-line device using a CAT5 RJ45
straight through cable.
2. Connect Monitoring Port D to the in-line device using a CAT5 RJ45
straight through cable.
3. Verify that the Monitoring Ports are cabled to the in-line device.

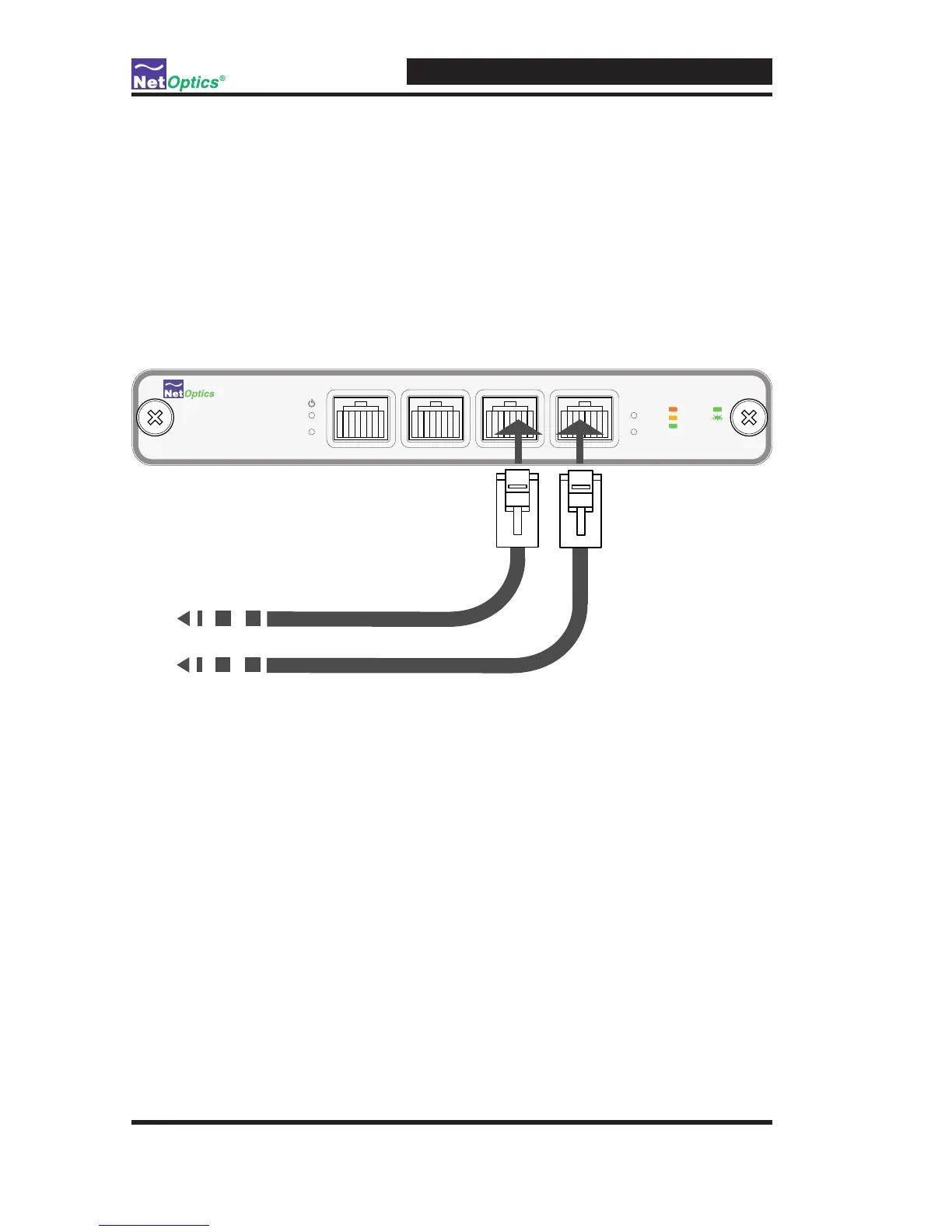

Figure 6: Connecting the Monitor Ports
www.netoptics.com
1
2
Bypass Switch
BA 1 2
Network Monitor
®
OFF
ON
BYPASS
OUT IN OUT IN OUT IN OUT IN
10
100
1000
LINK
ACT
To monitoring device
To monitoring device
