h. Insert the SFP or QSFP modules that were removed onto the mezzanine card.
Step 7: Move the NV battery
When replacing the controller module, you must move the NV battery from the impaired
controller module to the replacement controller module
1. Locate and move the NVMEM battery from your impaired controller module to the replacement controller
module.

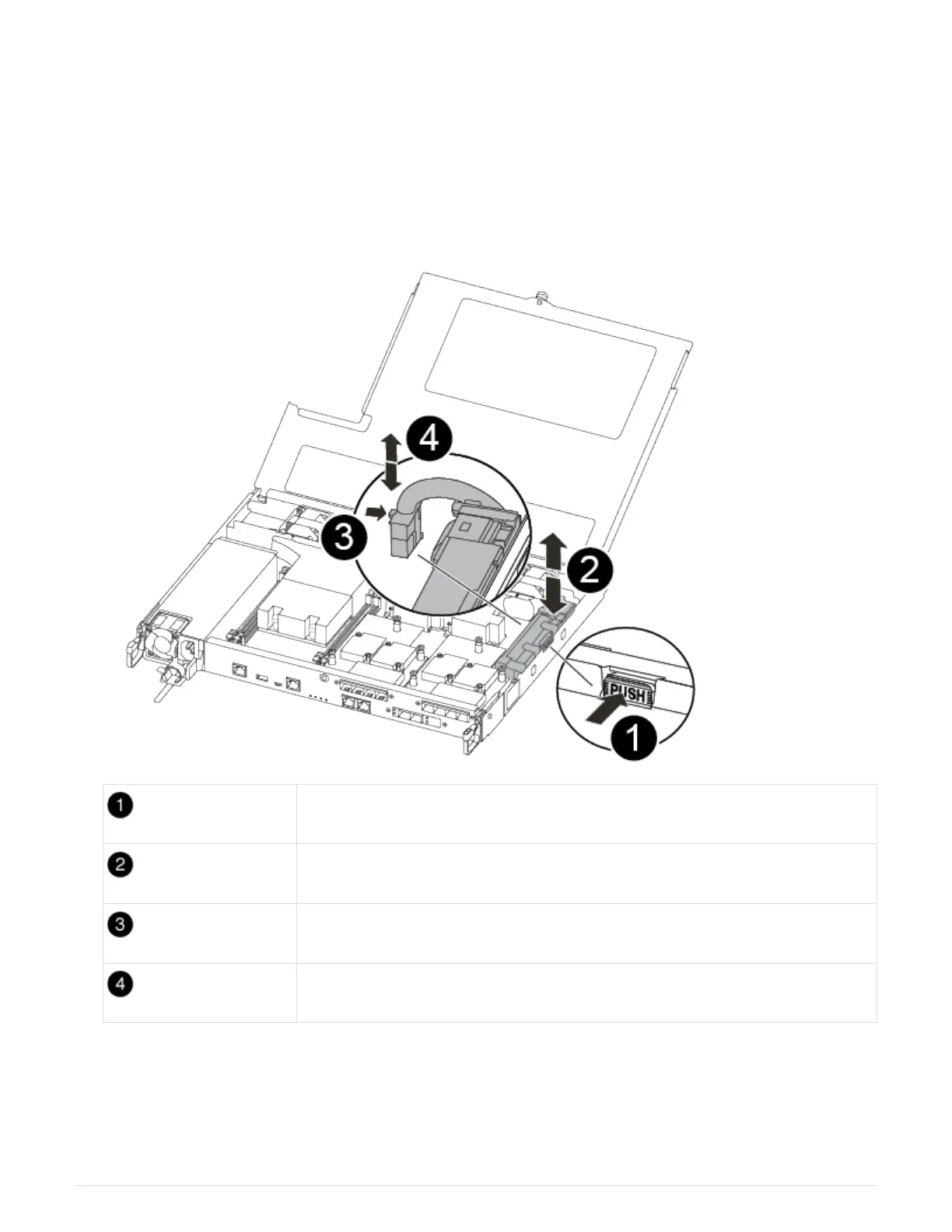

Squeeze the clip on the face of the battery plug.
Unplug the battery cable from the socket.
Grasp the battery and press the blue locking tab marked PUSH.
Lift the battery out of the holder and controller module.
a. Locate the battery plug and squeeze the clip on the face of the battery plug to release the plug from the
socket.
b. Grasp the battery and press the blue locking tab marked PUSH, and then lift the battery out of the
holder and controller module.
46
