As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps
1. Use the animation or illustration to complete the cabling between the controllers and to the switches:
Switched cluster cabling
2. Go to Step 4: Cable controllers to drive shelves for drive shelf cabling instructions.
Step 4: Cable controllers to drive shelves
You can cable either NSS224 or SAS shelves to you system.
Option 1: Cable the controllers to a single drive shelf
You must cable each controller to the NSM modules on the NS224 drive shelf.

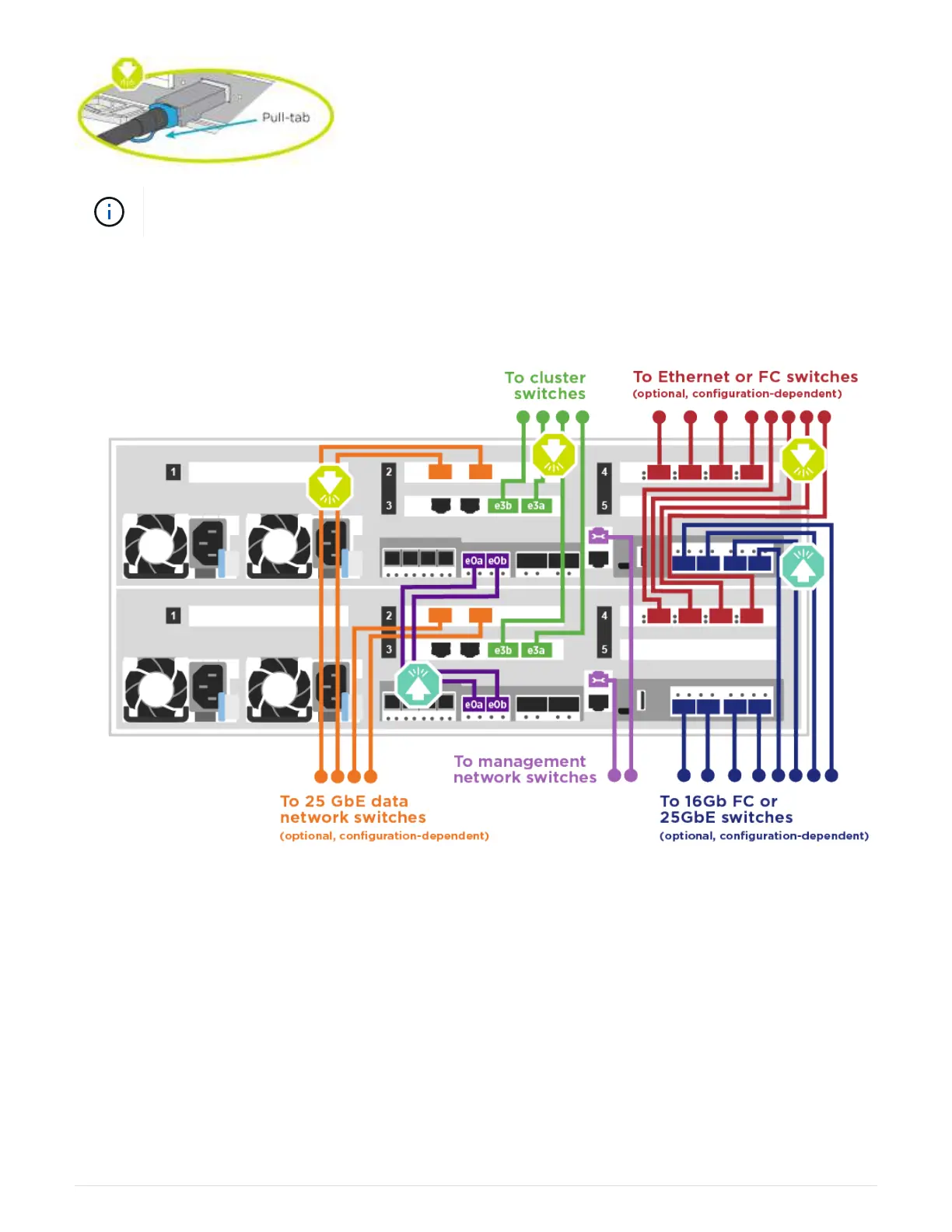

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab for
the NS224 are up.
