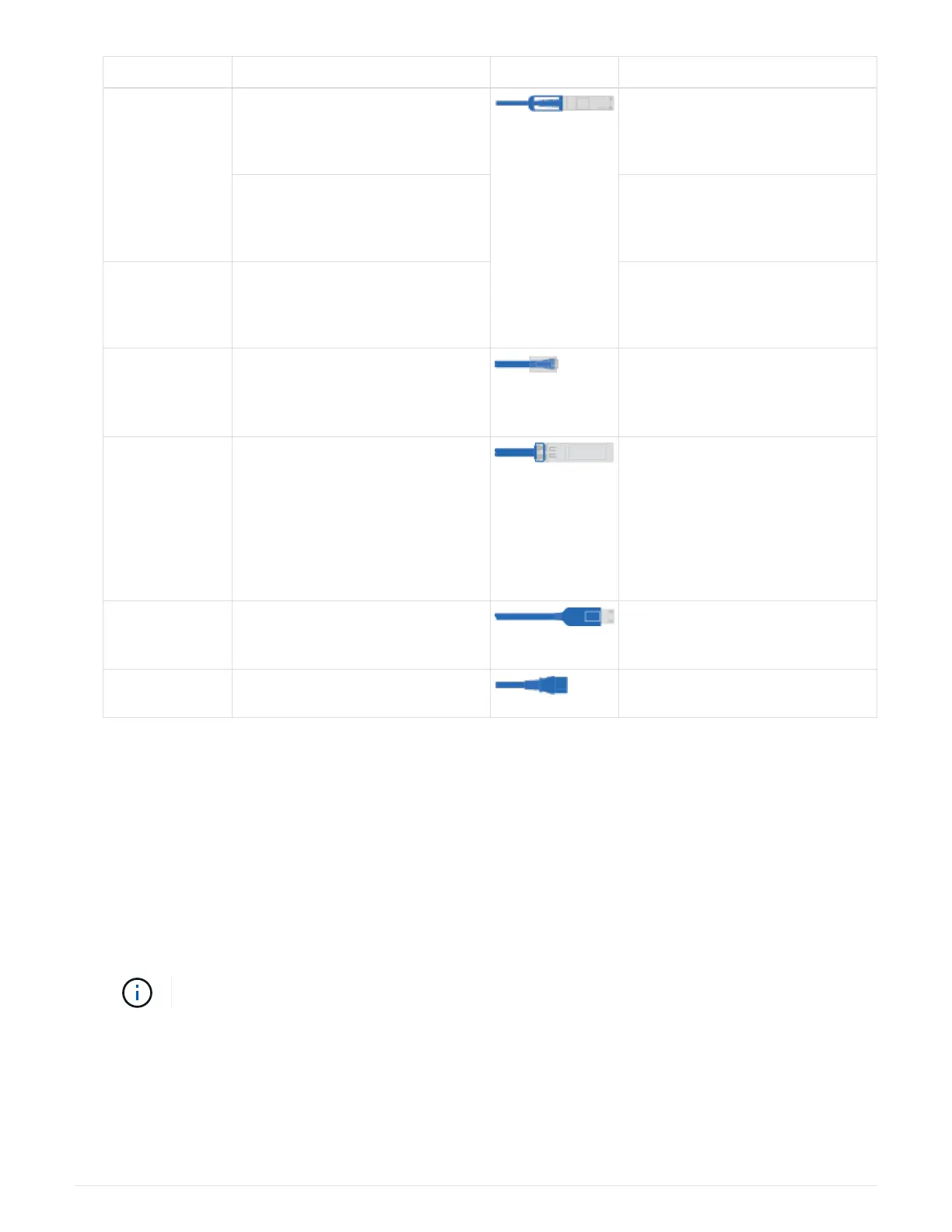

Type of cable… Part number and length Connector type For…
25 GbE cable X66240A-05 (112-00595), 0.5m;
X66240-2 (112-00573), 2m
Cluster interconnect network
X66240A-2 (112-00598), 2m;
X66240A-5 (112-00600), 5m
Data
100 GbE cable X66211-2 (112-00574), 2m;
X66211-5 (112-00576), 5m
Storage
RJ-45 (order
dependent)
Not applicable Management network (BMC and
wrench port) and Ethernet data
(e0a and e0b)
Fibre Channel X66250-2 (112-00342) 2m;
X66250-5 (112-00344) 5m;
X66250-15 (112-00346) 15m;
X66250-30 (112-00347) 30m
Micro-USB
console cable
Not applicable Console connection during
software setup
Power cables Not applicable Powering up the system
5. Review the NetApp ONTAP Configuration Guide and collect the required information listed in that guide.
ONTAP Configuration Guide
Step 2: Install the hardware
You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.
1. Install the rail kits, as needed.
2. Install and secure your system using the instructions included with the rail kit.
You need to be aware of the safety concerns associated with the weight of the system.
1095
To Next Page
