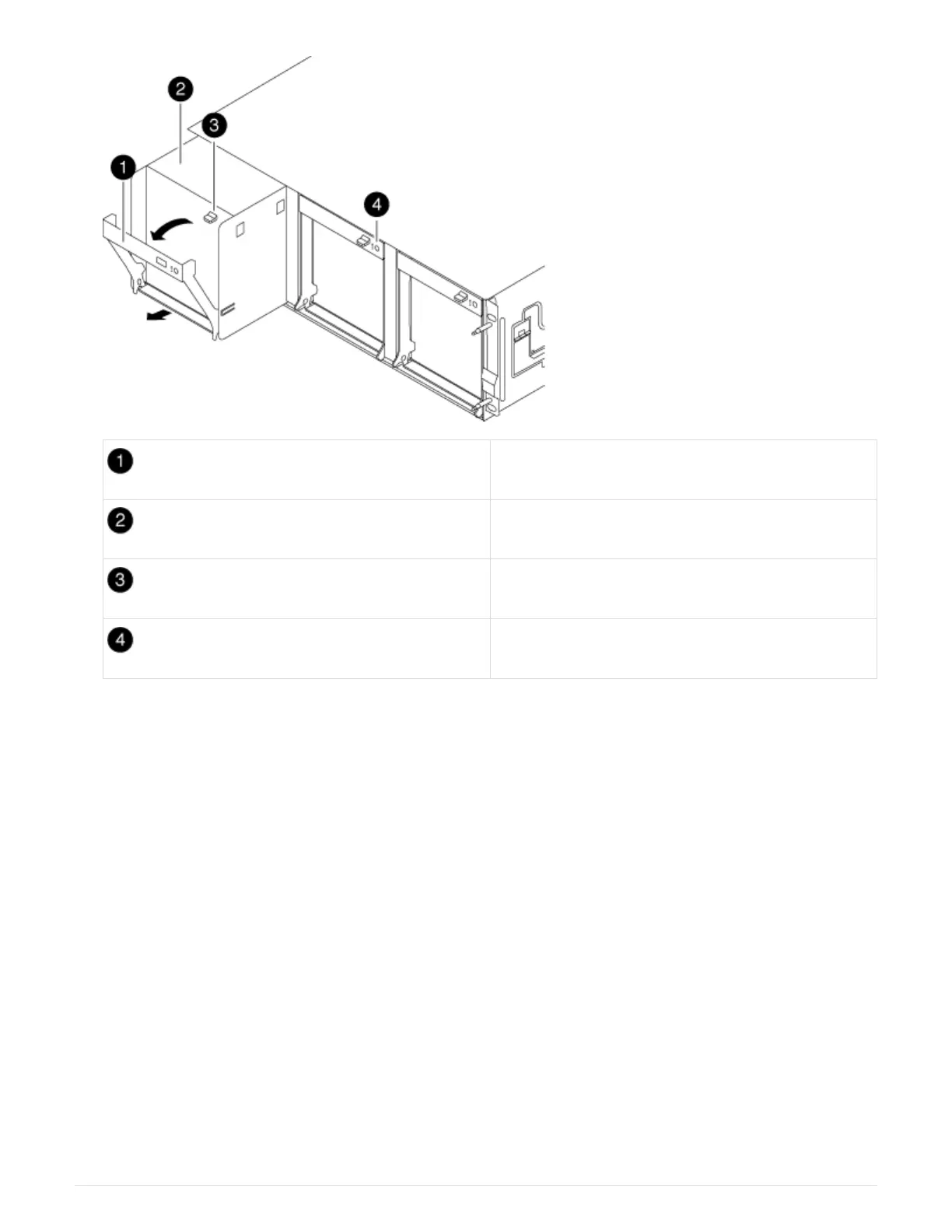

Cam handle
Fan module
Cam handle release latch
Fan module Attention LED
5. Pull the fan module straight out from the chassis, making sure that you support it with your free hand so
that it does not swing out of the chassis.
CAUTION:
The fan modules are short. Always support the bottom of the fan module with your free hand so that it does
not suddenly drop free from the chassis and injure you.
6. Set the fan module aside.
7. Insert the replacement fan module into the chassis by aligning it with the opening, and then sliding it into
the chassis.
8. Push firmly on the fan module cam handle so that it is seated all the way into the chassis.
The cam handle raises slightly when the fan module is completely seated.
9. Swing the cam handle up to its closed position, making sure that the cam handle release latch clicks into
the locked position.
The fan LED should be green after the fan is seated and has spun up to operational speed.
10. Align the bezel with the ball studs, and then gently push the bezel onto the ball studs.
